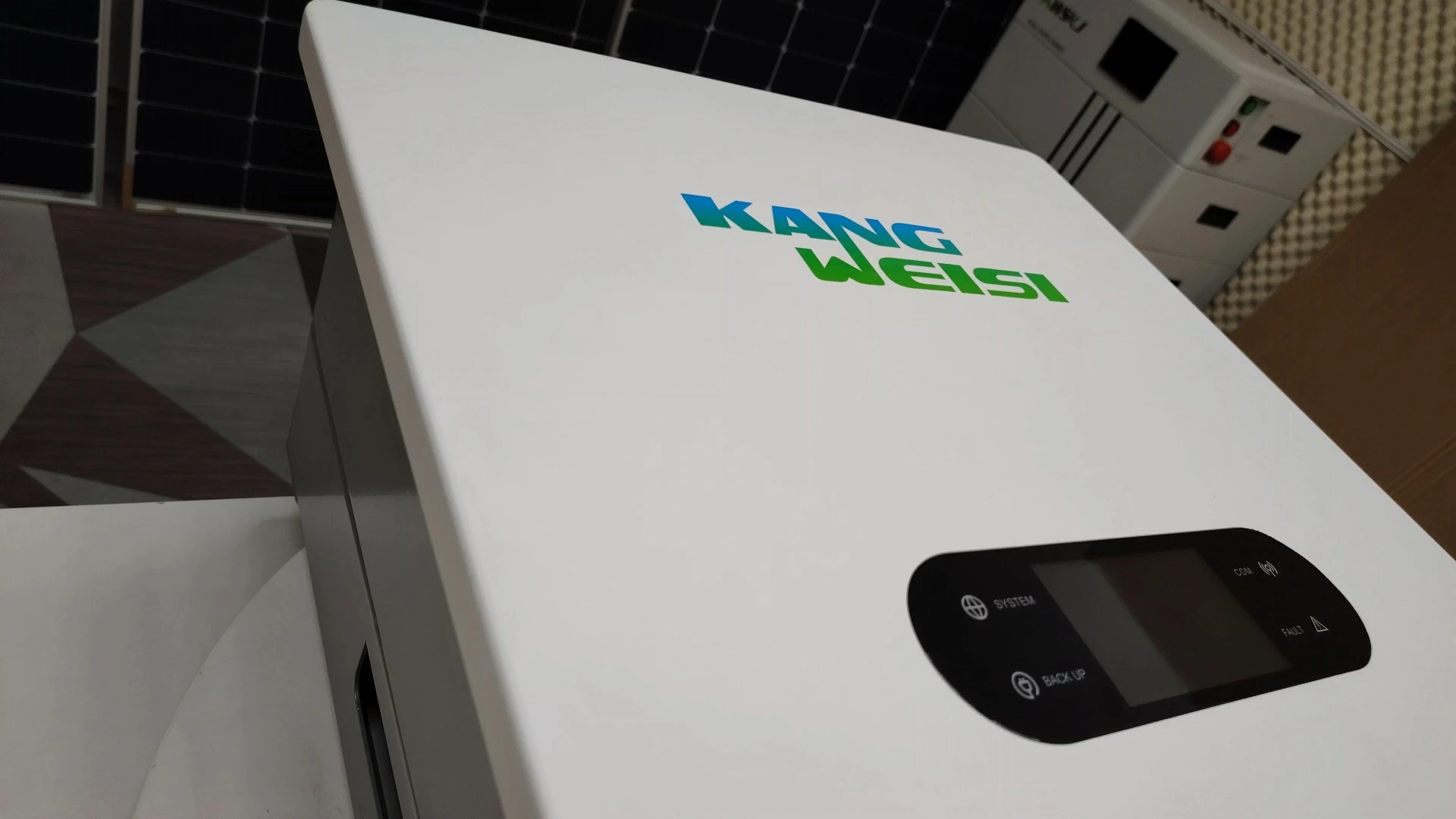

New Energy Solar Hybrid Inverter 3000W Sine Wave Inverter Multi-Function Photovoltaic Inverter 6KW
Product Parameters
| Model | KHY 3000TL-48SX | KHY 3600TL-48SX | KHY 4000TL-48SX | KHY 4600TL-48SX| | KHY 5000TL-48SX| | KHY 6000TL-48SX |
| BATTERY INPUT DATA | ||||||
| Battery Type | Lithium or lead acid battery | |||||
| Rated battery voltage(V) | 48 | |||||
| Maximum charging voltage(V) | ≤60 (Configurable) | |||||
| Maximum charge'discharge current(A) | 75 | 90 | 100 | 110 | 120 | 120 |
| PV INPUT DATA | ||||||
| Maxirum DC input power(kw) | 3.9 | 4.7 | 5.2 | 6 | 6.5 | 7.5 |
| Maximum DC input voltage(V) | 500 | |||||
| MPPT Operating voitage range(V) | 150-450 | |||||
| Starting voltage(V) | 125 | |||||
| Maximum input current(A) | 18 | 18/18 | 18/18 | 18/18 | 18/18 | 18/18 |
| MPPT number | 1 | 2 | 2 | 2 | 2 | 2 |
| AC OUTPUT PARAMETERS (ON-GRID) | ||||||
| Maximum output apparent power (VA) | 3300 | 3960 | 4400 | 5000 | 5500 | 6000 |
| Rated output voltage(V) | 230 | |||||
| Rated output frequency(Hz) | 50/60HZ | |||||
| Max output current(A) | 15 | 18 | 20 | 22 | 25 | 27 |
| Output power factor | ~1(-0.8 leading~+0.8 lagging) | |||||
| AC OUTPUT PARAMETERS(OFF-GRID) | ||||||
| Raled output apparent power(VA) | 3000 | 3600 | 4000 | 4600 | 5000 | 6000 |
| Maximum output apparent power(VA) | 6000.15sec | 7200.15sec | 8000.15sec | 9200.15sec | 10000.15sec | 10000.15sec |
| Rated output voltage(V) | 230(±2%) | |||||
| Rated output frequency(Hz) | 50/60(+0.2%) | |||||
| Max output current(A) | 14 | 16 | 18 | 21 | 23 | 27 |
| EFFICIENCY | ||||||
| Max efficiency(PV) | 97.60% | |||||
| Max efficiency(battery) | 94.50% | |||||
| Europe efficiency | 97.00% | |||||
| PROTECTION | ||||||
| PV input reverse polarity protection | Yes | |||||
| py insulation resistance detection | Yes | |||||
| Residual current detection | Yes | |||||
| Output over current protection | Yes | |||||
| Output short circuit protection | Yes | |||||
| Output over voltage protection | Yes | |||||
| BASIC DATA | ||||||
| Öperation temperature (°C) | -25~60 | |||||
| Storage temperature (°C) | -30~65 | |||||
| Relative humidity | 0-95% | |||||
| Working altitude (m) | ≥4000 | |||||
| Coaling | Air cooling | |||||
| Noise (db) | <55 | |||||
| Weight (Kg) | 20 | |||||
| Size (width x height x depth) (mm) | 427*554*198 | |||||
| Protection class | IP66 | |||||
| Topology | HF isolation(Battery side) | |||||
Product About
Product Features
Appliration Scenarios
Simple - efficient - safe - reliable
Please Contact Us If You Have Any Questions.
The products produced by the company have been distributed in more than 20 provinces and cities across the country, and have been unanimously recognized and praised by customers.
