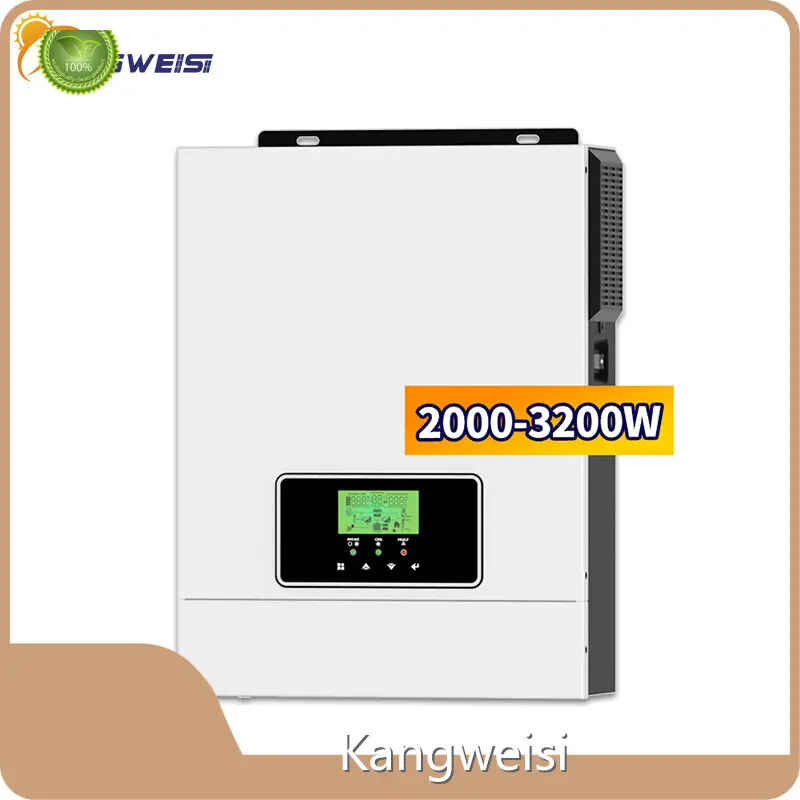

Best Off Grid Inverter Kangweisi Brand Western Union EU and US Standard

Model:
KWSKJ KZL1220S80-H/KWSKJ KZL2432S80-H
Max.Power:
2-3.2KW
Output Voltage:
EU And US Standard
Certificate:
TUV, ETL, ISO, CE
Payment:
T/T, L/C, Western Union
Inquiry

Product details of the best off grid inverter


Quick Detail

The source of raw materials: before Kangweisi best off grid inverter comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. The product is in high demand among customers in the industry for its great benefits. With bright industry prospects, this product is bound to bring benefits to customers.


Product Introduction

Next, the details of best off grid inverter are shown for you.

Product Parameters

Model

KWSKJ KZL1220S80-H

KWSKJ KZL2432S80-H

RATED POWER

2000VA/1600W

3200VA/3000W

AC Input

Voltage

230VAC

Selectable Voltage Range

170~280VAC(For Personal Computers)

90~280VAC(For Home Appliances)

Frequency Range

50 Hz/60Hz(Auto sensing)

AC OUTPUT

AC Voltage Regulation

230VAC±5%

Surge Power

4000VA

6400VA

Efficiency(Peak)PV to INV

98%

Efficiency(Peak)Battery to INV

94%

Transfer Time

10 ms (For Personal Computers);20 ms (For Home Appliances)

BATTERY

Battery Voltage

12VDC

24VDC

Floating Charge Voltage

13.5VDC

27VDC

Overcharge Protection

16VDC

33VDC

SOLAR CHARGER& AC CHARGER

Solar Charger Type

MPPT

Maximum PV Array Power

2000W

3000W

MPPTRange @ Operating Voltage

30~400VDC

Maximum PV Array Open Circuit Voltage solar

400VDC

Max Input Current

1/13A

Maximum Solar Charge Current

80A

Maximum AC Charge Current

60A

Maximum Charging Current (Solar+AC)

80A

PHYSICAL

Dimension,D*W*H(mm)

357*273*95

Carton  Dimension,DXWXH(mm)

440*340*170

Net Weight(kgs)

5

5.6

Gross Weight(kgs)

6

6.3

Communication interface

RS232/GPRS/WIFI

ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non~condensing)

Operating Temperature

-10℃~50℃

STANDARD

Compliance Safety

CE

Product Features

Pure sine wave solar inverter

Wifi&GPRS available for IOS and android

Built-in 80A MPPT solar charger

High PVinput voltage range( 30~400VDC)Built-in anti-dust kit for harsh environment

Smart battery charge design to optimize battery life

meet rich customized demands

Compatible with lithium battery

Solar energy is provided directly to the load first

Pro11-9

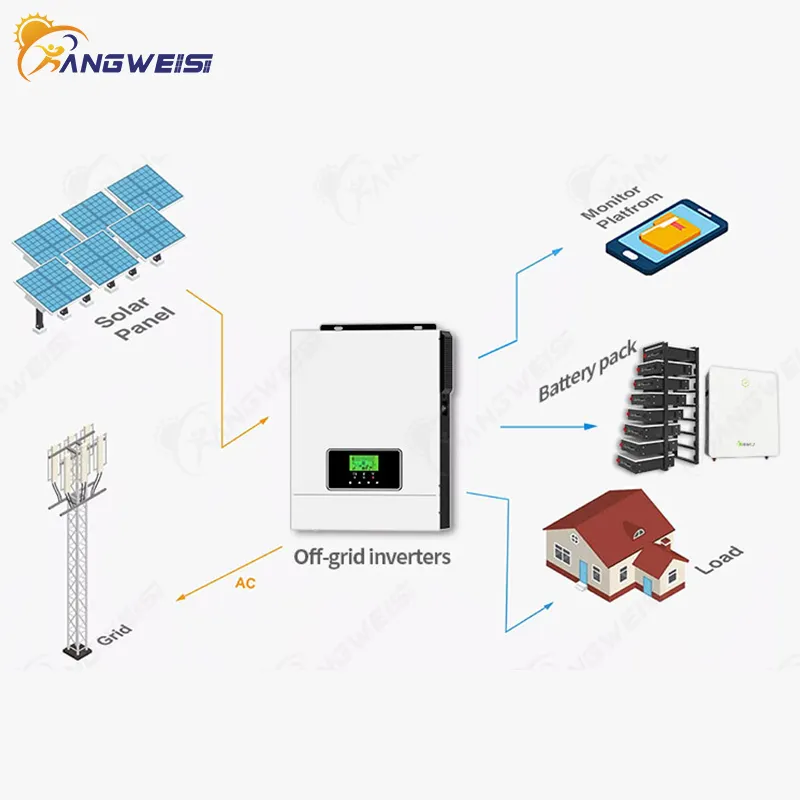

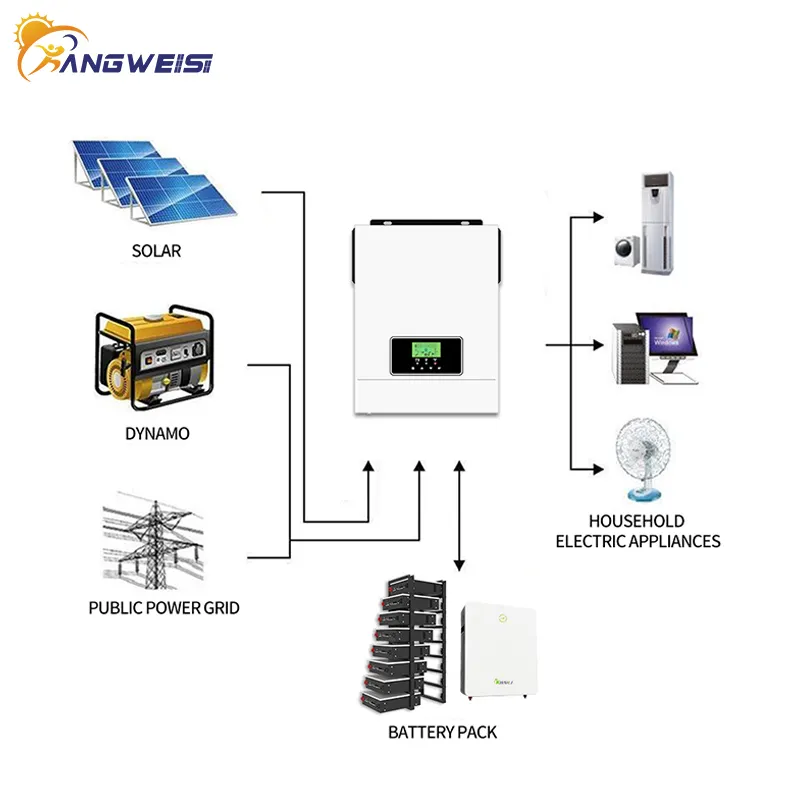

Appliration Scenarios

Simple - efficient - safe - reliable
