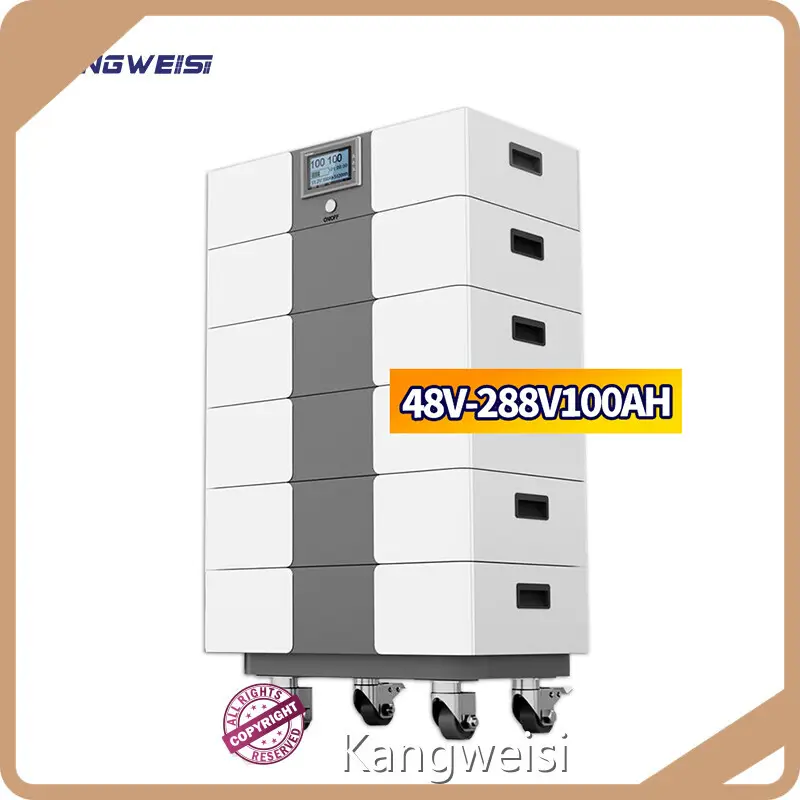

Product Parameters
Electrical Parameters (25℃) |
Rated Voltage |
48V |
96V |
144V |
192V |
240V |
288V |
Rated Capacity (Cs) |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
|
Energy |
4800Wh |
9600Wh |
14400Wh |
19200Wh |
24000Wh |
28800Wh |
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
Charge Efficiency |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
|
Discharge Efficiency |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
|
Terminal Diameter |
M8 |
M8 |
M8 |
M8 |
M8 |
M8 |
|
Internal resistance (Fully charged,25℃) |
≤50m Q |
≤50mQ |
≤50m R |
≤50m & |
≤50m 2 |
≤50m& |
|
Cycle life |
≥6000 cycles @ 0.2C 100%D.O.D |
||||||
Capacityaffected bytemperature |
40℃ |
101% |
|||||
25℃ |
100% |
||||||
0℃ |
90% |
||||||
-10℃ |
75% |
||||||
Nominal operating temperature |
25℃±3℃(77°F±5°F) |
||||||
Operatingtemperaturerange |
Discharge |
-20℃~60℃(-4°F~140°F) |
|||||
Charge |
0℃~45℃(32°F~113°F) |
||||||
Storage |
0℃~40℃(32°F~104°F) |
||||||
Water Dust Resistance |
IP50 |
||||||
Charge Voltage |
56.8V |
||||||
Standard Charge Mode(25℃±2℃,<75%RH) |
0.2C A Constant Current to 57V, then Constant Voltage 57V, until the current drops to 0.02CA, before use, rest 30 minutes |
||||||
Charge Current |
20A |
40A |
60A |
80A |
100A |
120A |
|
Maximum Charge Current |
50A |
100A |
150A |
200A |
250A |
300A |
|
Charge Cut off Voltage |
Nominal operating temperature |
||||||
Continuous Discharge Current |
100A |
160A |
240A |
320A |
400A |
480A |
|
Maximum Pulse Current |
150A(<1S) |
320A(<1S) |
480A(<1S) |
640A(<1S) |
800A( |
960A(<1S) |
|
Discharge Cut Off Voltage |
44.8V |
||||||
Communicate Protocol (optional) |
RS485/RS232/CAN |
||||||
SOC (optional) |
Screen/LED/PC Software |
||||||
Application connection |
1 string 1 parallel |
||||||
Mechanical |
Cells |
16 Strings |
Features
Strong Expansibility
Support 16 modules in parallel
Meticulous Care
Each module can be independent lymanaged and operated to ensurethe safety of the system
Easy Management
Pulley bottom,manual switch,and visual supervision interface
Stronger Compatibility
Cover all mainstream protocols andmatch most mainstream inverters1C discharge
Long Life
4 times long static and 8 consistencyscreening make the battery more durable
Safety & reliability
Nano-coating and self-healing technologyconstruct the LFP channelto add a firewall to the battery
Appliration Scenarios
Simple - efficient - safe - reliable
Company Advantages
· Creating Kangweisi lithium cell supplier requires a detailed analysis of manufacturing requirements. The program includes designing a model sketch or prototype, determining the number of reasonable operations, selecting a working method, and selecting the appropriate equipment.
· In addition to the quality in line with industry standards, the product life longer than other products.
· Customers all appreciate the smoothness and softness this product has, which significantly benefits wearers, especially those with skin allergies.
Company Features
· By cause of the accumulation of reasonable plan and advanced technology, Kangweisi has become an important lithium cell supplier production base.
· Always keeping developing the lithium cell supplier production is the core competitiveness of Kangweisi.
· Our goal is to strengthen long term customer loyalty. We promise we will try our best to fulfill our commitments and maintain effective communication with our clients. This is useful for clients to build their trust and tolerance to us.
Application of the Product
The lithium cell supplier produced by Kangweisi is widely used.
Kangweisi provides comprehensive and reasonable solutions based on customer's specific situations and needs.
