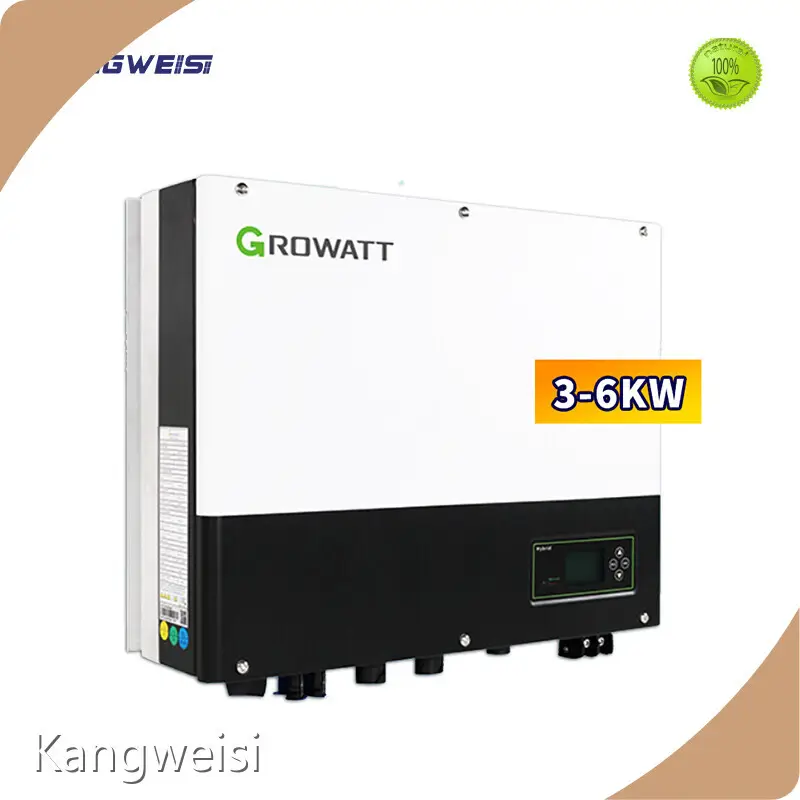

Product details of the hybrid solar inverter manufacturers
Product Introduction
Defect-free Kangweisi hybrid solar inverter manufacturers adopts high quality raw materials. All our products must be strictly tested before leaving factory. The product is widely used and has a high market value.
Product Parameters
Datasheet |
SPH 3000 |
SPH 3600 |
SPH 4000 |
SPH 4600 |
SPH 5000 |
SPH 6000 |
DC input data |
||||||
Max. recommended PV power |
6600W |
6600W |
6600W |
8000W |
8000W |
8000W |
Start voltage |
150V |
|||||
Max. PV voltage |
550V |
|||||
PV voltage range |
120V-550V |
|||||
MPPT voltage range/nominal voltage |
150V-550V /360V |
|||||
Max. input current of tracker A/B |
12A/12A |
|||||
Number of MPP trackers / stringsper MPP tracker |
2/1 |
|||||
AC Output |
||||||
Rated AC output power |
3000W |
3680W |
4000W |
4600W |
4999W |
6000W |
Max. AC apparent power |
3000VA |
3680VA |
4000VA |
4600VA |
5000VA |
6000VA |
Max. output current |
16A |
16A |
22A |
22A |
22A |
27A |
Nominal AC output voltage |
230V |
|||||
Nominal grid frequency |
50/60Hz, ±5Hz |
|||||
Power factor at rated power |
1 |
|||||
Displacement power factor |
0.8leading…0.8lagging |
|||||
THDI |
<3% |
|||||
AC output power(Backup) |
||||||
Max. output power |
3000W |
|||||
Rated AC output voltage |
230Vac |
|||||
Rated AC output frequency |
50/60Hz |
|||||
Automatic switchover time |
<0.5S |
|||||
Battery Data |
||||||
Battery voltage range |
42~59V |
|||||
Max. charging voltage |
58V |
|||||
Max charging and dischargingcurrent |
66A |
|||||
Max charging and dischargingpower |
3000W |
|||||
Battery type |
Lithium /Lead-acid |
|||||
Capacity of battery |
50-2000AH |
|||||
Efficiency |
||||||
Max. efficiency |
97.5% |
97.5% |
97.5% |
97.6% |
97.6% |
97.7% |
Euro European efficiency |
97.0% |
97.0% |
97.0% |
97.1% |
97.1% |
97.1% |
MPPT efficiency |
99.9% |
|||||
Protection devices |
||||||
DC switch |
Yes |
|||||
DC reverse polarity protection |
Yes |
|||||
Battery reverse protection |
Yes |
|||||
Output over current protection |
Yes |
|||||
Output over voltage protection |
Yes |
|||||
Ground fault monitoring |
Yes |
|||||
Grid monitoring |
Yes |
|||||
Integrated all-pole sensitive leakage |
Yes |
|||||
General Data |
||||||
Dimensions (W / H / D) |
450/560/180mm |
|||||
Weight |
27kg |
|||||
Operating temperature range |
–25°C ... +60°C |
|||||
Altitude |
2000m |
|||||
Self-Consumption |
< 3 W |
|||||
Topology(solar) |
Transformerless |
|||||
Topology(battery) |
HF transformer |
|||||
Cooling concept |
Natural |
|||||
Environmental Protection Rating |
IP65 |
|||||
Relative humidity |
100% |
|||||
DC connection |
MC4/H4(Optional) |
|||||
AC connection |
Connector |
|||||
Interfaces: RS232/RS485/CAN/USB |
Yes |
|||||
Monitor : RF/WIFI/GPRS |
Optional |
|||||
Display |
LCD+LED |
|||||
Warranty: 5 years / 10 years |
Yes /Optional |
Features
Functional Leadership
- Uninterruptible power supply, switching within 10ms
- Suitable for new and retrofitted PV systems
Efficient power generation
- DC overmatching 2.0 times
- Dual MPPT tracking
System Flexibility
- Compatible with lead-acid and lithium batteries
- Quick access to VPP platform
- Intelligent load control via dry contact
Appliration Scenarios
Simple - efficient - safe - reliable
