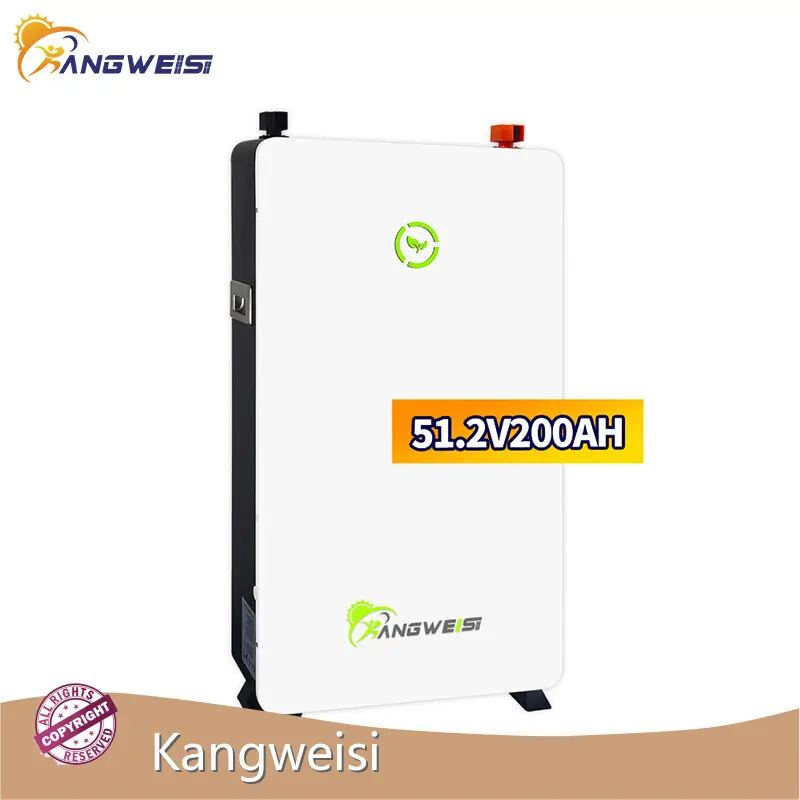

Hot Li Ion Battery Manufacturers LiFeP04(LFP) KWS Wall-mounted Series Kangweisi Brand
Product details of the li ion battery manufacturers
Product Introduction
Kangweisi li ion battery manufacturers is developed by our professionals using optimum grade material. The quality of this product will be strictly inspected before loading. It has received more and better comments from customers.
Product Parameters
|
Model |
KLA10240 |
|
Battery Type |
LiFePO4 |
|
Nominal Battery Energy |
10 .24 kWh |
|
Nominal Capacity |
200Ah |
|
Nominal Voltage |
51.2V |
|
Charging Voltage. |
57.6V |
|
Discha rging End-of Voltage. |
44.8V |
|
Recommended C Rate |
0.5C |
|
Recommended Charge/Discharge Current |
50A |
|
Max.Charge/Discharge Current |
100A |
|
Peak Power Charge/Discharge Current |
200A ( 15s ) |
|
Depth of Discharge |
90% |
|
Net Weight |
90kg |
|
Dimension(W*D*H) |
504*175*889mm |
|
Charging Temp. Range |
0~ 60℃ |
|
Discharging Temp.Range |
-20~60℃ |
|
Communication |
CAN /RS485 /RS23 2 |
|
Warranty |
10 Years |
|
Warranty Document Suppl ied |
Yes |
|
Calendar Life" |
≥6000 Cycles |
|
Protection Level |
IP51 |
|
Expansion |
Up to15 units in parallel |
|
Color |
White+B lack |
|
Alarms |
Overcharge/Overdischarge/Overcurrent/ Overtemperature/Short Circuit |
|
Pros |
Can be used in both off-grid and hybrid se tups, compact des ign |
|
Compatible Inverters |
Growatt/Deye/INVT/ Goodwe/Solis/Megarevo etc. |
|
Certification & Safety Standard |
CE/UN38 .3, MSDS undergo ing |
Product Features
Expandable
15 modules in parallel withcapacity up to 76.8kWh
High Safety
Cell level monitoringand balancing
Wide Temperature RangeLarger Capacity BaseRange of-20~60°C
5.12kWh per unit
Various Installation Options
Floor-standing, wal-mounted and stacked
Wide CompatibilityMatching with leadinginverter brands
Appliration Scenarios
Simple - efficient - safe - reliable
