Hybrid Off Grid Solar Inverter 3.6-5.5KW EU and US Standard Hybrid Off Grid Solar Inverter Kangweisi Brand
Product details of the hybrid off grid solar inverter
Product Overview
The exterior and internal structure of Kangweisi hybrid off grid solar inverter is completed by professional engineers. The product is in compliant with the strictest quality standards thanks to the implementation of a complete quality management system. hybrid off grid solar inverter can be applied to different industries, fields and scenarios. Supplying service for customers will also contribute to the development of Kangweisi.
Product Description
Compared with other products in the same category, Kangweisi's hybrid off grid solar inverter has the following advantages.
KWSKJ Grid-tied Solar System Configuration
|
Model |
KWSKJ KZL2435S100-H |
KWSKJ KZL4855S100-H |
||||
|
RATED |
POWER |
3500VA/3500W |
5500VA/5500W |
|||
|
Input |
||||||
|
Voltage |
230VAC |
|||||
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
|||||
|
90~280VAC(For Home Appliances) |
||||||
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
|||||
|
OUTPUT |
||||||
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|||||
|
Surge Power |
7000VA |
11000VA |
||||
|
Efficiency(Peak)PV to INV |
97% |
|||||
|
Efficiency(Peak)Battery to INV |
94% |
|||||
|
Transfer Time |
10 ms(For Personal Computers);20 ms (For Home Appliances) |
|||||
|
BATTERY & AC CHARGER |
||||||
|
Battery Voltage |
24VDC |
48VDC |
||||
|
Floating Charge Voltage |
27VDC |
54VDC |
||||
|
Overcharge Protection |
33VDC |
63VDC |
||||
|
Maximum Charge Current |
80A |
80A |
||||
|
SOLAR CHARGER |
||||||
|
Maximum PV Array Power |
5000W 6000W |
|||||
|
MPPT Range @ Operating Voltage |
120~450VDC |
|||||
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|||||
|
Maximum Charging Current |
100A 100A |
|||||
|
Maximum Efficiency |
98% |
|||||
|
PHYSICAL |
||||||
|
Dimension,D*W*H(mm) |
440*310*110 |
|||||
|
Carton Dimension,DXWXH(mm) |
590*390*210 |
|||||
|
Net Weight(kgs) |
8.5 |
9.5 |
||||
|
Gross Weight(kgs ) |
9.5 10.5 |
|||||
|
Communication interface |
RS232/GPRS/WIFI |
|||||
|
ENVIRONMENT |
||||||
|
Humidity |
5% to 95% Relative Humidity(Non~condensing) |
|||||
|
Operating Temperature |
-10℃~50℃ |
|||||
|
STANDARD |
||||||
|
Compliance Safety |
CE |
|||||
Product Features
Pure sine wave solar inverterOutput power factor 1.0
Wifi&GPRS available for IOS and android
lnverter can run without battery
Built-in 100A MPPT solar charger
High PV input voltage range(120~450VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life

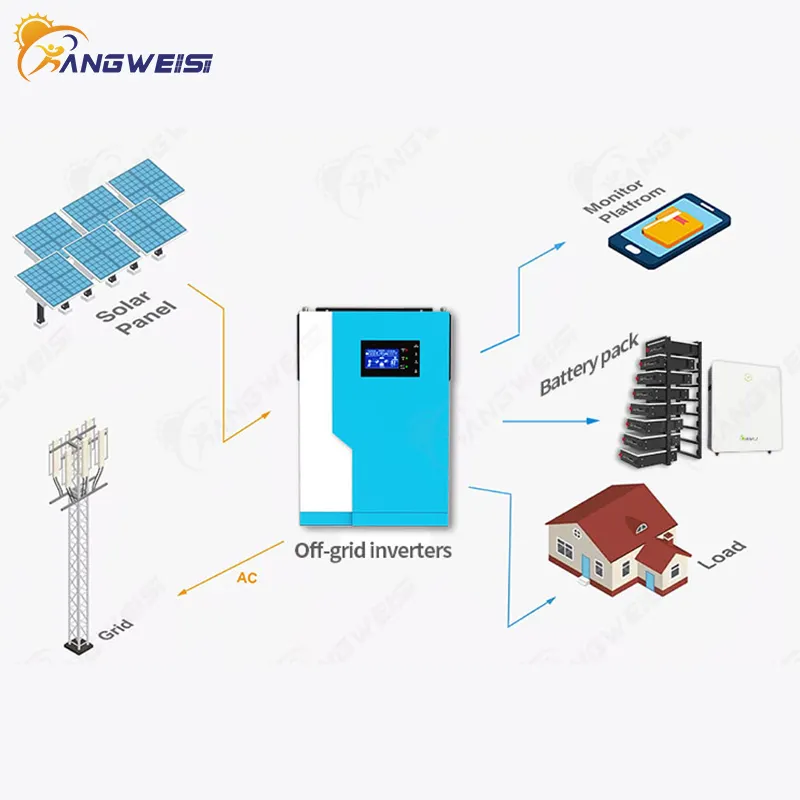

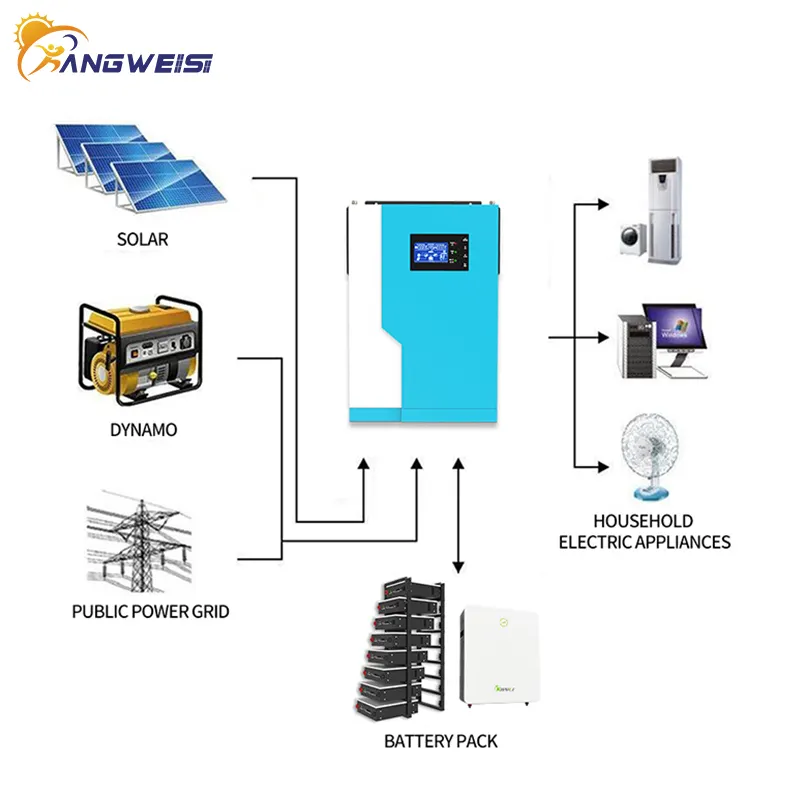

Appliration Scenarios
Simple - efficient - safe - reliable
Company Introduction
Shenzhen Kangweisi Technology Co., Ltd. is a production and processing company that specializes in the business of We promise choosing Kangweisi is equal to choosing quality and efficient services. Our products are of guaranteed quality and tight package. Welcome customers with needs to contact us!
