Product details of the 24 volt flexible solar panels
Quick Detail
The high-performance Kangweisi 24 volt flexible solar panels is made with superior materials. Pure materials ensure the durability of 24 volt flexible solar panels. Kangweisi's 24 volt flexible solar panels has a wide range of applications. The product has been widely appreciated by the people around the world.
Product Information
Compared with other products in the same category, 24 volt flexible solar panels produced by Kangweisi has the following advantages.
KWSKJ Grid-tied Solar System Configuration
|
Products Models |
Power |
Vmp/V |
Imp/A |
Voc/V |
ISC/V |
Size mm |
|
TY-50 |
50W |
18±0.1V |
2.7A±0.5A |
21.6V±0.8V |
3.14A±0.5A |
560*540*2mm |
|
TY-100 |
100W |
18±0.1V |
5.5A±0.5A |
21.6V±0.8V |
6.04A±0.5A |
1030*520*2mm |
|
TY-150 |
150W |
18±0.1V |
8.3A±0.5A |
21.6V±0.8V |
9.14A±0.5A |
1130*670*2mm |
|
TY-200 |
200W |
18±0.1V |
11A±0.5A |
21.6V±0.8V |
11.74A±0.5A |
1510*670*2mm |
|
TY-300 |
300W |
18±0.1V |
16.6A±0.5A |
21.6V±0.8V |
17.14A±0.5A |
1520*1000*2mm |
|
TY-400 |
400W |
18±0.1V |
22.2A±0.5A |
21.6V±0.8V |
22.98A±0.5A |
2000*1000*2mm |
|
TY-450 |
450W |
36±0.1V |
12.5±0.5A |
43.2±0.8V |
13.54±0.5A |
2080*1040*2mm |
|
TY-520 |
520W |
42.3V±0.1V |
12.31±0.5A |
49.5±0.8V |
13.56±0.5A |
2246*1197*2mm |
|
PET and ETFE Surface for choosing |
||||||
|
Welcome to customize your power and sizes!!! |
||||||
Product Features

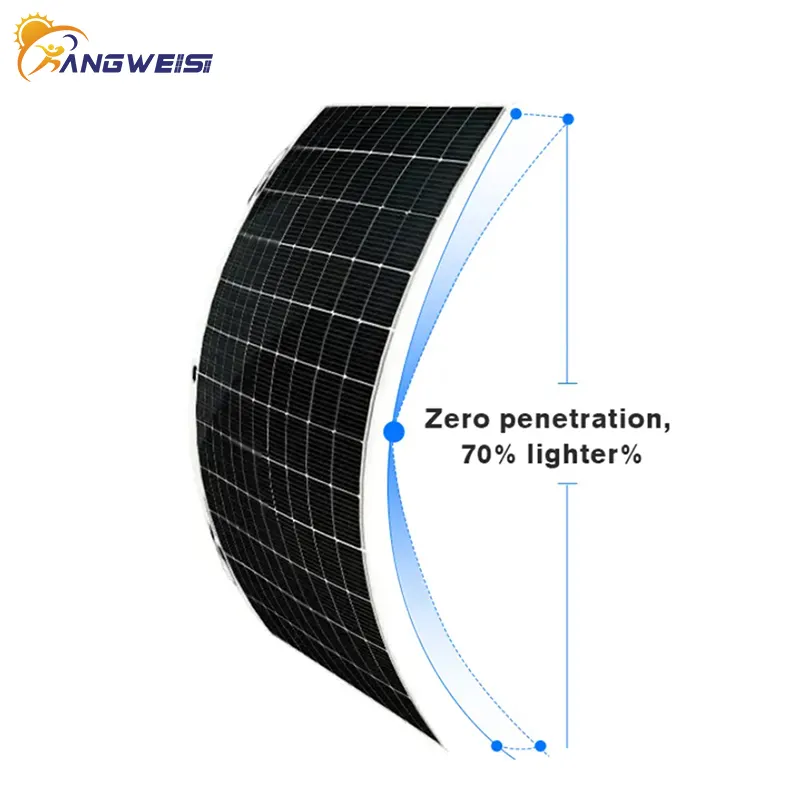

Ultra-light: By replacing the glass and optimising the bezel, the module weighs only 7.7 kg, a weight reduction of up to 70% compared to conventional glass modules.
Quick installation: Eliminates the need for a traditional racking system through "Quick-bonding" installation technology, saving installation costs.
Safety: No need to root through the roof to ensure watertightness and safety.
Durability: eArc is the first glassless module to pass the same durability tests as conventional glass modules. This includes IEC61215:2016, IEC61730:2016 and UL61730, as well as PID, salt spray level8 testing.

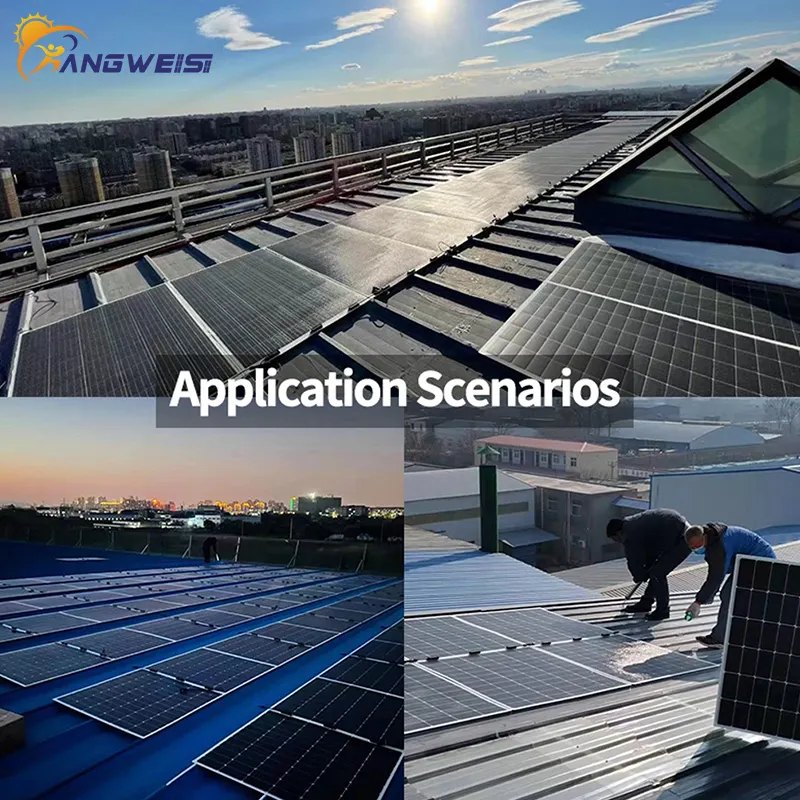

Appliration Scenarios
Simple - efficient - safe - reliable
