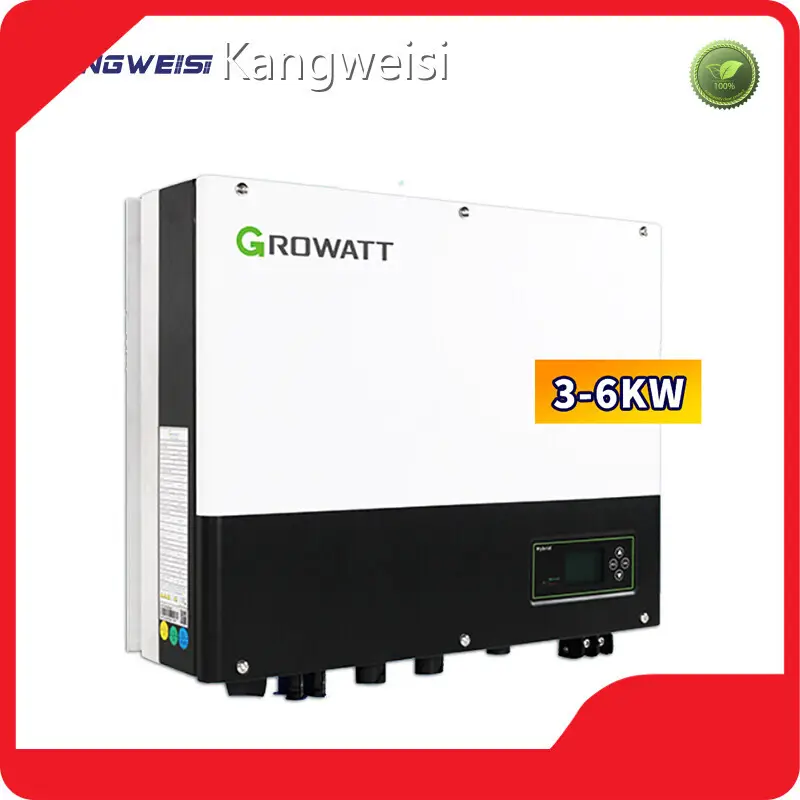

Kangweisi Brand Hybrid Solar Inverters FactoryEU Tandard Hybrid-Grid

Model:
SPH 3000-6000TL BL-UP
Type:
Hybrid-Grid
Output Voltage:
EU tandard
Certificate:
TUV, ETL, ISO, CE
Payment:
T/T, L/C, Western Union
Inquiry

Product details of the hybrid solar inverters


Quick Overview

The design of hybrid solar inverters turns out to be effective and influencing. Its quality is effectively ensured by the strict controlling quality check process. Kangweisi's hybrid solar inverters is widely used in the industry and is widely recognized by customers. The offered product can be vastly used in the industry.


Product Information

Kangweisi pays great attention to the details of hybrid solar inverters. The following will show you one by one.

Product Parameters

Datasheet

SPH 3000

SPH 3600

SPH 4000

SPH 4600

SPH 5000

SPH 6000

DC input data

Max. recommended PV power

6600W

6600W

6600W

8000W

8000W

8000W

Start voltage

150V

Max. PV voltage

550V

PV voltage range

120V-550V

MPPT voltage range/nominal voltage

150V-550V /360V

Max. input current of tracker A/B

12A/12A

Number of MPP trackers / stringsper MPP tracker

2/1

AC Output

Rated AC output power

3000W

3680W

4000W

4600W

4999W

6000W

Max. AC apparent power

3000VA

3680VA

4000VA

4600VA

5000VA

6000VA

Max. output current

16A

16A

22A

22A

22A

27A

Nominal AC output voltage

230V

Nominal grid frequency

50/60Hz, ±5Hz

Power factor at rated power

1

Displacement power factor

0.8leading…0.8lagging

THDI

<3%

AC output power(Backup)

Max. output power

3000W

Rated AC output voltage

230Vac

Rated AC output frequency

50/60Hz

Automatic switchover time

<0.5S

Battery Data

Battery voltage range

42~59V

Max. charging voltage

58V

Max charging and dischargingcurrent

66A

Max charging and dischargingpower

3000W

Battery type

Lithium /Lead-acid

Capacity of battery

50-2000AH

Efficiency

Max. efficiency

97.5%

97.5%

97.5%

97.6%

97.6%

97.7%

Euro European efficiency

97.0%

97.0%

97.0%

97.1%

97.1%

97.1%

MPPT efficiency

99.9%

Protection devices

DC switch

Yes

DC reverse polarity protection

Yes

Battery reverse protection

Yes

Output over current protection

Yes

Output over voltage protection

Yes

Ground fault monitoring

Yes

Grid monitoring

Yes

Integrated all-pole sensitive leakage

Yes

General Data

Dimensions (W / H / D)

450/560/180mm

Weight

27kg

Operating temperature range

–25°C ... +60°C

Altitude

2000m

Self-Consumption

< 3 W

Topology(solar)

Transformerless

Topology(battery)

HF transformer

Cooling concept

Natural

Environmental Protection Rating

IP65

Relative humidity

100%

DC connection

MC4/H4(Optional)

AC connection

Connector

Interfaces: RS232/RS485/CAN/USB

Yes

Monitor : RF/WIFI/GPRS

Optional

Display

LCD+LED

Warranty: 5 years / 10 years

Yes /Optional

Features

Functional Leadership

- Uninterruptible power supply, switching within 10ms

- Suitable for new and retrofitted PV systems

Efficient power generation

- DC overmatching 2.0 times

- Dual MPPT tracking

System Flexibility

- Compatible with lead-acid and lithium batteries

- Quick access to VPP platform

- Intelligent load control via dry contact

Pro25-9

Appliration Scenarios

Simple - efficient - safe - reliable
