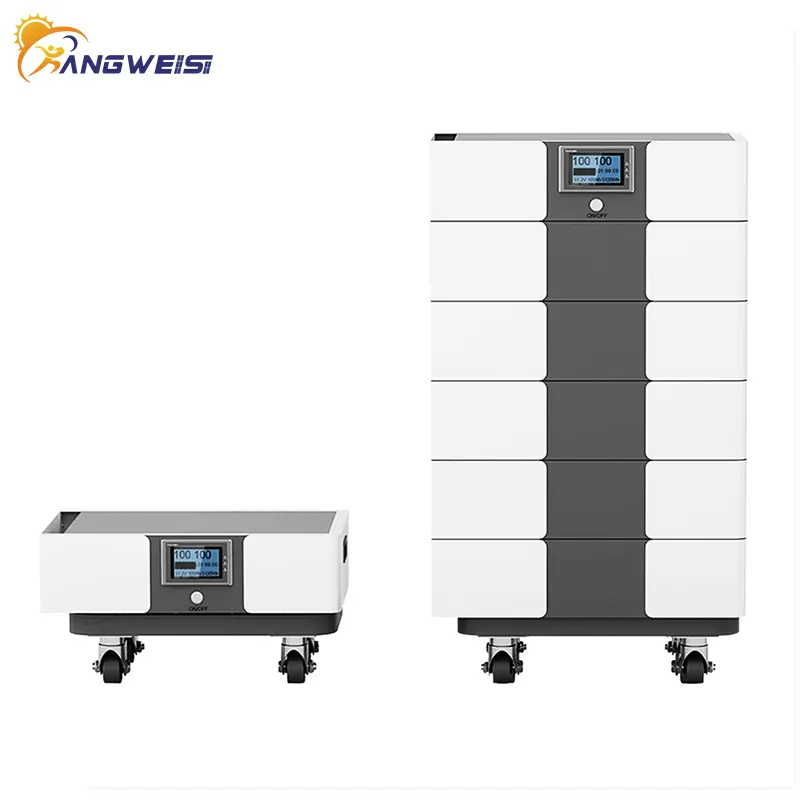

Kangweisi Brand Lithium Ion Battery Manufacturers KWS High Voltage Series Factory
Company Advantages
· Kangweisi lithium ion battery manufacturers has been strictly monitored during production. It has been inspected with regards to cracks, discoloration, structural safety, slip resistance, and biomechanical comfort.
· Kangweisi is known as the top manufacturer in producing the high quality product.
· lithium ion battery manufacturers has passed all relative quality certificates.
Product Parameters
|
Electrical Parameters (25℃) |
Rated Voltage |
48V |
96V |
144V |
192V |
240V |
288V |
|
Rated Capacity (Cs) |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
|
|
Energy |
4800Wh |
9600Wh |
14400Wh |
19200Wh |
24000Wh |
28800Wh |
|
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
|
Charge Efficiency |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
|
|
Discharge Efficiency |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
|
|
Terminal Diameter |
M8 |
M8 |
M8 |
M8 |
M8 |
M8 |
|
|
Internal resistance (Fully charged,25℃) |
≤50m Q |
≤50mQ |
≤50m R |
≤50m & |
≤50m 2 |
≤50m& |
|
|
Cycle life |
≥6000 cycles @ 0.2C 100%D.O.D |
||||||
|
Capacityaffected bytemperature |
40℃ |
101% |
|||||
|
25℃ |
100% |
||||||
|
0℃ |
90% |
||||||
|
-10℃ |
75% |
||||||
|
Nominal operating temperature |
25℃±3℃(77°F±5°F) |
||||||
|
Operatingtemperaturerange |
Discharge |
-20℃~60℃(-4°F～140°F) |
|||||
|
Charge |
0℃~45℃(32°F～113°F) |
||||||
|
Storage |
0℃~40℃(32°F～104°F) |
||||||
|
Water Dust Resistance |
IP50 |
||||||
|
Charge Voltage |
56.8V |
||||||
|
Standard Charge Mode(25℃±2℃,<75%RH) |
0.2C A Constant Current to 57V, then Constant Voltage 57V, until the current drops to 0.02CA, before use, rest 30 minutes |
||||||
|
Charge Current |
20A |
40A |
60A |
80A |
100A |
120A |
|
|
Maximum Charge Current |
50A |
100A |
150A |
200A |
250A |
300A |
|
|
Charge Cut off Voltage |
Nominal operating temperature |
||||||
|
Continuous Discharge Current |
100A |
160A |
240A |
320A |
400A |
480A |
|
|
Maximum Pulse Current |
150A(<1S) |
320A(<1S) |
480A(<1S) |
640A(<1S) |
800A( |
960A(<1S) |
|
|
Discharge Cut Off Voltage |
44.8V |
||||||
|
Communicate Protocol (optional) |
RS485/RS232/CAN |
||||||
|
SOC (optional) |
Screen/LED/PC Software |
||||||
|
Application connection |
1 string 1 parallel |
||||||
|
Mechanical |
Cells |
16 Strings |
|||||
Features
Strong Expansibility

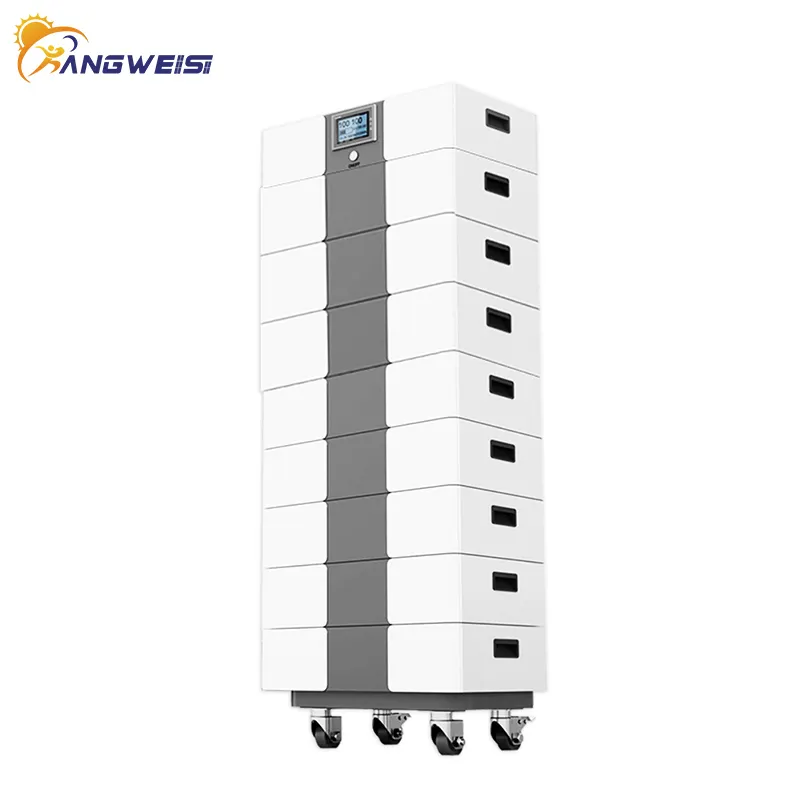

Support 16 modules in parallel
Meticulous Care
Each module can be independent lymanaged and operated to ensurethe safety of the system
Easy Management
Pulley bottom,manual switch,and visual supervision interface
Stronger Compatibility
Cover all mainstream protocols andmatch most mainstream inverters1C discharge
Long Life
4 times long static and 8 consistencyscreening make the battery more durable
Safety & reliability
Nano-coating and self-healing technologyconstruct the LFP channelto add a firewall to the battery

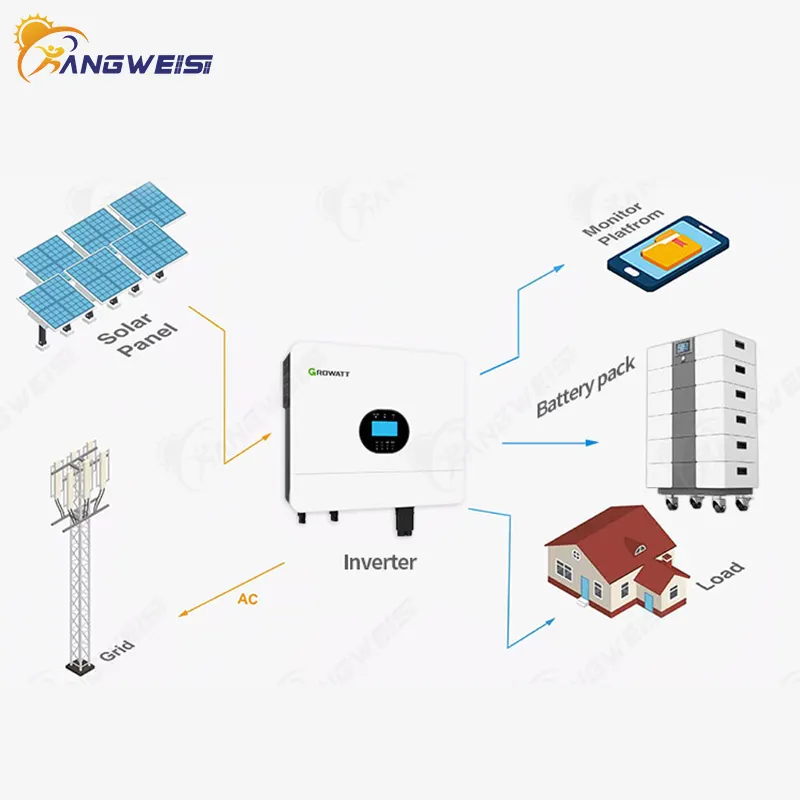

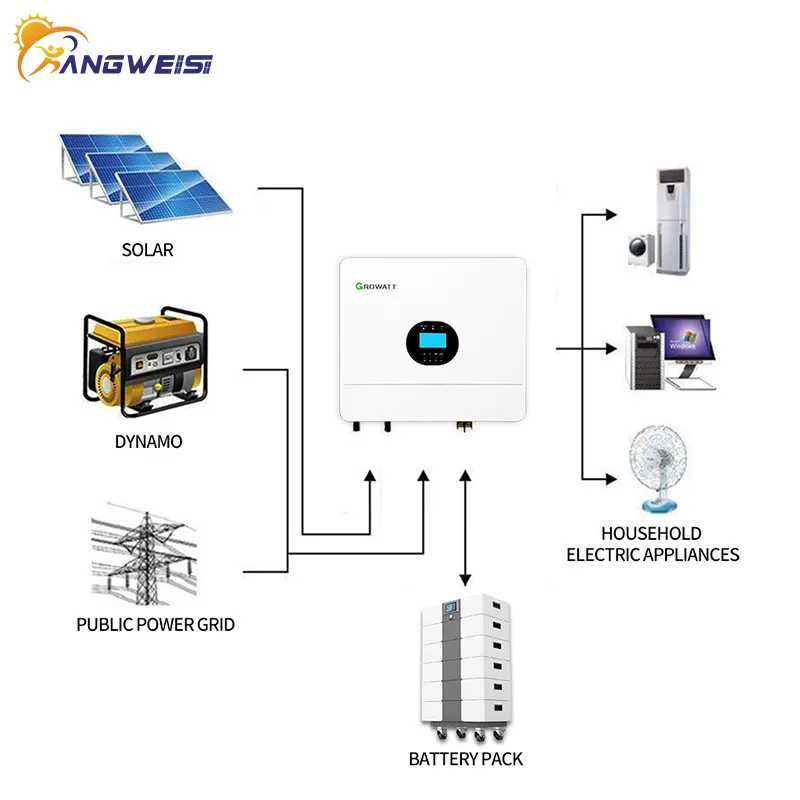

Appliration Scenarios
Simple - efficient - safe - reliable
Company Features
· Shenzhen Kangweisi Technology Co., Ltd. is a technologically advanced enterprise which mainly produces lithium ion battery manufacturers.
· That Shenzhen Kangweisi Technology Co., Ltd. utilizes advanced technology guarantees a better quality of lithium ion battery manufacturers. The utilization of new technology plays an important role in the production of lithium ion battery manufacturers. With years of experience, Kangweisi is specialized in manufacturing high-quality lithium ion battery manufacturers.
· We strive to be at the forefront, provide the highest quality products at competitive prices, and adhere to delivery schedules. Inquiry!
Product Details
More detailed information about lithium ion battery manufacturers is provided for you as follows.
Application of the Product
lithium ion battery manufacturers of Kangweisi can be used in different industries to meet the needs of customers in different fields.
We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
Product Comparison
Compared with similar products, Kangweisi's lithium ion battery manufacturers has the following advantages.
Enterprise Advantages
Based on the implementation of advanced talent reserve strategy, Kangweisi introduces a large number of outstanding technical and management talents. They contribute to our development.
Our company solves the worries of customers with scientific and modern management and excellent after-sales service system
Our company will adhere to the 'integrity-based, steady development' as our purpose, and 'innovation, hard work, pragmatism, dedication' as the core value. We constantly keep up with the times and explore innovation. Our commitment is to become a key demonstration enterprise with industry influence.
Since the establishment in Kangweisi has been continuously improving the technology and product quality. Now we gain industry recognition with high-quality products.
Based on the domestic market, Kangweisi is actively exploring foreign markets.
