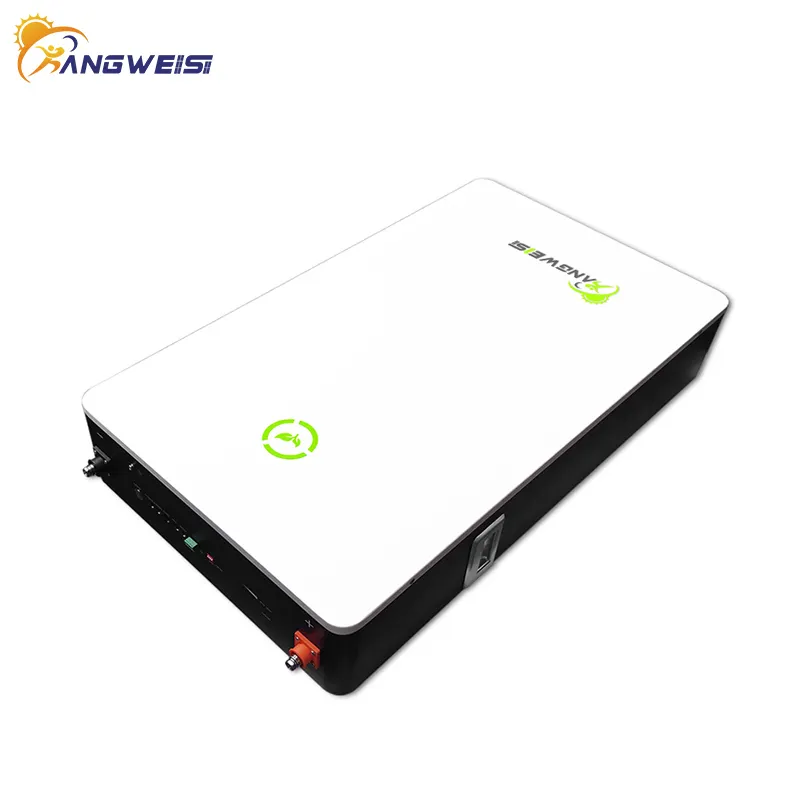

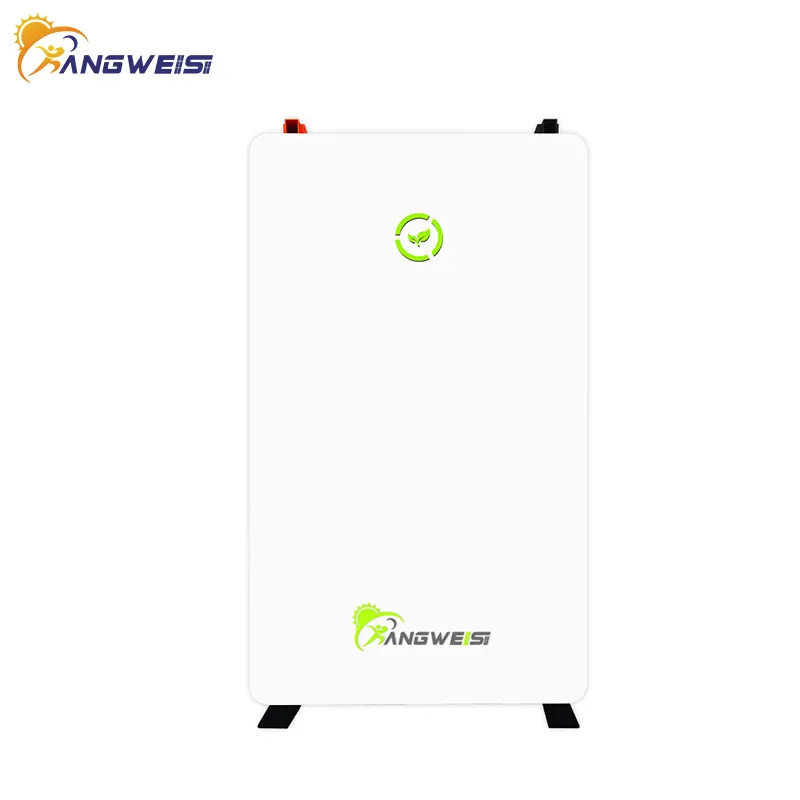

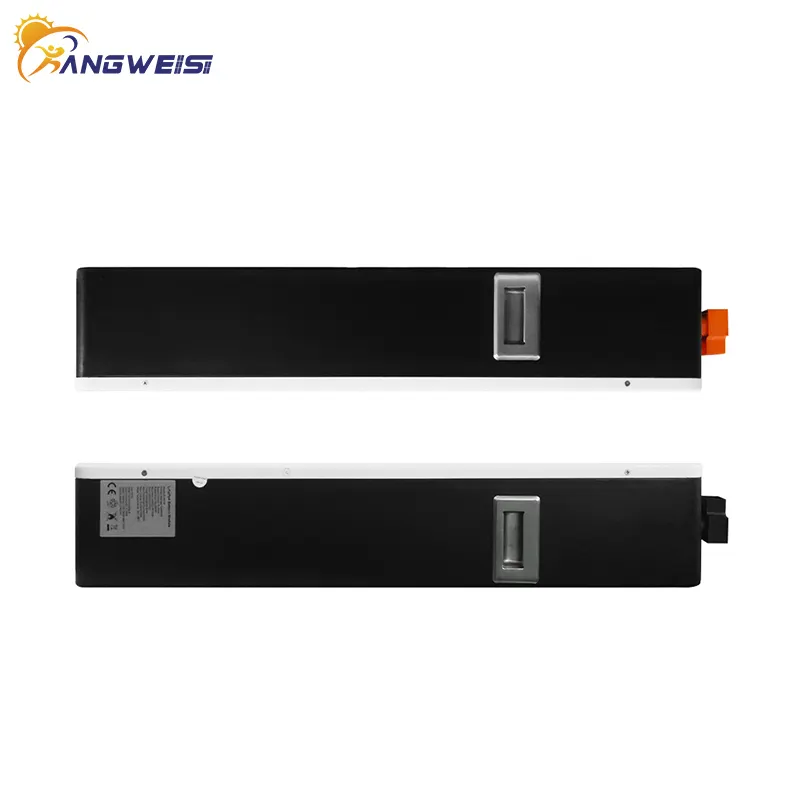

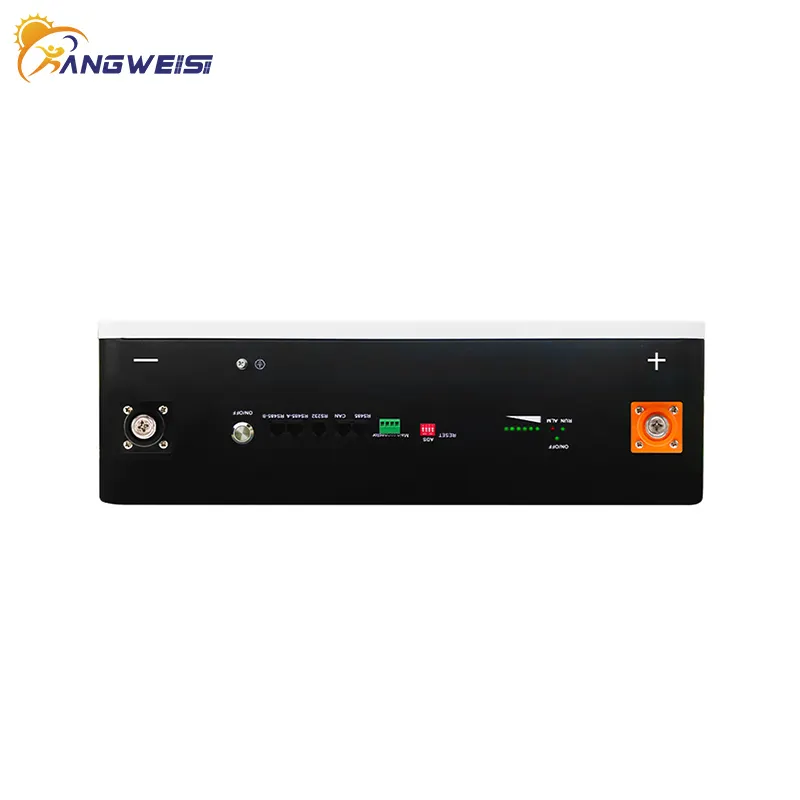

Kangweisi Brand Lithium Ion Battery Suppliers Factory >6000. 25°C

Model:
KWS Wall-mounted Series
Battery Type:
LiFeP04(LFP)
Nominal Voltage(V):
51.2V
Cycle Life:
>6000. 25°C
Inquiry
Send your inquiry

Product details of the lithium ion battery suppliers


Quick Detail

Each production phase of Kangweisi lithium ion battery suppliers is strictly supervised. This product is unsurpassable in terms of quality and performance. The lithium ion battery suppliers produced by our company is suitable for various occasions in industry. Shenzhen Kangweisi Technology Co., Ltd. is leading company in the industry of lithium ion battery suppliers and famous for the high quality.


Product Description

Next, the details of lithium ion battery suppliers are shown for you.

Product Parameters

Model

KLA10240

Battery Type

LiFePO4

Nominal Battery Energy

10 .24 kWh

Nominal Capacity

200Ah

Nominal Voltage

51.2V

Charging Voltage.

57.6V

Discha rging End-of Voltage.

44.8V

Recommended  C  Rate

0.5C

Recommended Charge/Discharge Current

50A

Max.Charge/Discharge Current

100A

Peak Power Charge/Discharge Current

200A ( 15s )

Depth of Discharge

90%

Net Weight

90kg

Dimension(W*D*H)

504*175*889mm

Charging Temp. Range

0~ 60℃

Discharging  Temp.Range

-20~60℃

Communication

CAN /RS485 /RS23 2

Warranty

10  Years

Warranty Document Suppl ied

Yes

Calendar Life"

≥6000 Cycles

Protection Level

IP51

Expansion

Up to15 units in parallel

Color

White+B lack

Alarms

Overcharge/Overdischarge/Overcurrent/ Overtemperature/Short Circuit

Pros

Can be used in both off-grid and hybrid se tups, compact des ign

Compatible Inverters

Growatt/Deye/INVT/ Goodwe/Solis/Megarevo   etc.

Certification & Safety Standard

CE/UN38 .3,  MSDS undergo ing

Product Features

Expandable

15 modules in parallel withcapacity up to 76.8kWh

High Safety

Cell level monitoringand balancing

Wide Temperature RangeLarger Capacity BaseRange of-20~60°C

5.12kWh per unit

Various Installation Options

Floor-standing, wal-mounted and stacked

Wide CompatibilityMatching with leadinginverter brands

Pro31-8

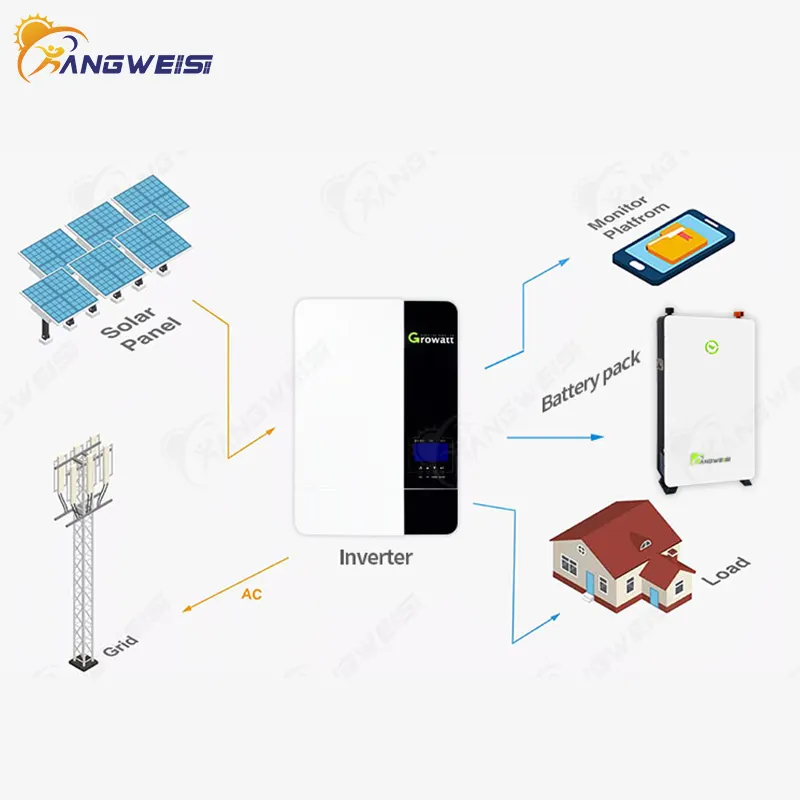

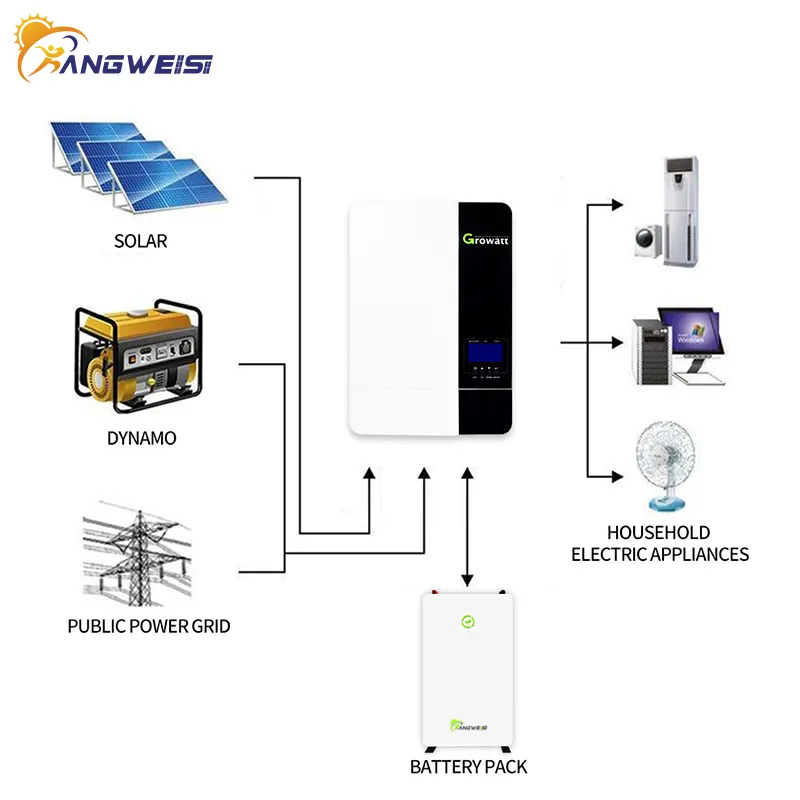

Appliration Scenarios
