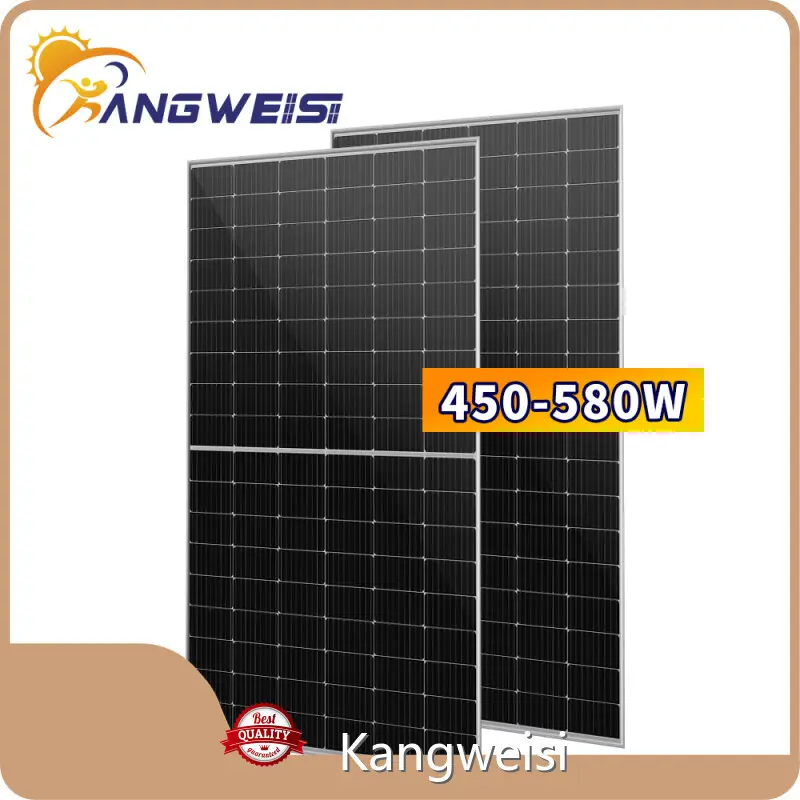

Kangweisi Brand Monocrystalline Solar CellEU and US Standard ETL
Product details of the monocrystalline solar cell
Product Introduction
The production of Kangweisi monocrystalline solar cell adopts advanced technology and latest machines & equipment. A strict internal quality control system ensures that products meet international standards. This product is made available in a number of specifications as per the information laid down by our clients.
Product Parameters
|
Maximum Power(Pmax) |
520W |
525W |
530W |
|
Open-circuit Voltage (Voc) |
49.0V |
49.2V |
49.4V |
|
Maximum Power Voltage(Vmp) |
41.2V |
41.4V |
41.6V |
|
Short-circuit Current (Isc) |
13.42A |
13.48A |
13.54A |
|
Maximum Power Current (Imp) |
12.62A |
12.68A |
12.74A |
|
Solar Panel Efficiency |
20.12% |
20.31% |
20.51% |
|
Power Tolerance |
0~+5W |
||
|
Standard Test Environment |
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 |
||
|
Maximum Power(Pmax) |
535W |
540W |
545W |
550W |
|
Open-circuit Voltage (Voc) |
49.6V |
49.8V |
50.0V |
50.2V |
|
Maximum Power Voltage(Vmp) |
41.8V |
42.0V |
42.2V |
42.4V |
|
Short-circuit Current (Isc) |
13.60A |
13.66A |
13.72A |
13.78A |
|
Maximum Power Current (Imp) |
12.80A |
12.86A |
12.91A |
12.97A |
|
Solar Panel Efficiency |
20.70% |
20.89% |
21.09% |
21.28% |
|
Power Tolerance |
0~+5W |
|||
|
Standard Test Environment |
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 |
|||
Product Features
Higher DurabilityThe
Multi-busbar design can decrease therisk of the cell micro- cracks and fingers broken.
PID Resistant
Tested in accordance to the standard IEC 62804our PV modules have demonstrated resistanceagainst PID (Potential Induced Degradation).which translates to security for your investment.
High Power Density
High conversion efficiency and more power outputpersquare meterby lower series resistance andimproved light harvesting.
Bigger Cells with better performance
A slight increase of the size of our cells, Booststhe performance of the newest modules by sixpercent on average.
Appliration Scenarios
Simple - efficient - safe - reliable
