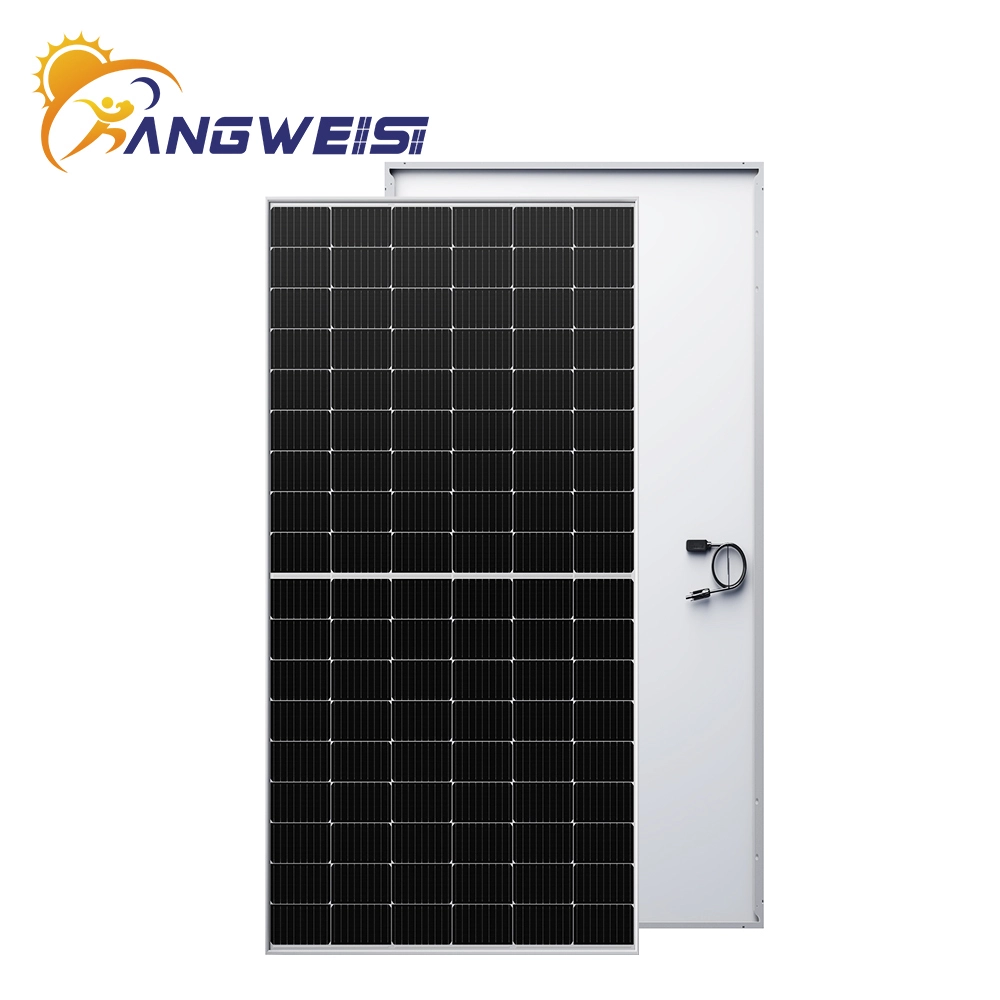

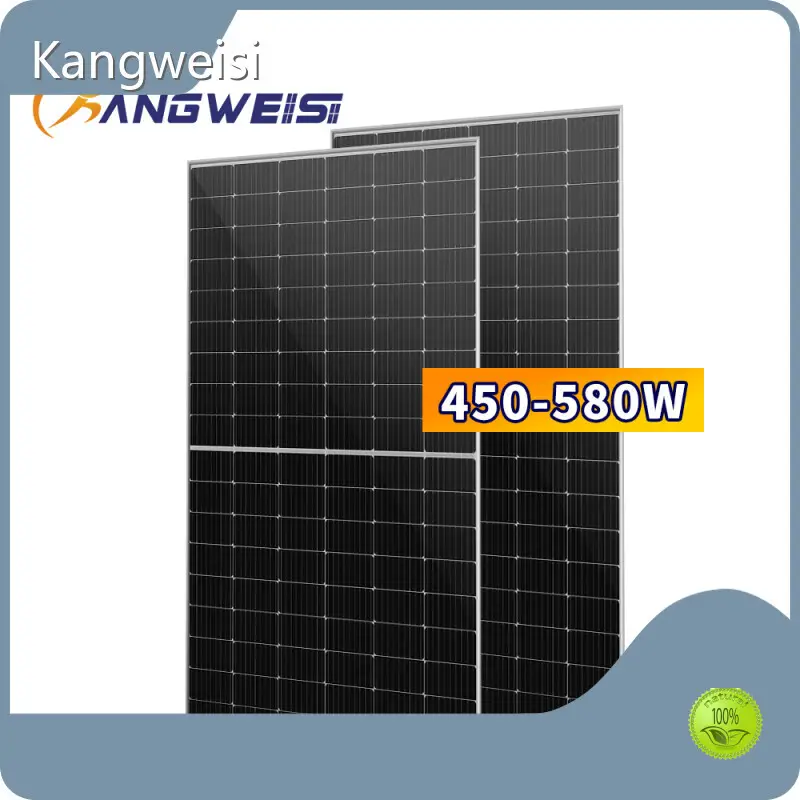

Kangweisi Brand Monocrystalline Solar Panel Suppliers 144(6*24) EU and US Standard Western Union Factory

Type:
Mono-Facial 182mm
Number Of Cells:
144(6*24)
Max.Power:
510-560W
Output Voltage:
EU And US Standard
Payment:
T/T, L/C, Western Union
Inquiry
Send your inquiry

Product Parameters

Maximum Power(Pmax)

520W

525W

530W

Open-circuit Voltage (Voc)

49.0V

49.2V

49.4V

Maximum Power Voltage(Vmp)

41.2V

41.4V

41.6V

Short-circuit Current (Isc)

13.42A

13.48A

13.54A

Maximum Power Current (Imp)

12.62A

12.68A

12.74A

Solar Panel Efficiency

20.12%

20.31%

20.51%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

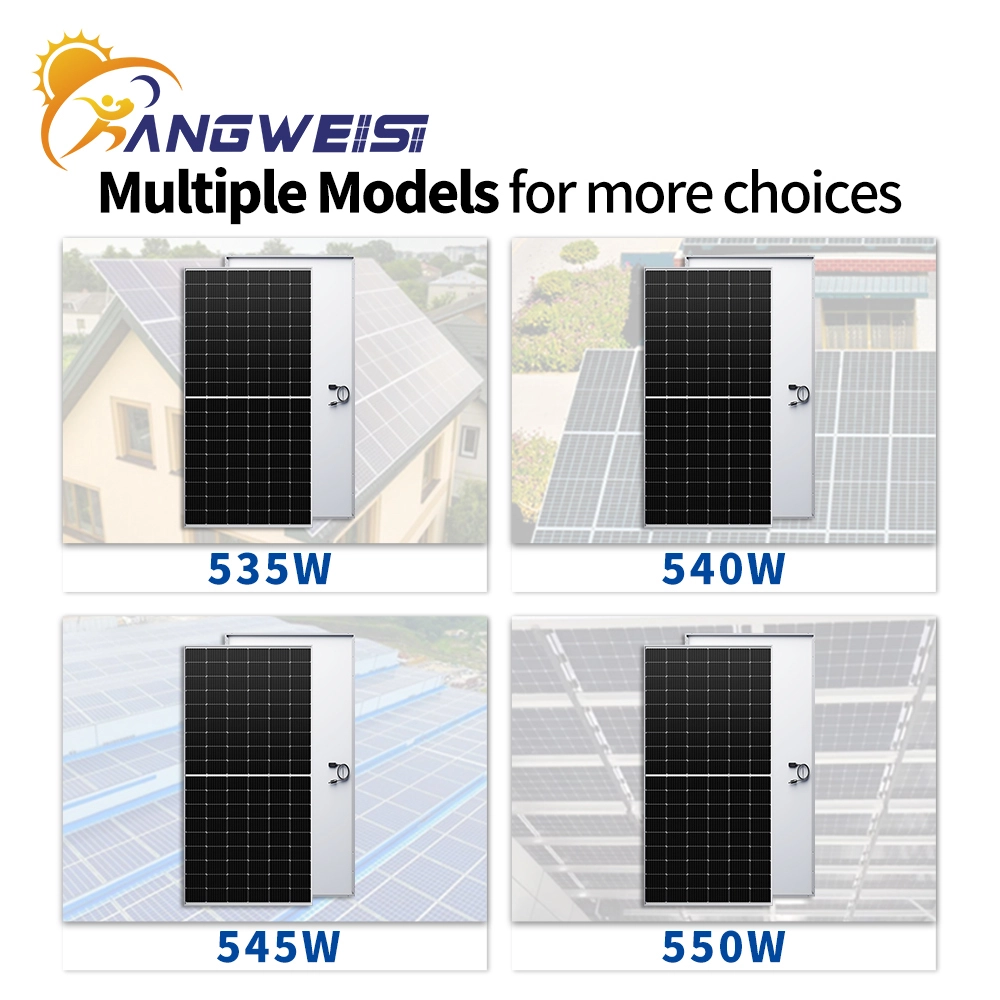

Maximum Power(Pmax)

535W

540W

545W

550W

Open-circuit Voltage (Voc)

49.6V

49.8V

50.0V

50.2V

Maximum Power Voltage(Vmp)

41.8V

42.0V

42.2V

42.4V

Short-circuit Current (Isc)

13.60A

13.66A

13.72A

13.78A

Maximum Power Current (Imp)

12.80A

12.86A

12.91A

12.97A

Solar Panel Efficiency

20.70%

20.89%

21.09%

21.28%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

Product Features

Higher DurabilityThe

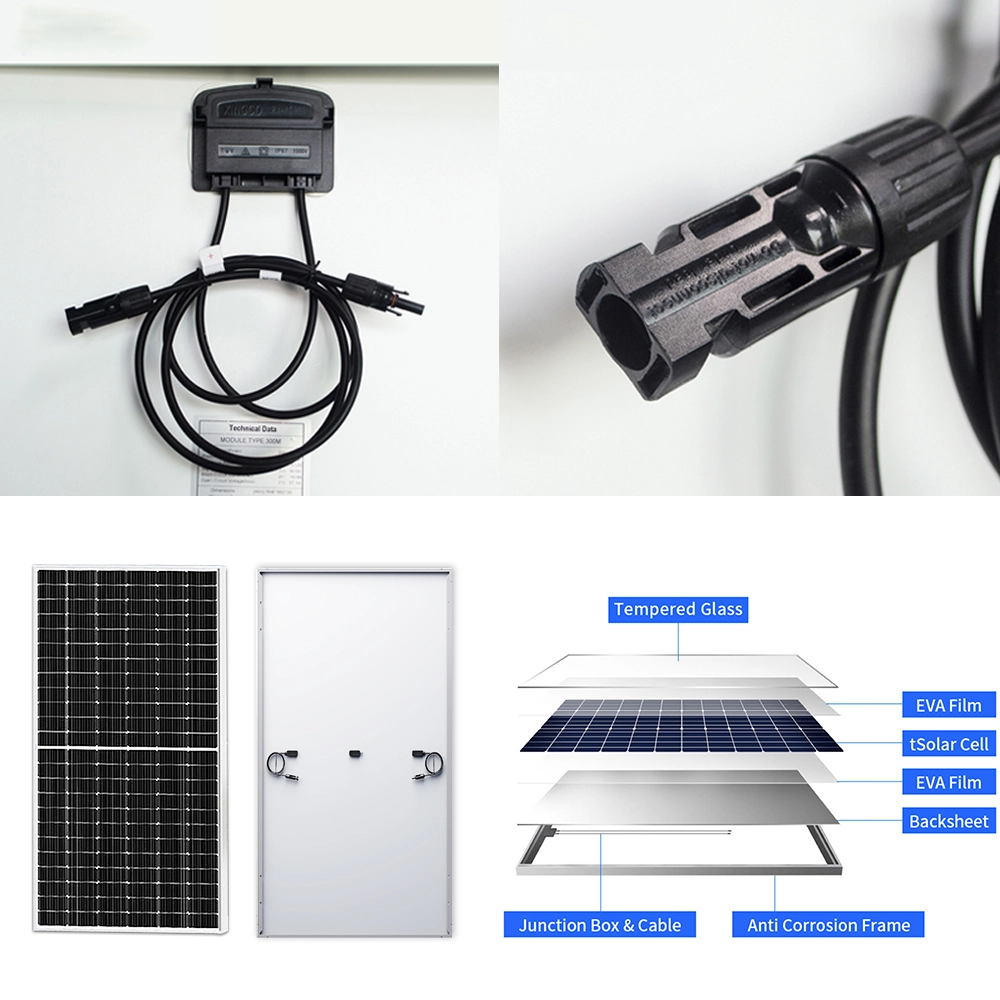

Multi-busbar design can decrease therisk of the cell micro- cracks and fingers broken.

PID Resistant

Tested in accordance to the standard IEC 62804our PV modules have demonstrated resistanceagainst PID (Potential Induced Degradation).which translates to security for your investment.

High Power Density

High conversion efficiency and more power outputpersquare meterby lower series resistance andimproved light harvesting.

Bigger Cells with better performance

A slight increase of the size of our cells, Booststhe performance of the newest modules by sixpercent on average.

Pro10-9

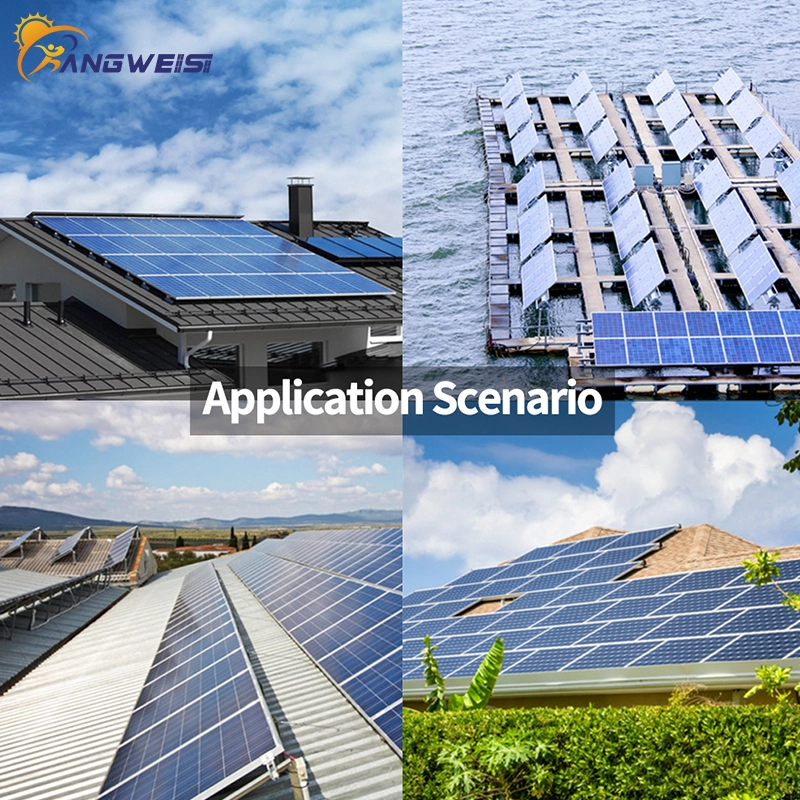

Appliration Scenarios

Simple - efficient - safe - reliable

Pro8-11
Pro8-11
Pro8-12
Pro8-12


Company Advantages

· Kangweisi monocrystalline solar panel suppliers has an improved heat dissipation ability which is always a focus for our research and development team. Our team strives to create products that can work at a high temperature without damaging the LED light source.

· With sturdy and strong components built in it, this product is able to withstand many rigorous conditions, featuring extremely durable.

· Shenzhen Kangweisi Technology Co., Ltd. is showing the strong advantages of customer satisfaction.


Company Features

· Shenzhen Kangweisi Technology Co., Ltd. engages in the R&D, production, and sales of monocrystalline solar panel suppliers. We provide professional custom services for customers.

· Shenzhen Kangweisi Technology Co., Ltd. possesses first-class production capacity in monocrystalline solar panel suppliers industry.

· We are here to win: We always strive to be better than our competitors at understanding our customers and markets – that’s the key to our continued success.


Application of the Product

The monocrystalline solar panel suppliers produced by Kangweisi is widely used in the industry.

Kangweisi is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
