Kangweisi Brand on Grid Hybrid InverterOn-Grid EU Tandard

Type:
On-Grid
Max.Power:
50-70kw
Output Voltage:
EU tandard
Certificate:
TUV, ETL, ISO, CE
Payment:
T/T, L/C, Western Union
Inquiry

Product details of the on grid hybrid inverter


Product Overview

Kangweisi on grid hybrid inverter is properly manufactured to meet customer's stringent demands. The product is fully functional with exceptional value. Our on grid hybrid inverter is available in a wide range of applications. The on grid hybrid inverter will be well packed by our standard export cartons.


Product Introduction

With a focus on details, Kangweisi strives to create high-quality on grid hybrid inverter.

Product Parameters

Datasheet

50KTL3-X MV/LV

60KTL3-X MV/LV

66KTL3-X MV/LV

70KTL3-X MV/LV

Input Data (DC)

Max. recommended PV power(for module STC)

75000W

90000W

99000W

10500W

Max. DC voltage

1100V

Start voltage

250V

Nominal voltage

700V

MPPT voltage range

200V-1000V

No. of MPP trackers

3

No. of PV strings per MPP tracker

4/3/3

4/4/4

4/4/4

4/4/4

Max. input current per MPP tracker

50A/37.5A/37.5A

50A/50A/50A

50A/50A/50A

50A/50A/50A

Max. short-circuit currentper MPP tracker

55A

Output Data(AC)

AC nominal power

50000W

60000W

66000W

70000W

Max. AC apparent power

55500VA

66600VA

73300VA

77700VA

Nominal AC voltage(range*)

277V/480V (425-540V)

AC grid frequency(range*)

50/60 Hz (45-55Hz/55-65 Hz)

Max. output current

66.9A

80.2A

88.2A

93.6A

Features

Efficient power generation

- Maximum efficiency 98.8 per cent

- MPPT current 64A/48A/48A, suitable for 182/210 modules.

- Supports 1.5 times over-allocation on the DC side.

Safe and Reliable

- AC and DC secondary lightning protection

- Protection grade IP66

- Optional AFCI function and anti-PID function.

- String monitoring and IV curve scanning to accurately locate abnormal strings.

Cost Saving

- Support 70mm² aluminium cable access, saving AC cable cost.

- Intelligent online operation and maintenance saves costs

Pro20-11

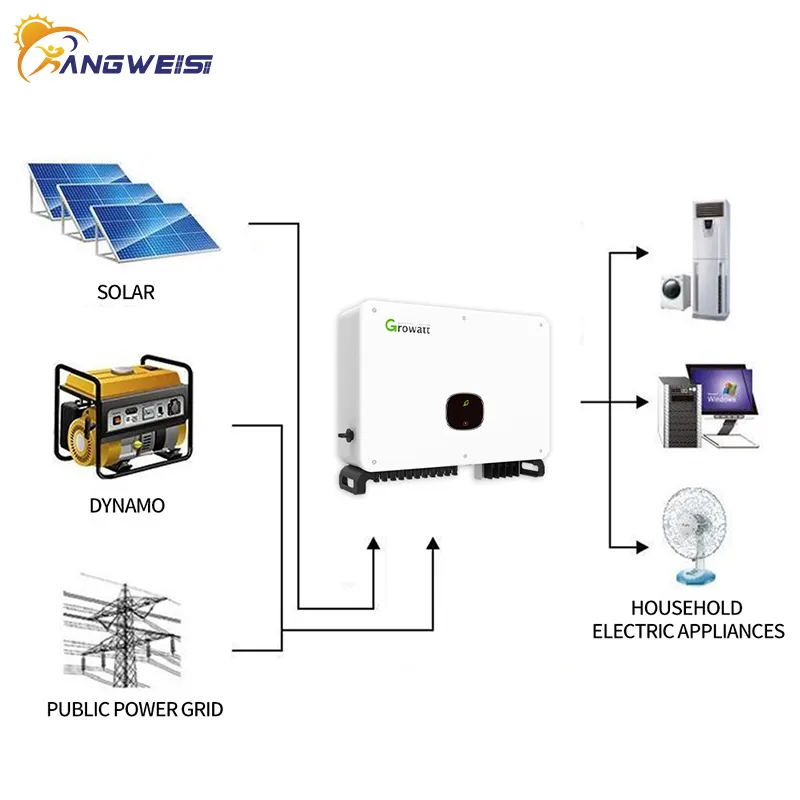

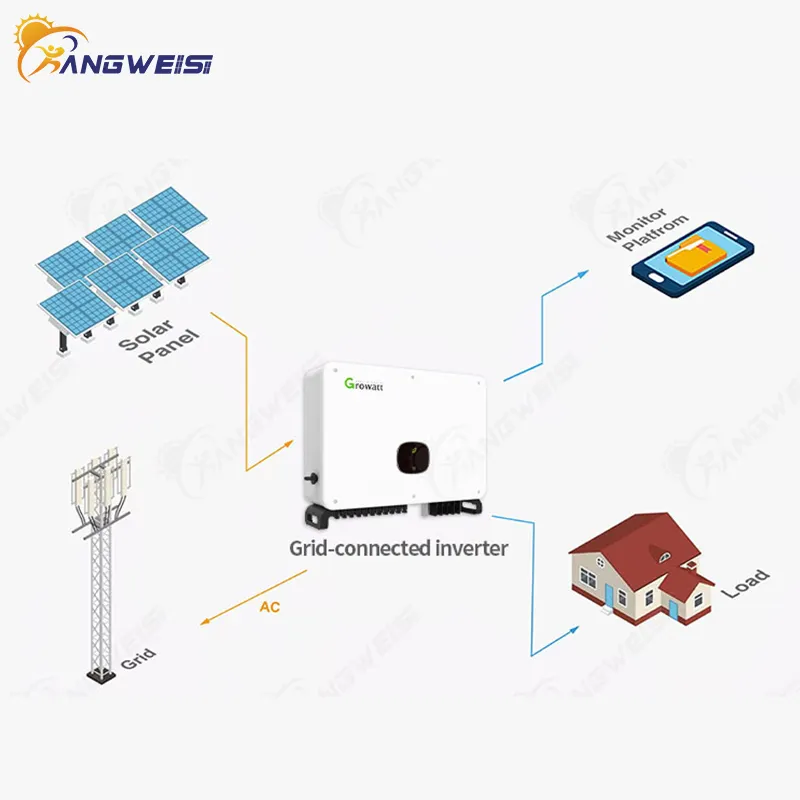

Appliration Scenarios

Simple - efficient - safe - reliable
