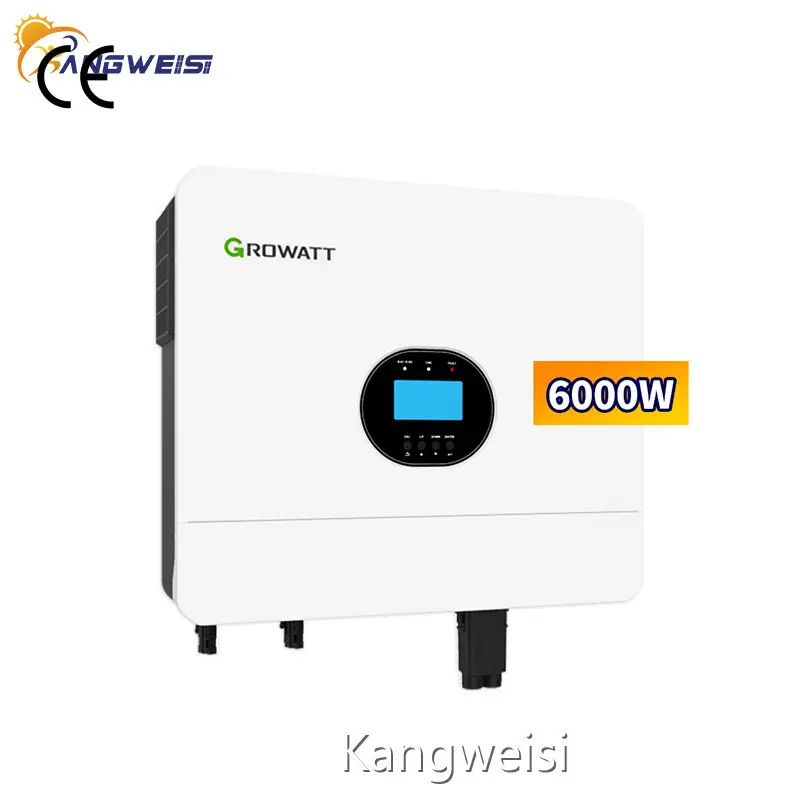

Kangweisi Brand Solar Off Grid Inverter FactorySPF 6000 ES Plus ETL
Product details of the solar off grid inverter
Product Overview
Kangweisi solar off grid inverter is designed by experienced professionals who make use of superior quality raw materials. Under the control of strict quality management system, the product is bound to be of a quality that conforms to the industry standard. Shenzhen Kangweisi Technology Co., Ltd. makes efforts to set an example as a reliable enterprise.
Product Description
With a focus on every detail of solar off grid inverter, we strive to create high-quality products.
Product Parameters
|
Datasheet |
SPF 6000 ES Plus |
|
Battery Voltage |
48VDC |
|
Battery Type |
Lithium/Lead-acid |
|
Inverter Output |
|
|
Rated Power |
6000VA/6000W |
|
Parallel Capability |
Yes, 6 units maximum |
|
AC Voltage Regulation(Battery Mode) |
230VAC ± 5% @ 50/60Hz |
|
Surge Power |
12000VA |
|
Efficiency (Peak) |
93% |
|
Waveform |
Pure sine wave |
|
Transfer Time |
10ms typical，20ms Max |
|
Solar Charger |
|
|
Maximum PV Array Power |
8000W |
|
MPPT Range @ Operating Voltage |
120VDC ~ 450VDC |
|
Number of Independent MPP Trackers/Strings Per MPP Tracker |
2/1 |
|
Max. input current per MPP tracker |
16A |
|
Maximum PV Array OpenCircuit Voltage |
500VDC |
|
Maximum Solar Charge Current |
100A |
|
AC Charger |
|
|
Charge Current |
80A |
|
AC Input Voltage |
230VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
Physical |
|
|
Protection Degree |
IP20 |
|
Dimension (W/H/D) |
460/395/132mm |
|
Net Weight (kgs) |
13.5 |
|
Operating Environment |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Altitude |
<2000m |
|
Operating Temperature |
0°C - 55°C |
|
Storage Temperature |
-15°C - 60°C |
Features
Efficient Power Generation.
- Supports up to 8000W PV input
- Dual MPPT
- 2x surge power
Flexible Expansion.
- Plug and play PV interface
- Dual grid and generator interfaces with integrated switch
- Support 6 single-phase/three-phase parallel generators to form a 36kW system.
- Compatible with lithium and lead-acid batteries
Intelligent and reliable.
- Remote monitoring via WiFi and GPRS
- Timed charging and discharging
- Dust-proof air inlet mesh cover to optimise the experience of using the system in harsh environment.
Appliration Scenarios
Simple - efficient - safe - reliable
