Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 1
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 2
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 3
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 4
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 5
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 6
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 7
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 8
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 9
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 10
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 1
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 2
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 3
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 4
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 5
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 6
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 7
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 8
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 9
Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14 10

Kangweisi Brand Solar System Supplier KWS 30-300KW-hybrid 30KW/50KW/100KW/200KW/300KW 400V/480V HECO Rule 14

Model:
KWS 30-300KW-hybrid
Max.Power:
30KW/50KW/100KW/200KW/300KW
Output Voltage:
400V/480V
Certificate:
HECO Rule 14, G59
Payment:
T/T, L/C, Western Union
Inquiry

Product details of the solar system supplier


Product Overview

In order to capture the market opportunities,Shenzhen Kangweisi Technology Co., Ltd. adopt the most cutting edge technique in China. The product is tested with the vigilance of our skilled professionals who have a clear understanding of the quality standards in the industry. Kangweisi's solar system supplier can be applied to different fields. Kangweisi is favored by customers both at home and abroad.


Product Description

Compared with other similar products, our solar system supplier has the following advantages.

Product Parameters

Items

Configuration

Model No.

KWS30K-HY

KWS50K-HY

KWS100K-HY

KWS150K-HY

KWS250K-HY

KWS500K-HY

Solar Panel

Quantity

68 units

119 units

238 units

340 units

595 units

1190 units

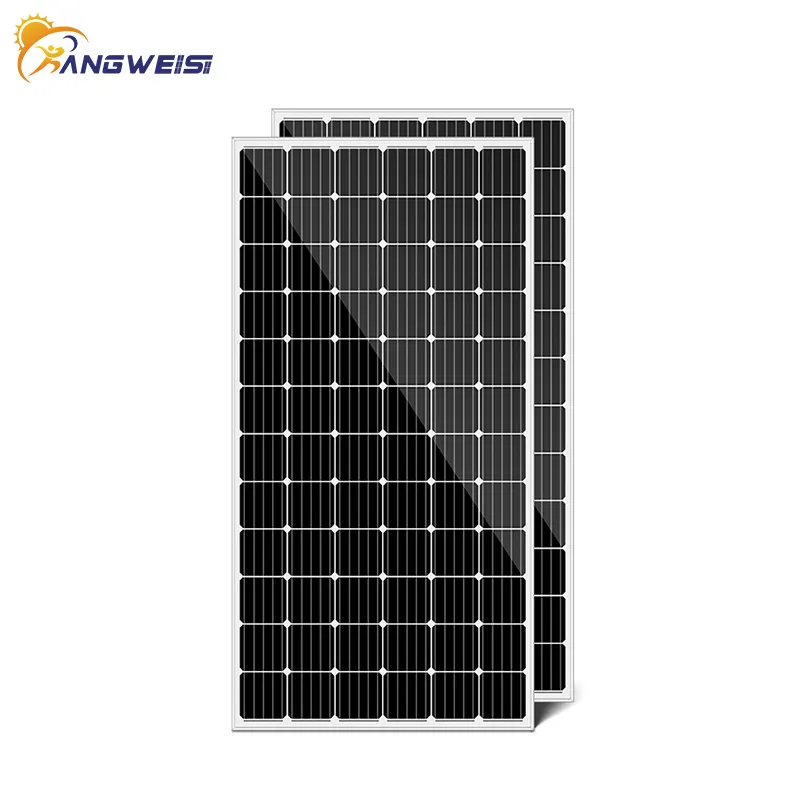

Model

KWS455M-72HPH (Mono)

Max Power

455W



Size

2094*1038*35mm

Voc

49.8V



Vmp

41.1V

Isc

11.61A



Imp

11.08A

Hybrid Inverter

Quantity

1 unit

1 unit

1 unit

1 unit

1 unit

1 unit

Model

BPS30

BPS50

BPS100

BPS150

BPS250

BPS500

Max PV Power

60/120KW

120/180/240KW

300/360KW

600/660/720KW

MPPT Operating Voltage

200V-850VDC

Battery Voltage

150V-850V

420V-850V

500V-850V

AC Voltage

3P+E, 4wires , 400V

Lithium Battery

Model

KWS-HV series

Battery Voltage Range

150~850V

420~850V

500~850V

Battery Bank Capacity (customized)

60KWH

98.4KWH

196.8KWH

295.2KWH

545KWH

1091KWH

Battery Bank Capacity (90% DOD)

54KWH

88.56KWH

177.12KWH

265.68KWH

490.5KWH

981.9KWH

BOS

Battery Combiner Box

1 set

Mounting Brackets

1 set

DC Combiner Box

4 in 1out

7 in 2 out

14 in 2 out

20 in 3 out

14 in 2 out

20 in 3 out

PV Cable 4mm 2

400m

800m

1600m

2200m

1600m

2200m

DC Breakers

Optional

MC4 Connectors

20 pairs

26 pairs

50 pairs

70 pairs

50 pairs

70 pairs

Product Introduction

Energy storage system for solar power (ESS) refers to the device of converting electrical energy from power systems into a form that can be stored for converting back to electrical energy when needed.

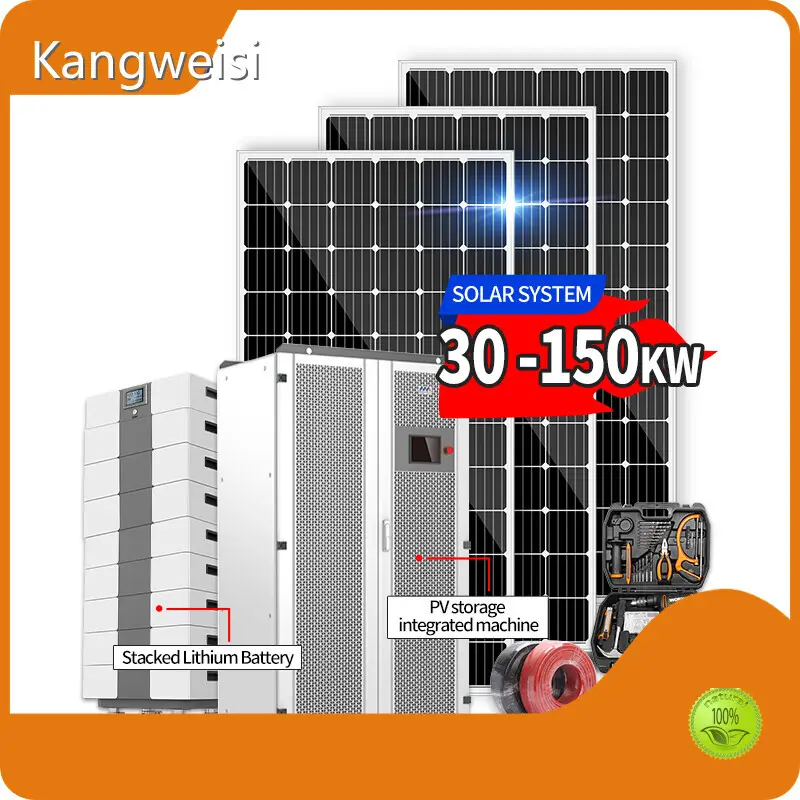

30kw-500kw System Solution + 100Kwh-500kwh Customized Solution # Lead Acid, Gel # Lithium Battery Back Up.

Pro16-12
Pro16-11

Product Features

Commercial Hybrid systems is like one micro-grid power station , it is working for villas , office , hospital , school or big house , providing stable electricity power by renewable energy from PV , when the utility is abnormal , the ESS runs in off grid or on grid mode and provides stable power for loads . You can sell extra solar power to electricity company or store it in battery bank according to your investment plans.

Appliration Scenarios

Simple - efficient - safe - reliable

Pro15-14
Pro15-14
Pro15-13
Pro15-13


Company Information

Shenzhen Kangweisi Technology Co., Ltd. is the leading solar system supplier manufacturer among the industry and created our own brand of Kangweisi. The core competitiveness for Shenzhen Kangweisi Technology Co., Ltd. lies in its technology. The company has realized that its success owes to the support of the people and communities. Therefore, the company has conducted a lot of community causes to support local economic growth in return. Check it!
Welcome all customers in need to purchase our products.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
