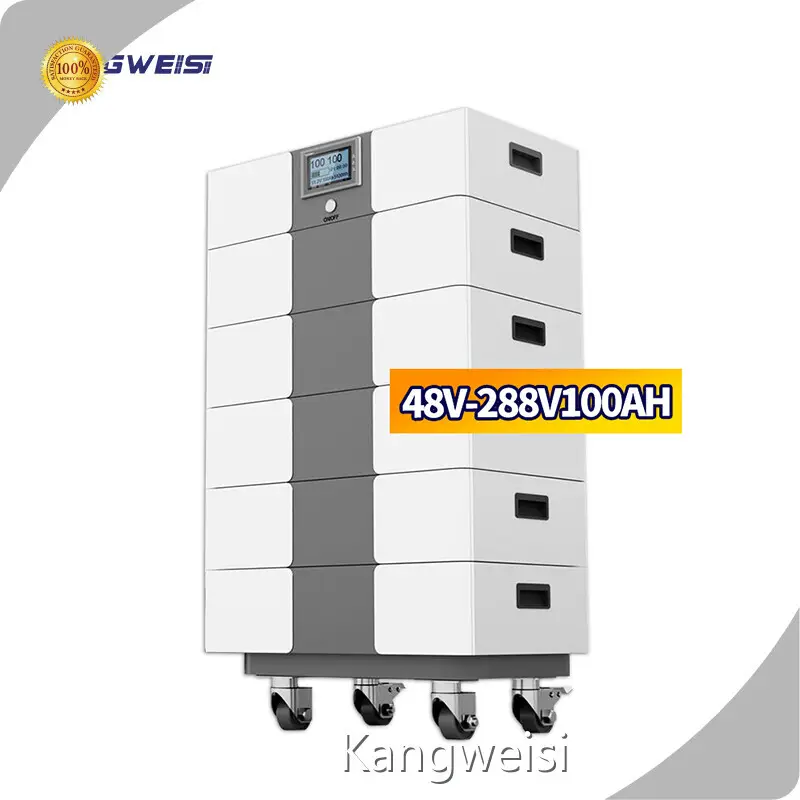

Product details of the top lithium battery manufacturers
Product Information
Our top lithium battery manufacturers is rich in modern design and delicate production. The product has been tested for many times under the rigorous quality control system. After years, the product still satisfies the demands of markets and is believed to be used by more people.
Product Parameters
Electrical Parameters (25℃) |
Rated Voltage |
48V |
96V |
144V |
192V |
240V |
288V |
Rated Capacity (Cs) |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
100Ah@25℃ |
|
Energy |
4800Wh |
9600Wh |
14400Wh |
19200Wh |
24000Wh |
28800Wh |
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
Charge Efficiency |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
99.5%@ 0.2C |
|
Discharge Efficiency |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
|
Terminal Diameter |
M8 |
M8 |
M8 |
M8 |
M8 |
M8 |
|
Internal resistance (Fully charged,25℃) |
≤50m Q |
≤50mQ |
≤50m R |
≤50m & |
≤50m 2 |
≤50m& |
|
Cycle life |
≥6000 cycles @ 0.2C 100%D.O.D |
||||||
Capacityaffected bytemperature |
40℃ |
101% |
|||||
25℃ |
100% |
||||||
0℃ |
90% |
||||||
-10℃ |
75% |
||||||
Nominal operating temperature |
25℃±3℃(77°F±5°F) |
||||||
Operatingtemperaturerange |
Discharge |
-20℃~60℃(-4°F~140°F) |
|||||
Charge |
0℃~45℃(32°F~113°F) |
||||||
Storage |
0℃~40℃(32°F~104°F) |
||||||
Water Dust Resistance |
IP50 |
||||||
Charge Voltage |
56.8V |
||||||
Standard Charge Mode(25℃±2℃,<75%RH) |
0.2C A Constant Current to 57V, then Constant Voltage 57V, until the current drops to 0.02CA, before use, rest 30 minutes |
||||||
Charge Current |
20A |
40A |
60A |
80A |
100A |
120A |
|
Maximum Charge Current |
50A |
100A |
150A |
200A |
250A |
300A |
|
Charge Cut off Voltage |
Nominal operating temperature |
||||||
Continuous Discharge Current |
100A |
160A |
240A |
320A |
400A |
480A |
|
Maximum Pulse Current |
150A(<1S) |
320A(<1S) |
480A(<1S) |
640A(<1S) |
800A( |
960A(<1S) |
|
Discharge Cut Off Voltage |
44.8V |
||||||
Communicate Protocol (optional) |
RS485/RS232/CAN |
||||||
SOC (optional) |
Screen/LED/PC Software |
||||||
Application connection |
1 string 1 parallel |
||||||
Mechanical |
Cells |
16 Strings |
Features
Strong Expansibility
Support 16 modules in parallel
Meticulous Care
Each module can be independent lymanaged and operated to ensurethe safety of the system
Easy Management
Pulley bottom,manual switch,and visual supervision interface
Stronger Compatibility
Cover all mainstream protocols andmatch most mainstream inverters1C discharge
Long Life
4 times long static and 8 consistencyscreening make the battery more durable
Safety & reliability
Nano-coating and self-healing technologyconstruct the LFP channelto add a firewall to the battery
Appliration Scenarios
Simple - efficient - safe - reliable
Company Advantage
• Our company has built a technical team of experienced and skilled professional staff. Based on the experience and technique, we can produce quality products.
• Kangweisi enjoys traffic convenience due to the superior geographical conditions. We also have complete supporting facilities nearby.
• Our company insists on the service concept of 'integrity is the foundation, customer is the supreme', and strives to provide all-round quality service for customers.
The jewelry designed and produced by Kangweisi is of unique style, stylish and gorgeous look and favorable price. If you have any intention to purchase, feel free to contact us at any time!
