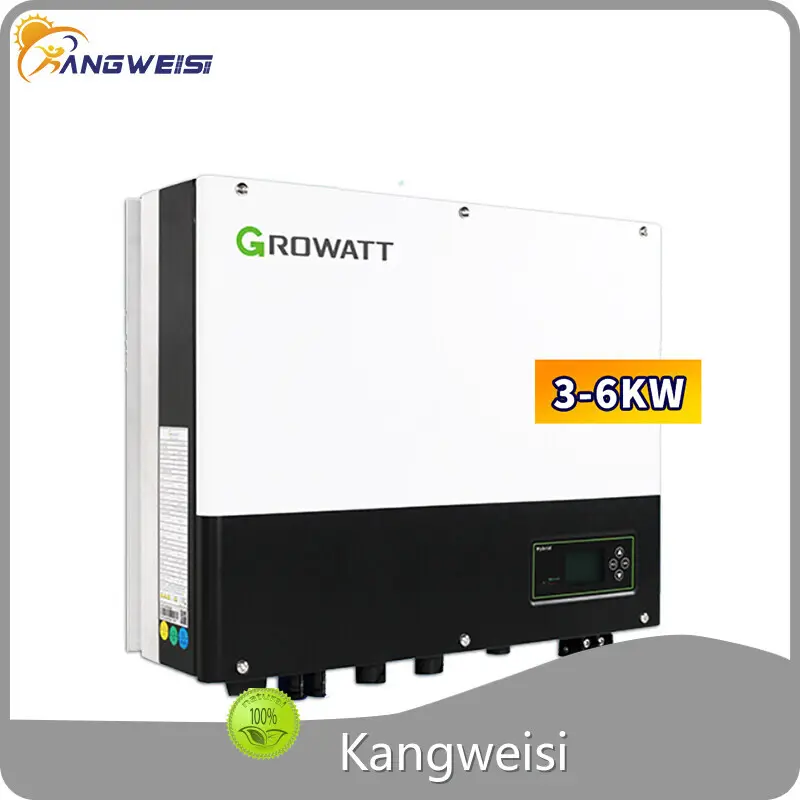

Product details of the hybrid solar inverters
Quick Detail
Kangweisi hybrid solar inverters is made of the finest materials that has passed the international tests. We constantly monitor and adjust the production processes to ensure that the quality of the product meets the requirements of both customers and the company’s policy. The product is available at an affordable price and is currently very popular in the market and is believed to be used more widely in the future.
Product Description
With a focus on product quality, Kangweisi strives for quality excellence in the production of hybrid solar inverters.
Product Parameters
Datasheet |
SPH 3000 |
SPH 3600 |
SPH 4000 |
SPH 4600 |
SPH 5000 |
SPH 6000 |
DC input data |
||||||
Max. recommended PV power |
6600W |
6600W |
6600W |
8000W |
8000W |
8000W |
Start voltage |
150V |
|||||
Max. PV voltage |
550V |
|||||
PV voltage range |
120V-550V |
|||||
MPPT voltage range/nominal voltage |
150V-550V /360V |
|||||
Max. input current of tracker A/B |
12A/12A |
|||||
Number of MPP trackers / stringsper MPP tracker |
2/1 |
|||||
AC Output |
||||||
Rated AC output power |
3000W |
3680W |
4000W |
4600W |
4999W |
6000W |
Max. AC apparent power |
3000VA |
3680VA |
4000VA |
4600VA |
5000VA |
6000VA |
Max. output current |
16A |
16A |
22A |
22A |
22A |
27A |
Nominal AC output voltage |
230V |
|||||
Nominal grid frequency |
50/60Hz, ±5Hz |
|||||
Power factor at rated power |
1 |
|||||
Displacement power factor |
0.8leading…0.8lagging |
|||||
THDI |
<3% |
|||||
AC output power(Backup) |
||||||
Max. output power |
3000W |
|||||
Rated AC output voltage |
230Vac |
|||||
Rated AC output frequency |
50/60Hz |
|||||
Automatic switchover time |
<0.5S |
|||||
Battery Data |
||||||
Battery voltage range |
42~59V |
|||||
Max. charging voltage |
58V |
|||||
Max charging and dischargingcurrent |
66A |
|||||
Max charging and dischargingpower |
3000W |
|||||
Battery type |
Lithium /Lead-acid |
|||||
Capacity of battery |
50-2000AH |
|||||
Efficiency |
||||||
Max. efficiency |
97.5% |
97.5% |
97.5% |
97.6% |
97.6% |
97.7% |
Euro European efficiency |
97.0% |
97.0% |
97.0% |
97.1% |
97.1% |
97.1% |
MPPT efficiency |
99.9% |
|||||
Protection devices |
||||||
DC switch |
Yes |
|||||
DC reverse polarity protection |
Yes |
|||||
Battery reverse protection |
Yes |
|||||
Output over current protection |
Yes |
|||||
Output over voltage protection |
Yes |
|||||
Ground fault monitoring |
Yes |
|||||
Grid monitoring |
Yes |
|||||
Integrated all-pole sensitive leakage |
Yes |
|||||
General Data |
||||||
Dimensions (W / H / D) |
450/560/180mm |
|||||
Weight |
27kg |
|||||
Operating temperature range |
–25°C ... +60°C |
|||||
Altitude |
2000m |
|||||
Self-Consumption |
< 3 W |
|||||
Topology(solar) |
Transformerless |
|||||
Topology(battery) |
HF transformer |
|||||
Cooling concept |
Natural |
|||||
Environmental Protection Rating |
IP65 |
|||||
Relative humidity |
100% |
|||||

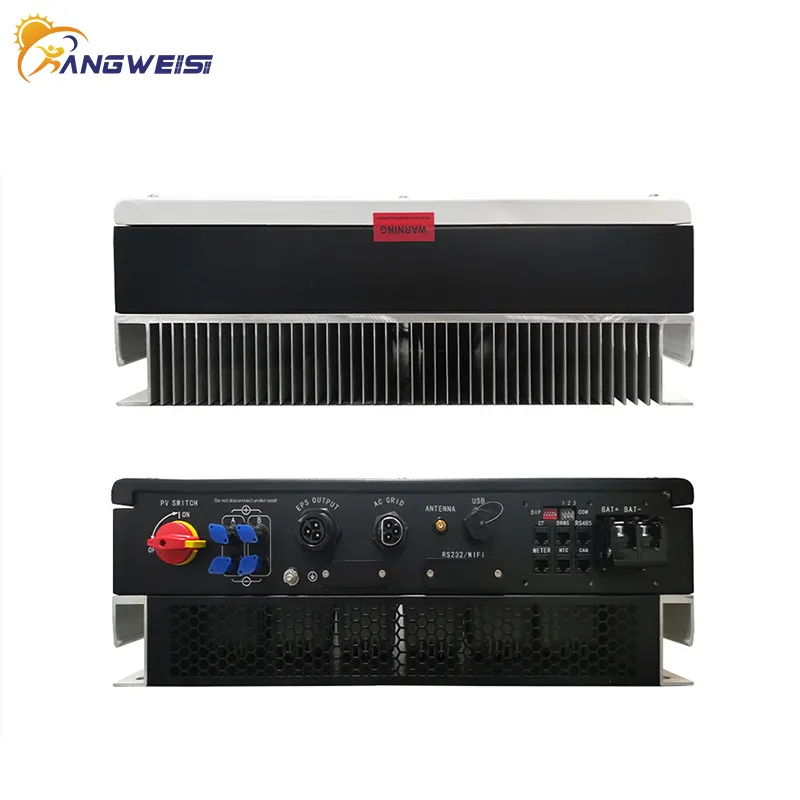

DC connection |
MC4/H4(Optional) |
|||||
AC connection |
Connector |
|||||
Interfaces: RS232/RS485/CAN/USB |
Yes |
|||||
Monitor : RF/WIFI/GPRS |
Optional |
|||||
Display |
LCD+LED |
|||||
Warranty: 5 years / 10 years |
Yes /Optional |
Features
Functional Leadership
- Uninterruptible power supply, switching within 10ms
- Suitable for new and retrofitted PV systems
Efficient power generation
- DC overmatching 2.0 times
- Dual MPPT tracking
System Flexibility
- Compatible with lead-acid and lithium batteries
- Quick access to VPP platform
- Intelligent load control via dry contact

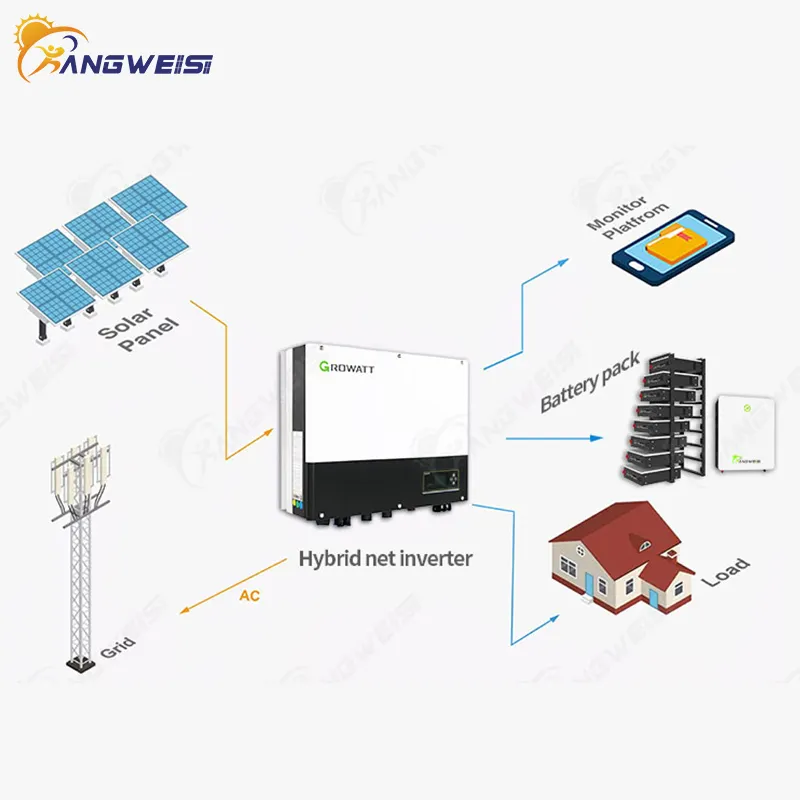

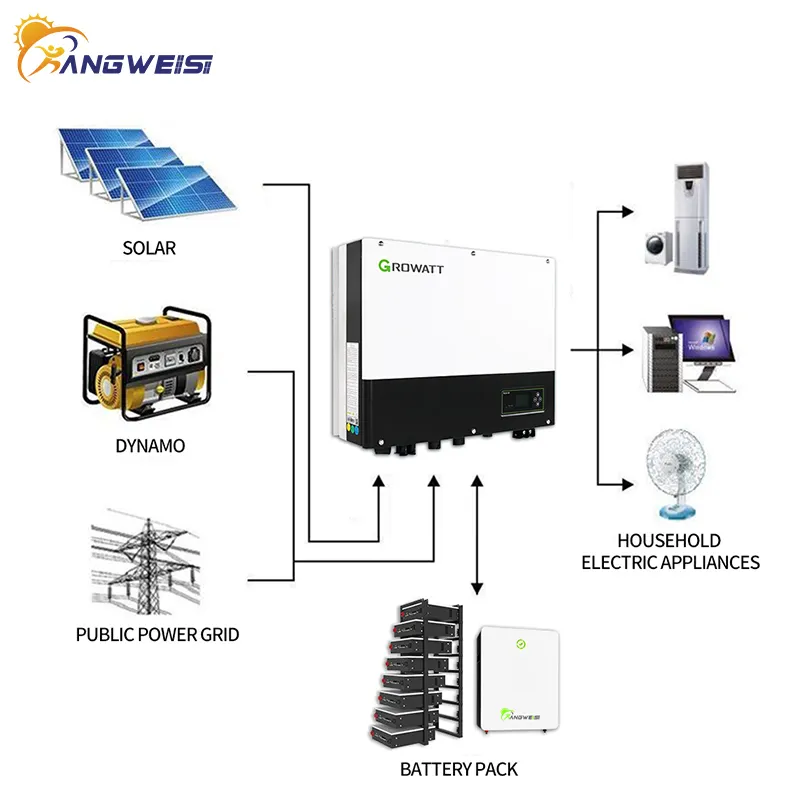

Appliration Scenarios
Simple - efficient - safe - reliable
