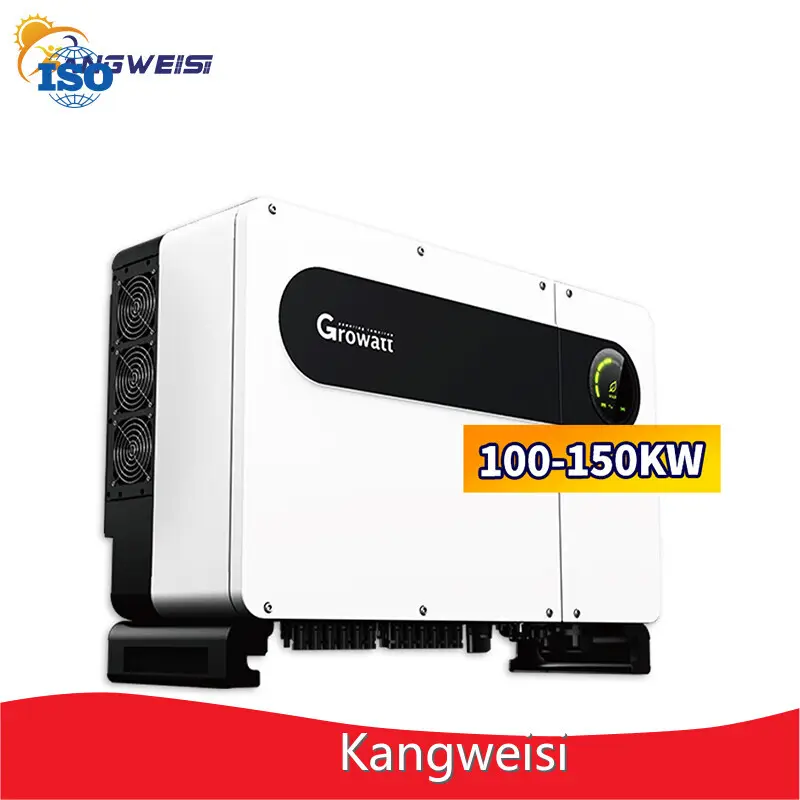

Kangweisi on Grid Hybrid Solar Inverter EU Tandard - Kangweisi
Product details of the on grid hybrid solar inverter
Product Overview
Developed from industrial raw material the offered on grid hybrid solar inverter features clean appearance. The product has reliable and consistent quality thanks to the detailed quality inspection throughout the whole production. Kangweisi's on grid hybrid solar inverter has been widely used in many industries. All employees in Shenzhen Kangweisi Technology Co., Ltd. are coupled with a deep understanding of the 'Kangweisi spirit'.
Product Information
on grid hybrid solar inverter is more competitive than other products in the same category, as shown in the following aspects.
6KW Off-Grid Solar Power System
|
Datasheet |
MAX 100KTL3-X2 LV |
MAX 110KTL3-X2 LV |
MAX120KTL3-X2LV |
MAX 125KTL3-X2 LV |
|
Input Data (DC) |
||||
|
Max. DC voltage |
1100V |
|||
|
Start voltage |
195V |
|||
|
Nominal voltage |
600V |
|||
|
MPP voltage range |
180V-1000V |
|||
|
No. of MPP trackers |
8 |
|||
|
No. of PV strings per MPP tracker |
2 |
|||
|
Max. input current per MPP tracker |
45A |
|||
|
Max. short-circuit currentper MPP tracker |
56.5A |
|||
|
Output Data (AC) |
||||
|
AC nominal power |
100000W |
110000W |
120000W |
125000W |
|
Max. AC apparent power |
110000VA |
121000VA |
132000VA |
137500VA |
|
Nominal AC voltage (range*) |
220V/380V, 230V/400V (340-440V) |
|||
|
AC grid frequency (range*) |
50/60 Hz(45~55Hz/55-65 Hz) |
|||
|
Max. output current
|
158.8A @400V |
174.6A @400V |
190.5A @400V |
198.5A@400V |
|
167.1A@380V |
183.8A@380V |
200.5A@380V |
208.9A@380V |
|
|
Adjustable power factor |
0.8leading ...0.8lagging |
|||
|
THDi |
<3% |
|||
|
AC grid connection type |
3W/N/PE |
|||
|
Efficiency |
||||
|
Max.efficiency |
98.8% |
|||
|
European efficiency |
98.4% |
|||
|
MPPT efficiency |
99.9% |
|||
|
Protection Devices |
||||
|
DC reverse polarity protection |
Yes |
|||
|
DC switch |
Yes |
|||
|
AC/DC surge protection |
Type II / Type II |
|||
|
Insulation resistance monitoring |
Yes |
|||
|
AC short-circuit protection |
Yes |
|||
|
Ground fault monitoring |
Yes |
|||
|
String detection |
Yes |
|||
|
Anti-PID function |
Optional |
|||
|
Arc fault detection (AFCI) |
Optional |
|||
|
General Data |
||||
|
Dimensions (W / H / D) |
970/640/345mm |
|||
|
Weight |
84kg |
|||
|
Operating temperature range |
–30°C ... +60°C |
|||
|
Nighttime power consumption |
< 1W |
|||
|
Topology |
Transformerless |
|||
|
Cooling |
Smart air cooling |
|||
|
Protection degree |
IP66 |
|||
|
Relative humidity |
0~100% |
|||
|
Altitude |
4000m |
|||
|
DC connection |
H4/MC4 (Max.6mm²) |
|||
|
AC connection |
OT Terminal (Max. 240mm²) |
|||
|
Display |
LED/WIFI+APP |
|||
|
Interfaces: RS485/USB/PLC/GPRS/4G/WiFi |
Yes/Yes/Optional/Optional/Optional/Optional |
|||
|
Warranty: 5 years / 10 years |
Yes /Optional |
|||
Features
High efficiency power generation
- 8-channel MPPT design, adapting to complex application scenarios
- MPPT current 45A, support high power module access
- 1.5 times DC over allocation
Safe and Reliable
- Optional PID function
- Optional AFCI function
- String detection and IV curve scanning to accurately locate abnormal strings.
Reduce power cost
- Supports two-convergence and one-convergence string access, saving DC cable cost.
- Support large diameter aluminium cable access, saving AC cable cost.
- Supports PLC communication, saving communication cable and construction cost.
Appliration Scenarios
Simple - efficient - safe - reliable
