Kangweisi on Grid Inverters for
Company Advantages
· The production process of Kangweisi on grid inverters is regulated according to international standards.
· The product is strong enough. It can protect the items being packaged from environmental and physical hazards from transportation and storage.
· With significant economic benefits, the product has been widely found its applications in the industry.
6KW Off-Grid Solar Power System
|
Datasheet |
MID 25KTL3-X1 |
MID 30KTL3-X |
MID 33KTL3-X |
MID 36KTL3-X |
MID40KTL3-X |
|
Input Data (DC) |
|||||
|
Max. recommended PV power (for module STC) |
37500W |
45000W |
49500W |
54000W |
60000W |
|
Max. DC voltage |
1100V |
||||
|
Start Voltage |
250V |
||||
|
Normal Voltage |
600V |
||||
|
MPPT voltage range |
200-1000V |
||||
|
No. of MPP trackers/strings per MPP tracker |
3 |
3 |
3 |
4 |
4 |
|
Max.input current per MPP tracker |
26A |
||||
|
Max. short-circuit current per MPP tracker |
32A |
||||
|
Output Data (AC) |
|||||
|
Rated AC output power |
25000W |
30000W |
33000W |
36000W |
40000W |
|
Max. AC apparent power |
27700VA |
33300VA |
36600VA |
39600VA |
44000VA |
|
Nominal AC voltage(range*) |
220V/380V, 230V/400V (340-440V) |
||||
|
AC grid frequency;(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
||||
|
Max. output current |
40A |
50.5A |
55.5A |
60.0A |
66.6A |
|
Adjustable power factor |
0.8 leading - 0.8 lagging |
||||
|
THDi |
<3% |
||||
|
AC grid connection type |
3W+N+PE |
||||
|
Efficiency |
|||||
|
Max.efficiency |
98.8% |
||||
|
European efficiency |
98.5% |
||||
|
MPPT efficiency |
99.9% |
||||
|
General Data |
|||||
|
Dimensions (W / H / D) |
580/435/230mm |
||||
|
Weight |
29.5kg |
29.5kg |
29.5kg |
30.5kg |
30.5kg |
|
Self-Consumption (night) |
<1W |
||||
|
Operating temperature range |
–25 °C ... +60 °C |
||||
|
Topology |
Transformerless |
||||
|
Cooling |
Smart air cooling |
||||
|
Protection degree |
IP65 |
||||
|
Relative Humidity |
0~100% |
||||
|
Altitude |
4000m |
||||
|
DC connection |
H4/MC4(Optional) |
||||
|
AC connection |
Cable gland+OT terminal |
||||
|
Display |
OLED+LED/WIFI+APP |
||||
|
Interfaces: RS485 / USB /WiFi/ GPRS / RF/ LAN |
Yes/Yes /Optional/Optional/Optional/Optional |
||||
|
Warranty: 5 years / 10 years |
Yes/Optional |
||||
Product Features
Efficient Power Generation
- 3/4 way MPPT
- DC overmatching 1.5 times
- 32A high current MPPT, suitable for 182/210 modules.
- Maximum conversion efficiency of 98.8%
Safe and Reliable
- Built-in AC/DC secondary lightning protection
- IP66 protection grade
- Intelligent air-cooling
Intelligent monitoring and maintenance
- High precision string monitoring
- Intelligent IV curve scanning
- Multiple monitoring methods, intelligent one-key diagnosis

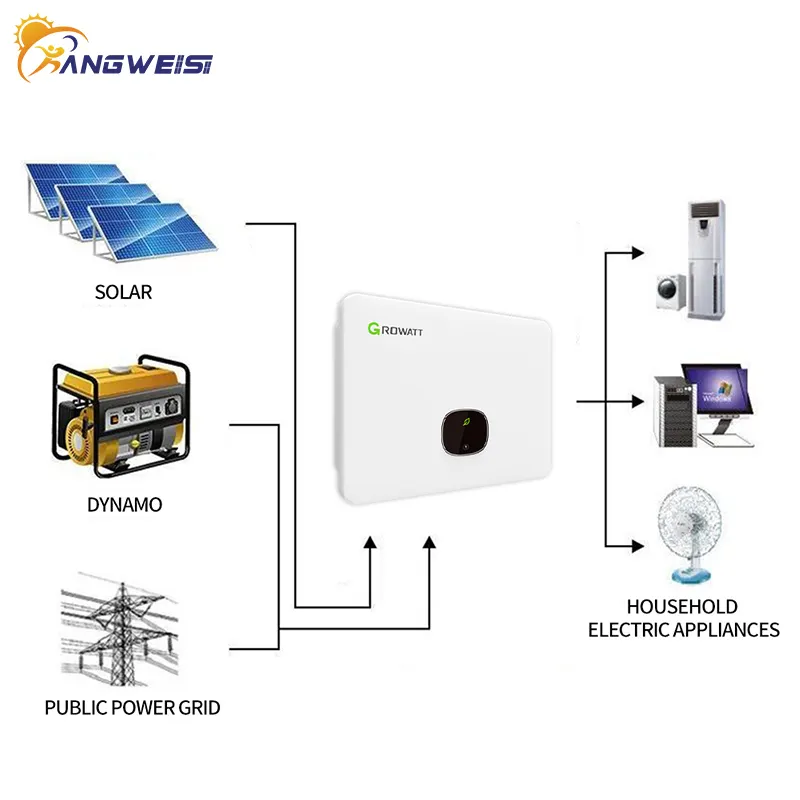

Appliration Scenarios
Simple - efficient - safe - reliable
Company Features
· As one of the leaders in the design and manufacture of on grid inverters, Shenzhen Kangweisi Technology Co., Ltd. has been widely accepted in the industry.
· In Kangweisi, our excellent employees have achieved a major breakthrough in creating the best on grid inverters. Kangweisi makes good use of sophisticated manufacturing techniques to produce on grid inverters. Kangweisi has made some breakthroughs in extending the life of on grid inverters.
· We hope that the Kangweisi brand will precede in the on grid inverters market. Get info!
Product Details
Compared with ordinary products, Kangweisi's on grid inverters has the following advantages in details
Application of the Product
The on grid inverters produced by our company is widely used in various industries and fields.
We are committed to meeting the need of our customers. We will go deeper into their situation and provide them with most suitable solutions.
Product Comparison
Compared with other products in the same category, on grid inverters has outstanding advantages which are mainly reflected in the following points.
Enterprise Advantages
Kangweisi established an excellent team by gathering numerous experienced personnel.
Kangweisi wins consumers' favors and praises depending on quality excellence and professional after-sales services.
Kangweisi follows the business philosophy of 'positive and aspirant, innovative and pioneering'. And we adhere to our enterprise spirit, to be passionate, responsible and innovative. Based on that, we strive to improve our core competitiveness. With the purpose of realizing the optimization of enterprise profits and social benefits, we insist on developing the business in a systematic way, which is conducive to corporate sustainable development. We are dedicated to becoming a modern enterprise with a worldwide reputation.
Since the establishment in our company has been focusing on the strength improvement. At present, we have accumulated industry experience for years. It lays a solid foundation for our future development.
Kangweisi's are sold in major cities in China. They are also exported to many overseas countries and regions.
