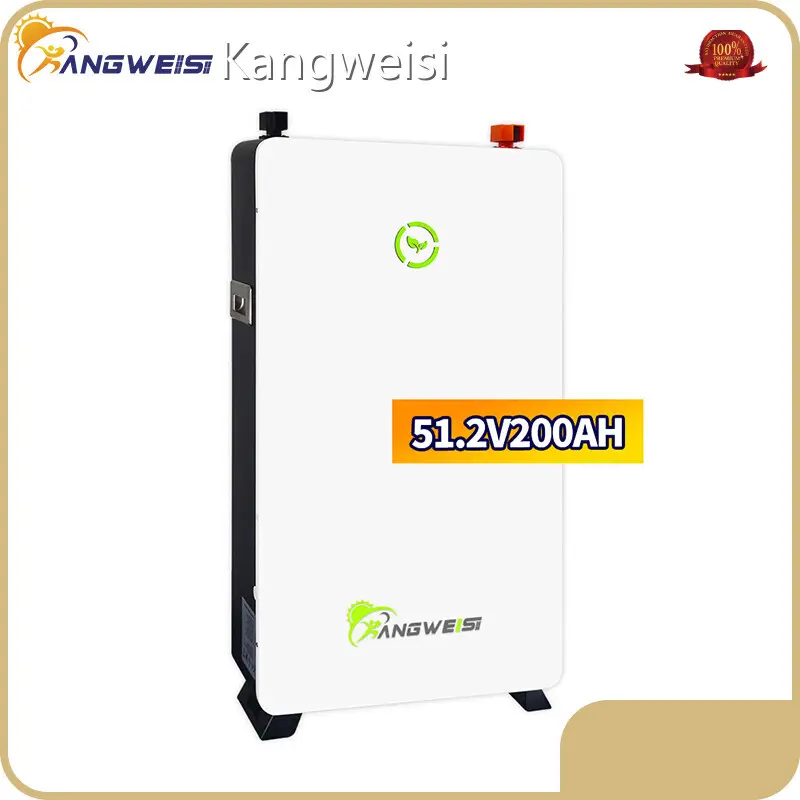

Li Ion Battery Manufacturers Kangweisi Brand,KWS Wall-mounted Series
Product details of the li ion battery manufacturers
Product Overview
Kangweisi li ion battery manufacturers has an appearance design that follows the market trend. With many international certifications, the quality of the product is assured. Large factory and enough well-trained workers can add up to completely guarantee on-time delivery for li ion battery manufacturers.
Product Description
Compared with other products in the same category, li ion battery manufacturers produced by Kangweisi has the following advantages.
Product Parameters
|
Model |
KLA10240 |
|
Battery Type |
LiFePO4 |
|
Nominal Battery Energy |
10 .24 kWh |
|
Nominal Capacity |
200Ah |
|
Nominal Voltage |
51.2V |
|
Charging Voltage. |
57.6V |
|
Discha rging End-of Voltage. |
44.8V |
|
Recommended C Rate |
0.5C |
|
Recommended Charge/Discharge Current |
50A |
|
Max.Charge/Discharge Current |
100A |
|
Peak Power Charge/Discharge Current |
200A ( 15s ) |
|
Depth of Discharge |
90% |
|
Net Weight |
90kg |
|
Dimension(W*D*H) |
504*175*889mm |
|
Charging Temp. Range |
0~ 60℃ |
|
Discharging Temp.Range |
-20~60℃ |
|
Communication |
CAN /RS485 /RS23 2 |
|
Warranty |
10 Years |
|
Warranty Document Suppl ied |
Yes |
|
Calendar Life" |
≥6000 Cycles |
|
Protection Level |
IP51 |
|
Expansion |
Up to15 units in parallel |
|
Color |
White+B lack |
|
Alarms |
Overcharge/Overdischarge/Overcurrent/ Overtemperature/Short Circuit |
|
Pros |
Can be used in both off-grid and hybrid se tups, compact des ign |
|
Compatible Inverters |
Growatt/Deye/INVT/ Goodwe/Solis/Megarevo etc. |
|
Certification & Safety Standard |
CE/UN38 .3, MSDS undergo ing |
Product Features
Expandable
15 modules in parallel withcapacity up to 76.8kWh
High Safety
Cell level monitoringand balancing
Wide Temperature RangeLarger Capacity BaseRange of-20~60°C
5.12kWh per unit
Various Installation Options
Floor-standing, wal-mounted and stacked
Wide CompatibilityMatching with leadinginverter brands
Appliration Scenarios
Simple - efficient - safe - reliable
