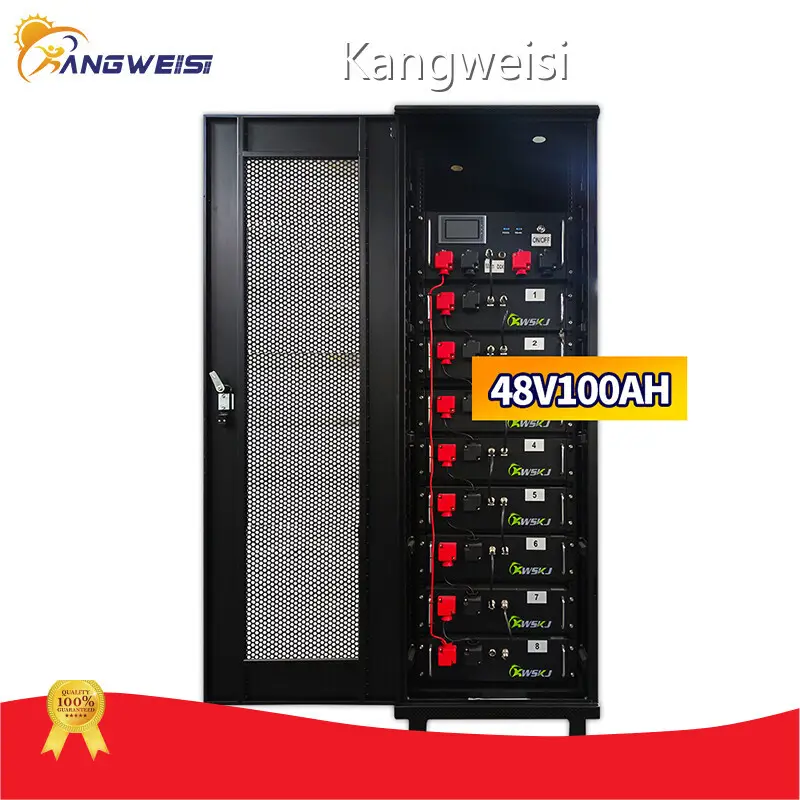

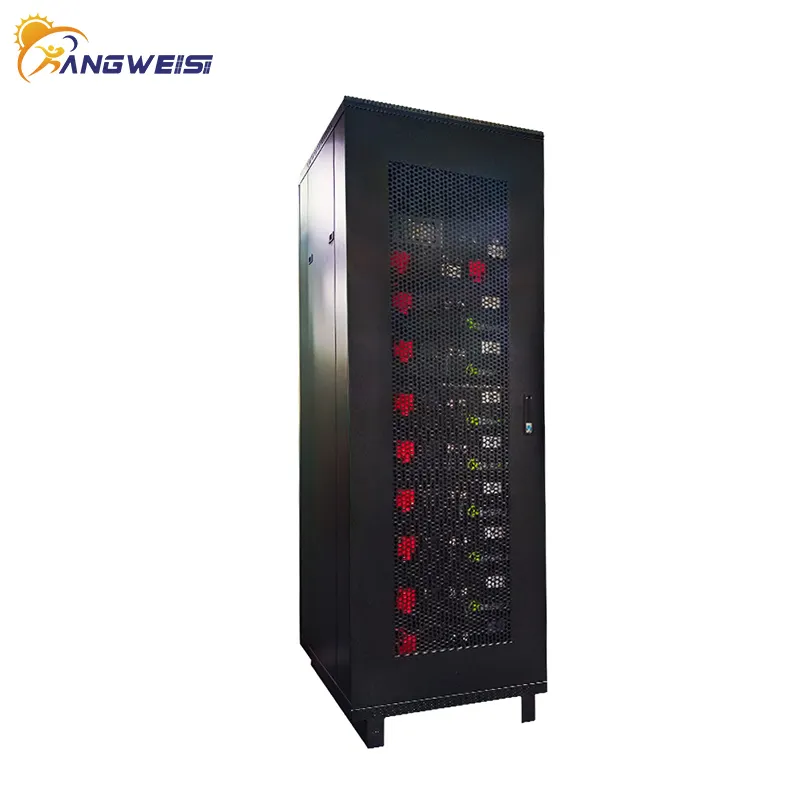

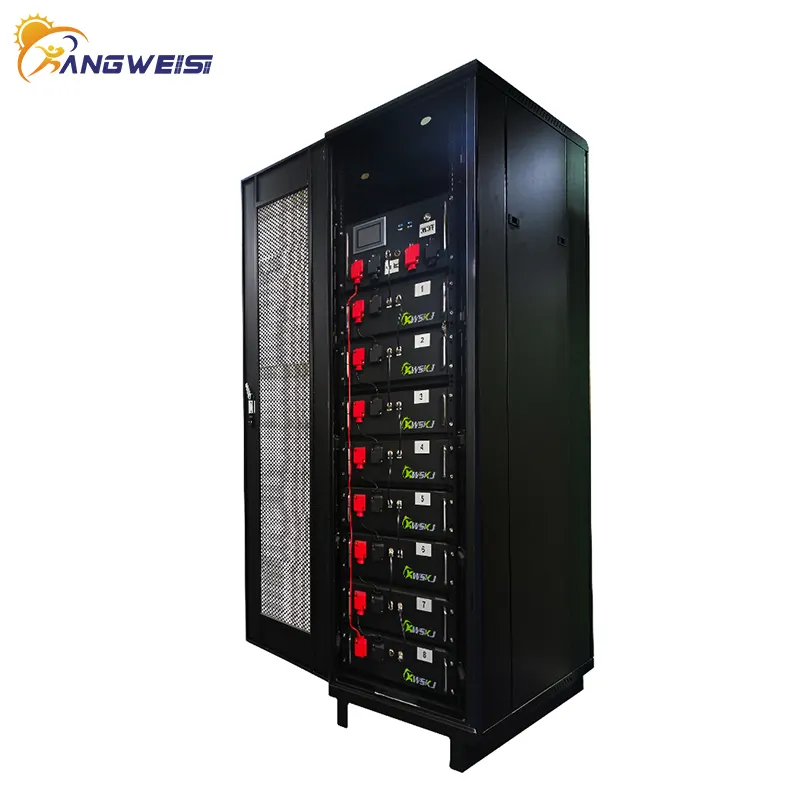

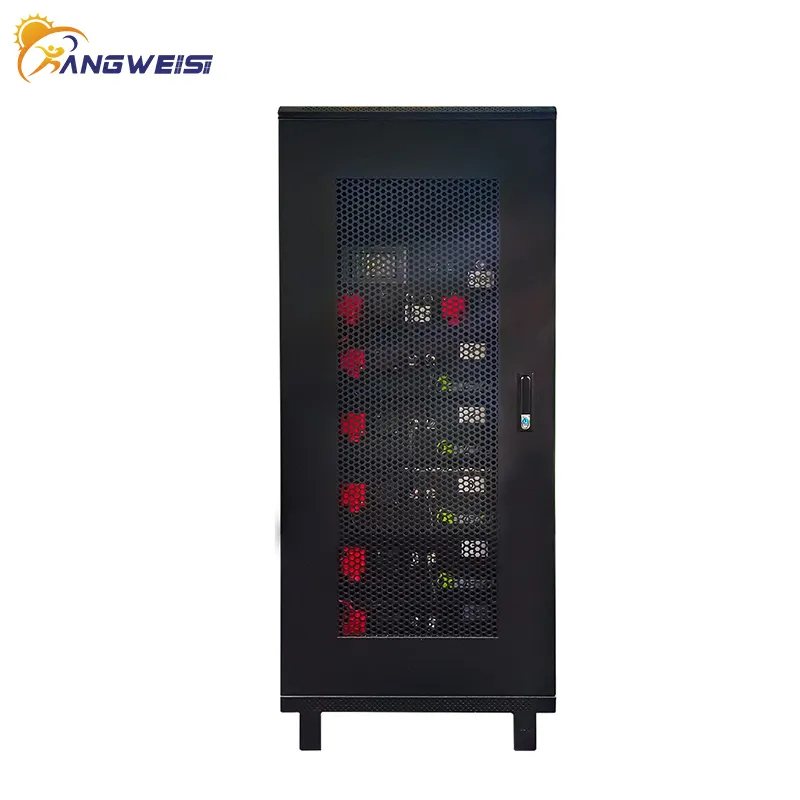

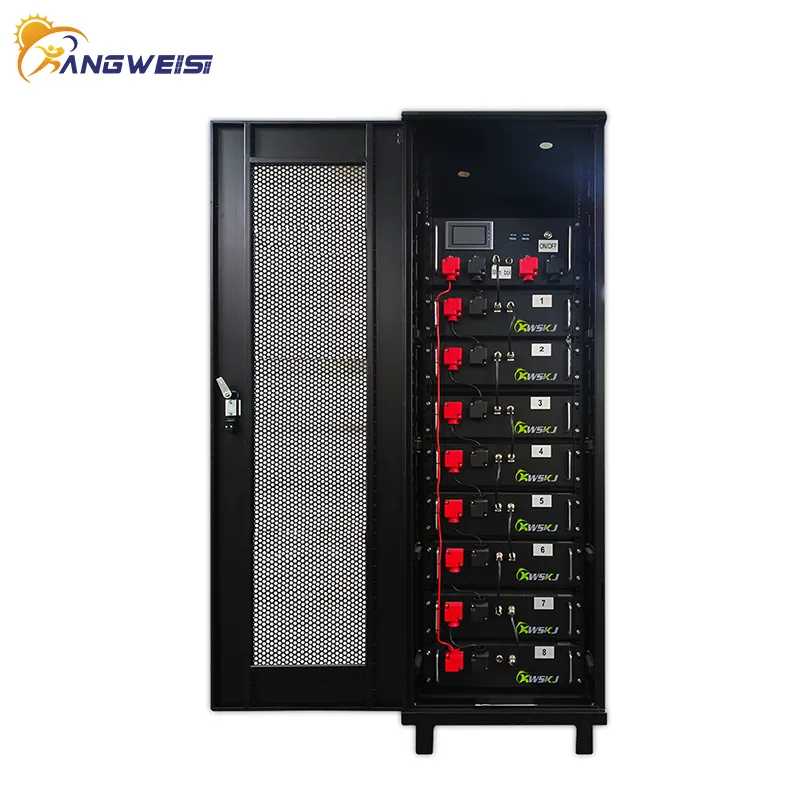

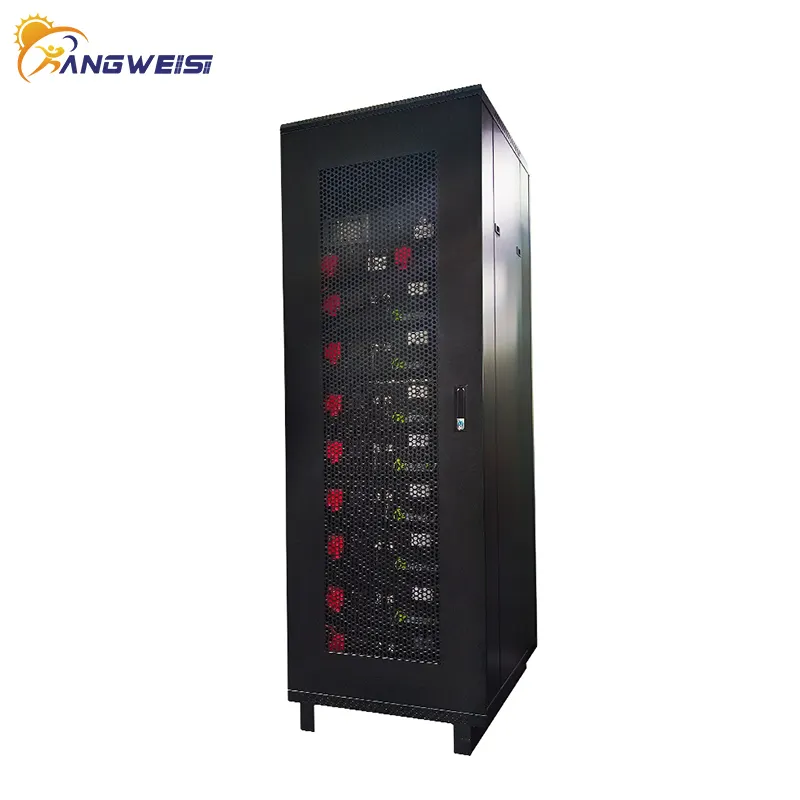

Lithium Battery Supplier Kangweisi Brand KWS Rack Mount Series >6000. 25°C
Product details of the lithium battery supplier
Quick Overview
Using high-quality materials, Kangweisi lithium battery supplier has been given an attractive appearance. One of the factors contributing to the popularity of this product is its excellent quality and strong reliability. Kangweisi's lithium battery supplier has a wide range of applications. Our customers think highly of this product which is of great feature.
Product Introduction
Our lithium battery supplier are processed by the latest technology in the industry, and they perform better in the following details.
Product Parameters
|
Items |
K-665.6V400AH |
|
Nominal voltage |
665.6V |
|
Nominal capacity |
400Ah |
|
Nominal energy |
266.24kWh |
|
Usable energy |
266kWh |
|
Max. voltage range |
603V~738V |
|
Charge voltage |
738V |
|
Float voltage |
730V |
|
Recommend charge current |
200A |
|
Max. charge current |
400A |
|
Recommend discharge current |
400A |
|
Max. discharge current |
1200A |
|
Communication |
RS485 /CAN |
|
Peak discharge current |
200~400A@3mins | 500~1200A@3S |
|
IP rating |
IP20 |
|
Cycle life |
≥4000 cycles |
|
Net weight |
~780kg |
|
Dimension(W*H*D) |
600*800*2000mm*4 |
|
Cell type |
Lithium-iron phosphate (LiFePO4) |
|
Design life |
15years |
|
Operation temperature |
-10~50℃ (14~122℉) |
|
Storage temperature |
-10~45℃ (14~113℉) |
|
Relative humidity |
5%~90%, No condensation |
|
Install altitude |
=3000m |
|
Install location |
Indoor |
|
Installation |
Wall mounted/ Floor mounted/ Stack/ Rack mounted |
|
Certification |
IEC62619 / UN38.3 / CE / CEC |
Product Features
Safe & Reliable
High safety LiFePO4 battery.
Compliance with IEC62619, UN38.3, CE, .
Modular
Support up to 32 units in parallel, scale from 5 kWh to 300kWh configuration without
external controller.
Ultra performance
More than 4000 cycles, self-developed
BMS/Cell/Pack to ensure best quality.
Compact & Flexible
3U(133.5mm) standard height design.
Optional bracket kits for different installation senarios.
Compatibility
Compatible with most hybrid/battery inverter in self- consumption, back-up andoff-grid applications.
Intellegence
Strong pre-charge and balancing capability.
Remote data history & firmware upgrading function via T-smart Cloud platform.

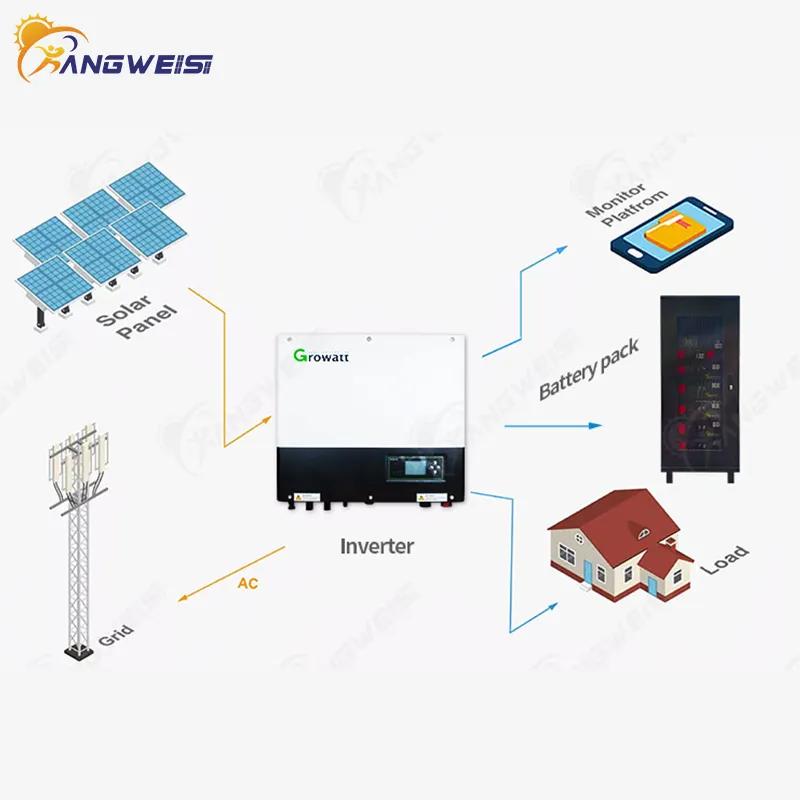

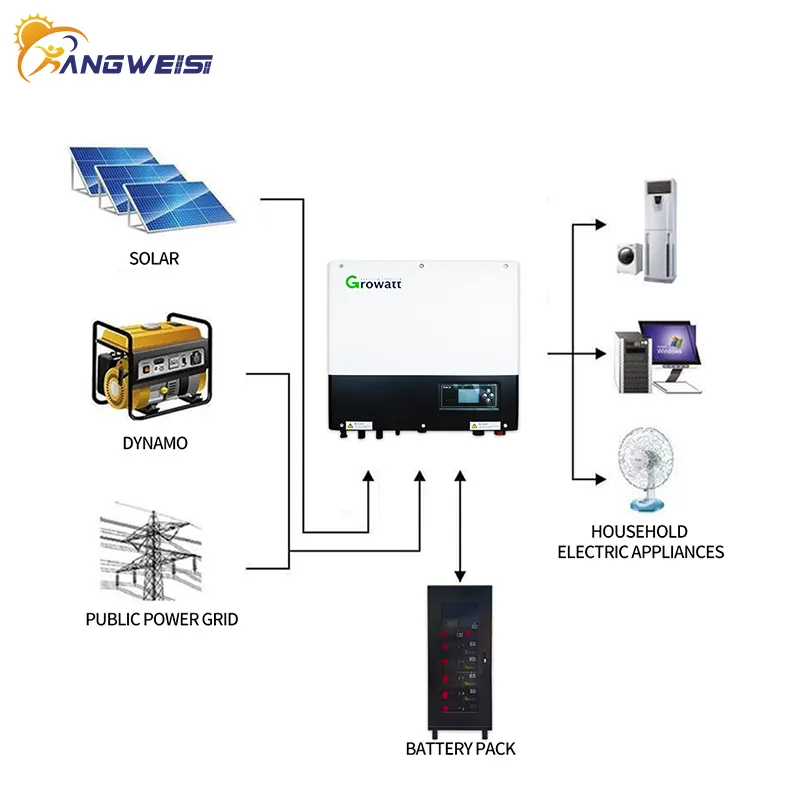

Appliration Scenarios
Simple - efficient - safe - reliable
