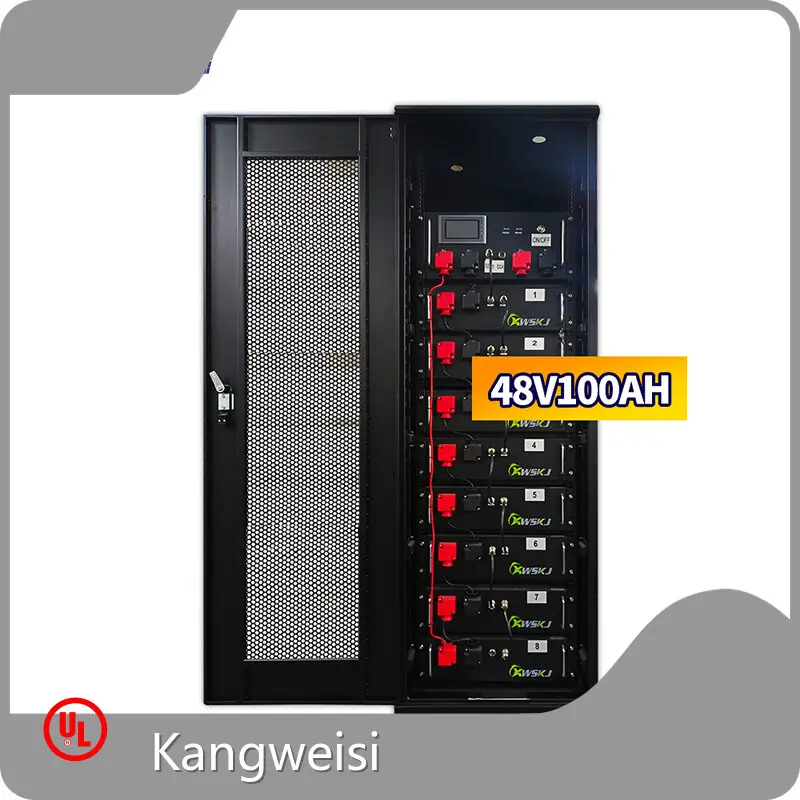

Lithium Battery Supplier KWS Rack Mount Series Kangweisi

Model:
KWS Rack mount Series
Battery Type:
KWS Rack mount Series
Nominal Voltage(V):
51.2V-665.6V
Cycle Life:
>6000. 25°C
Inquiry

Product details of the lithium battery supplier


Product Description

Kangweisi lithium battery supplier has a wide selection of high-quality materials. The service life of this product is highly guaranteed by the strict test procedure which is in line with international standard. It is tested to be high performance and user-friendly. Shenzhen Kangweisi Technology Co., Ltd. has professional production and management personnel.

Product Parameters

Items

K-665.6V400AH

Nominal voltage

665.6V

Nominal capacity

400Ah

Nominal energy

266.24kWh

Usable energy

266kWh

Max. voltage range

603V~738V

Charge voltage

738V

Float voltage

730V

Recommend charge current

200A

Max. charge current

400A

Recommend discharge current

400A

Max. discharge current

1200A

Communication

RS485 /CAN

Peak discharge current

200~400A@3mins | 500~1200A@3S

IP rating

IP20

Cycle life

≥4000 cycles

Net weight

~780kg

Dimension(W*H*D)

600*800*2000mm*4

Cell type

Lithium-iron phosphate (LiFePO4)

Design life

15years

Operation temperature

-10~50℃ (14~122℉)

Storage temperature

-10~45℃ (14~113℉)

Relative humidity

5%~90%, No condensation

Install altitude

=3000m

Install location

Indoor

Installation

Wall mounted/ Floor mounted/ Stack/ Rack mounted

Certification

IEC62619 /  UN38.3 / CE  / CEC

Product Features

Safe & Reliable

High safety LiFePO4  battery.

Compliance with IEC62619,  UN38.3, CE,  .

Modular

Support up to 32 units in parallel, scale from 5 kWh to 300kWh configuration without

external controller.

Ultra performance

More than 4000 cycles, self-developed

BMS/Cell/Pack to ensure best quality.

Compact & Flexible

3U(133.5mm) standard height design.

Optional bracket kits for different installation senarios.

Compatibility

Compatible with most hybrid/battery inverter in self- consumption, back-up andoff-grid applications.

Intellegence

Strong pre-charge and balancing capability.

Remote data history & firmware upgrading function via T-smart Cloud platform.

Pro29-10

Appliration Scenarios

Simple - efficient - safe - reliable

Pro7-11 (2)
Pro7-11 (2)
Pro7-12 (2)
Pro7-12 (2)
Pro7-13 (2)
Pro7-13 (2)
Pro7-14 (2)
Pro7-14 (2)
Pro7-15 (2)
Pro7-15 (2)
Pro7-16 (2)
Pro7-16 (2)
Pro7-17 (2)
Pro7-17 (2)
Pro7-18 (2)
Pro7-18 (2)
Pro7-19 (2)
Pro7-19 (2)
Pro7-20 (2)
Pro7-20 (2)
Pro7-21 (2)
Pro7-21 (2)
