Monocrystalline Solar Panel Kangweisi Manufacture TUV 510-560W

Model:
KWS550D
Type:
Mono-Facial 182mm
Storage Power:
144(6*24)
Inverter Power:
510-560W
Certificate:
TUV, ETL, ISO, CE
Inquiry

Product details of the monocrystalline solar panel


Product Information

Kangweisi monocrystalline solar panel is manufactured in an advanced facility that is manned with highly qualified professionals, ensuring smooth production. Through the whole process of strict quality inspection, we ensure product quality to meet industry standards. With so many advantages, the product is highly demanded in many fields.

Product Parameters

Maximum Power(Pmax)

520W

525W

530W

Open-circuit Voltage (Voc)

49.0V

49.2V

49.4V

Maximum Power Voltage(Vmp)

41.2V

41.4V

41.6V

Short-circuit Current (Isc)

13.42A

13.48A

13.54A

Maximum Power Current (Imp)

12.62A

12.68A

12.74A

Solar Panel Efficiency

20.12%

20.31%

20.51%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5



Maximum Power(Pmax)

535W

540W

545W

550W

Open-circuit Voltage (Voc)

49.6V

49.8V

50.0V

50.2V

Maximum Power Voltage(Vmp)

41.8V

42.0V

42.2V

42.4V

Short-circuit Current (Isc)

13.60A

13.66A

13.72A

13.78A

Maximum Power Current (Imp)

12.80A

12.86A

12.91A

12.97A

Solar Panel Efficiency

20.70%

20.89%

21.09%

21.28%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5

Product Features

Higher DurabilityThe

Multi-busbar design can decrease therisk of the cell micro- cracks and fingers broken.

PID Resistant

Tested in accordance to the standard IEC 62804our PV modules have demonstrated resistanceagainst PID (Potential Induced Degradation).which translates to security for your investment.

High Power Density

High conversion efficiency and more power outputpersquare meterby lower series resistance andimproved light harvesting.

Bigger Cells with better performance

A slight increase of the size of our cells, Booststhe performance of the newest modules by sixpercent on average.

Pro10-9

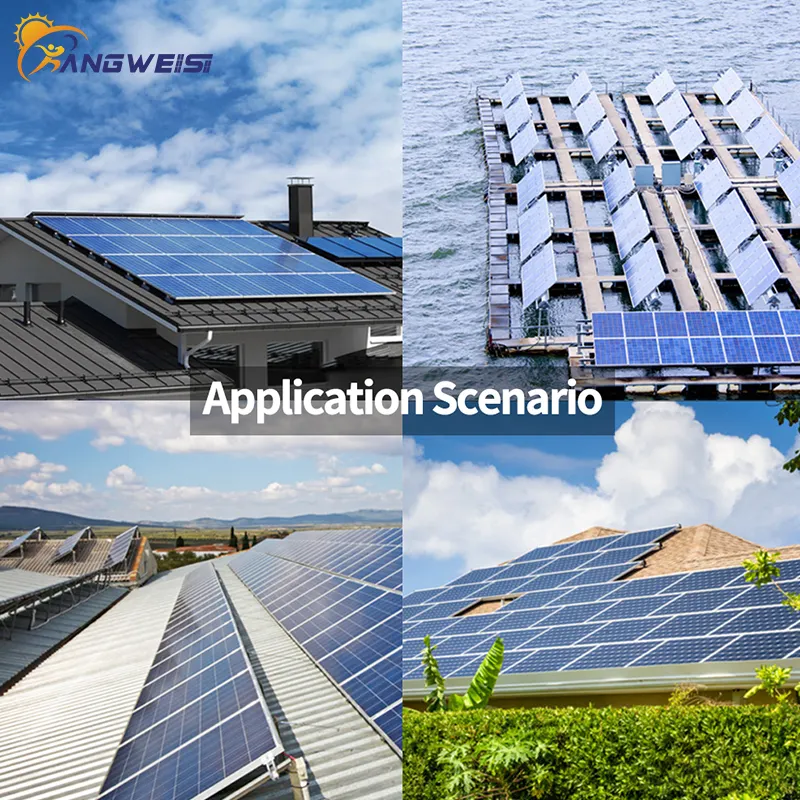

Appliration Scenarios

Simple - efficient - safe - reliable

Pro8-11
Pro8-11
Pro8-12
Pro8-12


Company Feature

• Kangweisi is located in a position where multi traffic lines join up. Therefore, the superior transportation makes contribution to the efficient delivery of various products.
• Kangweisi was founded in After the exploration and development for years, we are the leading company in the industry because of the large scale and strong power.
• Kangweisi's professional and experienced team provides a strong guarantee for rapid development.
• Kangweisi not only pays attention to product sales but also strives to meet the diversified needs of customers. Our goal is to bring customers a relaxing and enjoyable experience.
Consulting and order from friends of all walks of life are welcomed!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
