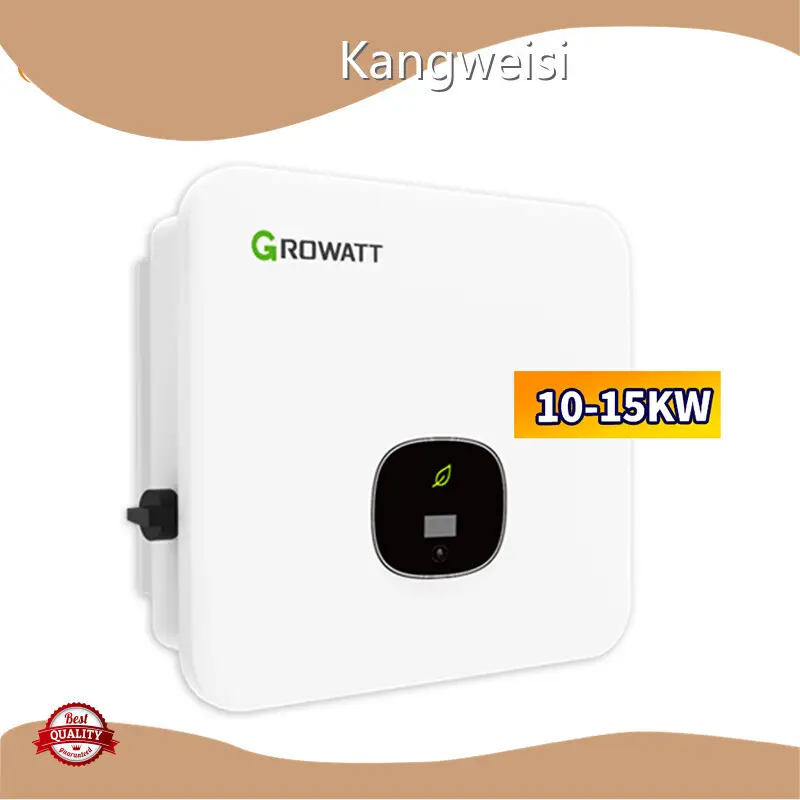

Product details of the on grid hybrid inverter
Quick Overview
The design of Kangweisi on grid hybrid inverter is grounded in thorough research of the existing and target customers. Its performance is tested by potential customers and the market research groups. on grid hybrid inverter has got customer's favorable comment.
Product Information
Our on grid hybrid inverter is more competitive than similar products, as shown in the following aspects.
Product Parameters
Model Type |
MOD 5000KTL3-X |
MOD 10KTL3-X |
MOD 15KTL3-X |
Input Data(DC) |
|||
Max.recommended PV power (for modules STC) |
7500W |
15000W |
22500W |
Max.DC voltage |
1100V |
||
Start voltage |
200V |
||
Nominal voltage |
580V |
||
MPP voltage range |
140V-1000V |
||
No.of MPP trackers |
2 |
||
No.of PV string per MPP tracker |
1 |
1 |
2/1 |
Max.input current per MPP tracker |
13A |
26A/13A |
|
Max.short-circuit current per MPP tracker |
16A |
32A/16A |
|
Output Data(AC) |
|||
AC nominal power |
5000W |
10000W |
15000W |
Max.AC apparent power |
5000VA |
11000VA |
16500VA |
Nominal AC voltage range |
220V/380V,230V/400V(340-440V) |
||
AC grid frequency range |
50/60Hz(45-55Hz/55-65Hz) |
||
Max.output current |
8.3A |
16.7A |
25A |
Adjustable power factor |
0.8 leading…0.8 lagging |
||
THDi |
﹤3% |
||
AC grid connection type |
3W+N+PE |
||
Efficiency |
|||
Max.efficiency |
98.30% |
98.60% |
|
European efficiency |
97.50% |
98.10% |
98.20% |
MPPT efficiency |
99.90% |
||
Protection Devices |
|||
DC reverse polarity protection |
yes |
||
DC switch |
yes |
||
AC/DC surge protection |
Type II/Type III |
||
Insulation resistance monitoring |
yes |
||
AC short-circuit protection |
yes |
||
Ground fault monitoring |
yes |
||
Grid monitoring |
yes |
||
Anti-islanding protection |
yes |
||
Residual-current monitoring unit |
yes |
||
AFCI protection |
Optional |
||
General Data |
|||
Dimensions(W/H/D) |
425x387x147mm |
425x387x178mm |
|
Weight |
12.5kg |
14kg |
16kg |
Operating temperature range |
-25℃-+60℃ |
||
Nighttime power consumption |
﹤1W |
||
Topology |
Transformerless |
||
Cooling |
Natural convection |
||
Protection degree |
IP 66 |
||
Relative humidity |
0-100% |
||
Altitude |
4000m |
||
DC connection |
H4/MC4 (Optional) |
||
AC connection |
Connector |
||
Display |
OLED+LED/WIFI+APP |
||
Interfaces:RS485/USB/WIFI/GPRS/RF/LAN |
Yes/Yes/Optional/Optional/Optional/Optional |
||
Warranty:5 years/10 years |
Yes/Optional |
||
CE,VDE0126,Greece,EN50549,C10/C11,UTE C 15-712,IEC62116,IEC 60068,IEC 61683,CEI0-21,N4105,TOR Erzeuger,G98/G99,G100,AS4777,UNE217001,UNE206007,PO12.2 |
Product Features
User Friendly
- OLED display, touch keys
- Natural cooling, no noise, maintenance-free
Highly efficient power generation
- Maximum conversion efficiency 98.6 per cent
- Dual MPPT
- DC overmatching 1.5 times
Safe and Reliable
- AC and DC secondary lightning protection
- Optional AFCI
- Flexible monitoring mode, intelligent one-key diagnosis
Appliration Scenarios
Simple - efficient - safe - reliable
