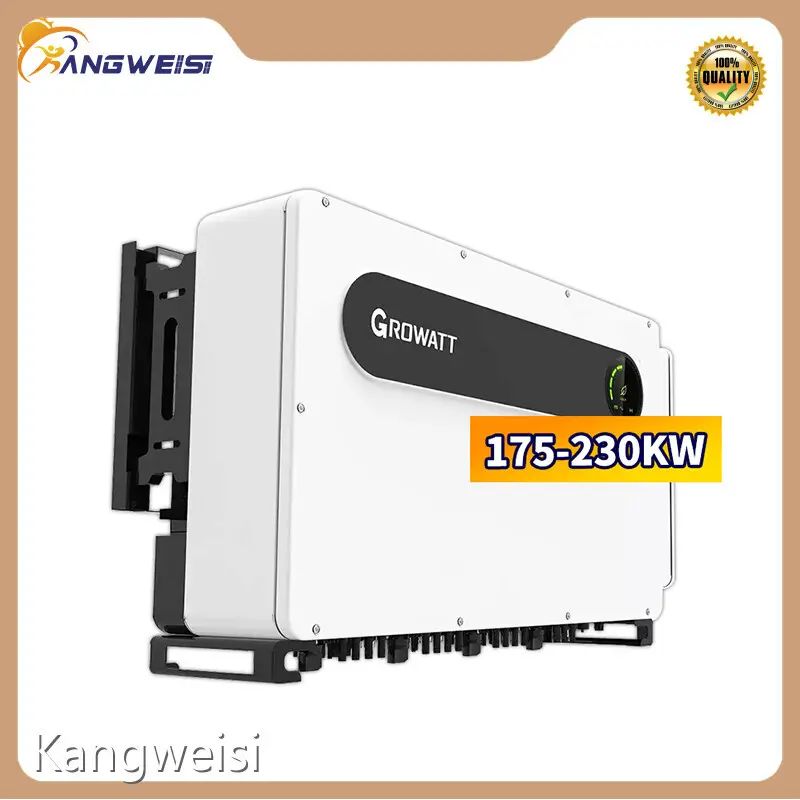

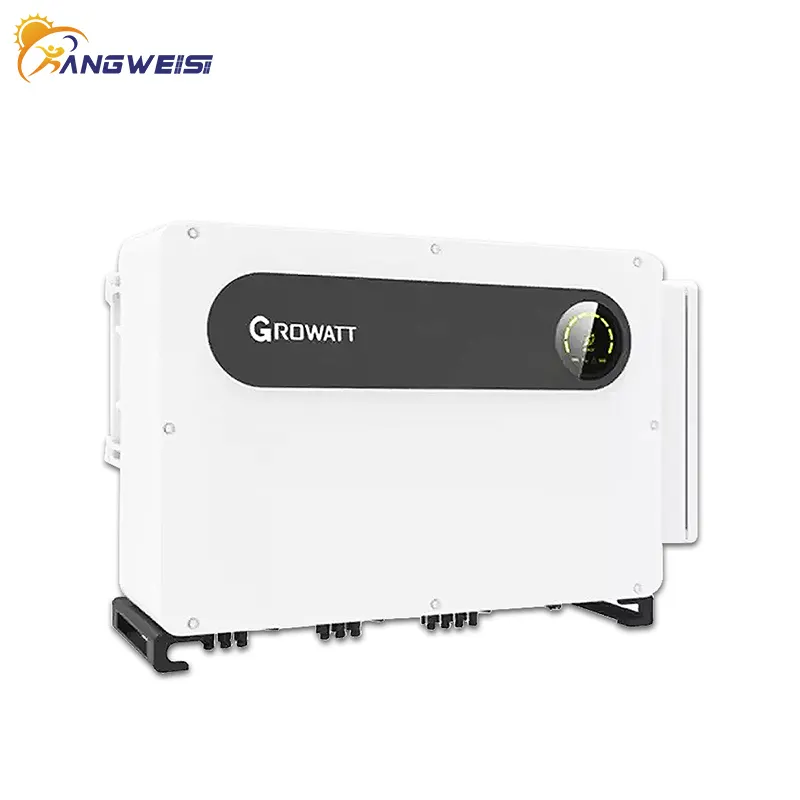

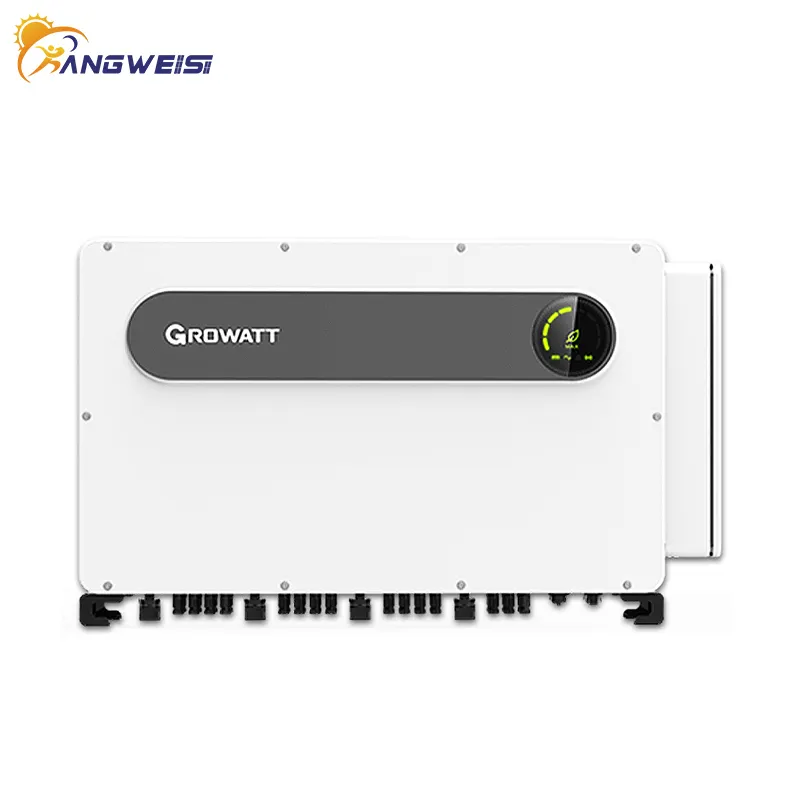

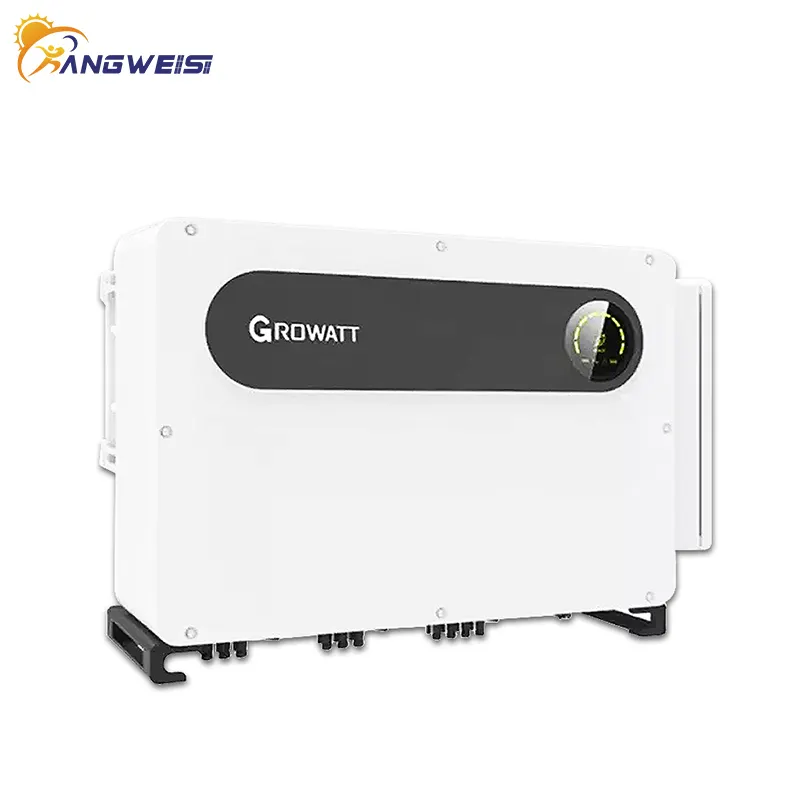

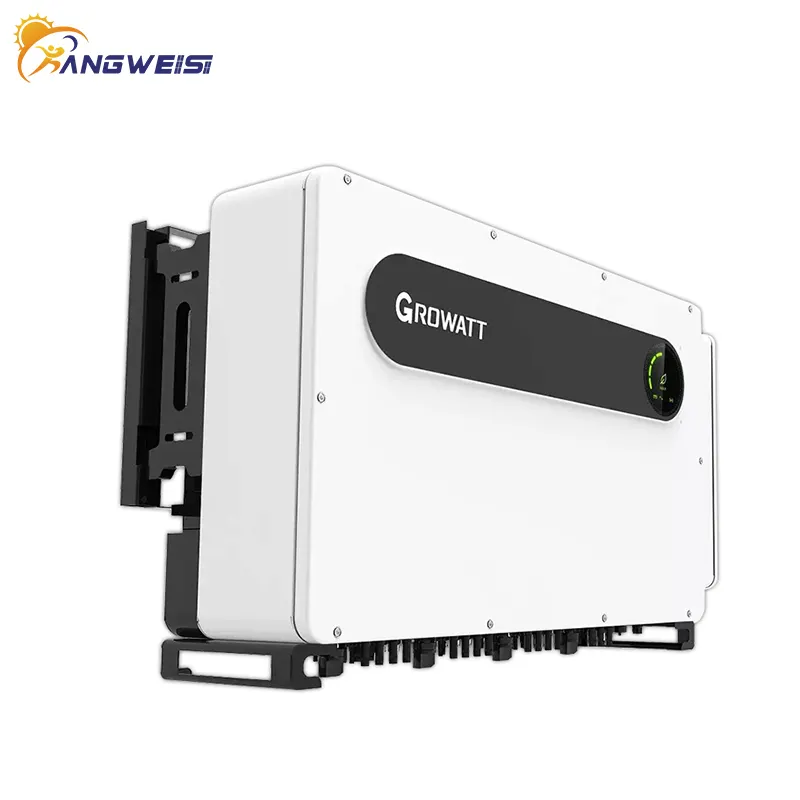

Product details of the on grid inverter solar
Product Information
on grid inverter solar is produced by safe and environmentally-friendly raw material. Its reliable performance outperforms similar products in the industry. The product has been widely well-known and has gained buyer's recognition in overseas market.
Product Parameters
Datasheet |
MAX 185KTL3-X HV |
MAX 216KTL3-X HV |
MAX 250KTL3-X HV |
MAX 253KTL3-X HV |
No. Of MPP Trackers |
9 |
9 |
12 |
15 |
AC Nominal Power |
185KW |
216KW |
250KW |
253KW |
Max. AC Apparent Power |
185KVA@30°C |
216KVA@30°C |
250KVA@30°C |
253KVA@30°C |
175KVA@40°C |
200KVA@40°C |
230KVA@45°C |
230KVA@45°C |
|
160KVA@50°C |
192KVA@50°C |
220KVA@50°C |
220KVA@50°C |
|
Max. Output Current |
133.5A |
155.9A |
180.4A |
182.6A |
European Efficiency |
98.70% |
98.70% |
98.70% |
98.50% |
Weight |
95kg |
95kg |
99kg |
109kg |
Protection Degree |
IP66 |
IP66 |
IP66 |
IP66 |
Relative Humidity |
0-100% |
0-100% |
0-100% |
0-100% |
Display |
LED/WIFI+APP |
LED/WIFI+APP |
LED/WIFI+APP |
LED/WIFI+APP |
Features
Highly efficient power generation
- Maximum conversion efficiency of 99 per cent
- Maximum 15-channel MPPT design, adapting to complex application scenarios.
- Maximum MPPT input current of 30A, suitable for high power modules.
Save cost of electricity
- Support string two-convergence one access, save DC cable cost.
- Support large diameter aluminium cable access, saving AC cable cost.
- Support PLC communication, saving communication cable and construction cost.
Safe and Reliable
- AC and DC secondary lightning protection
- IP66 protection level
- String monitoring and IV curve scanning, accurate positioning of abnormal strings.
- Optional PID function

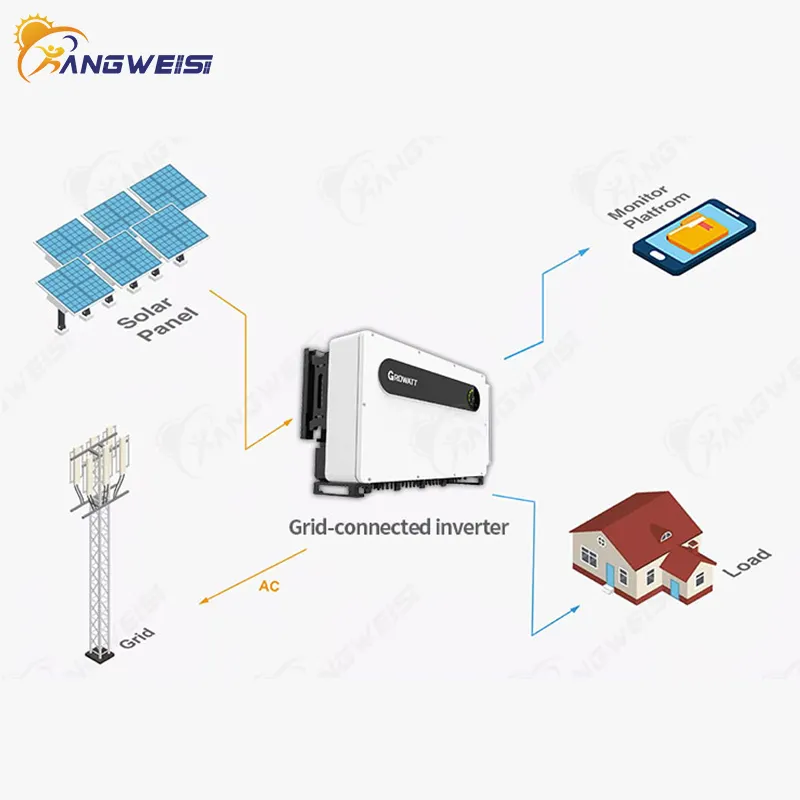

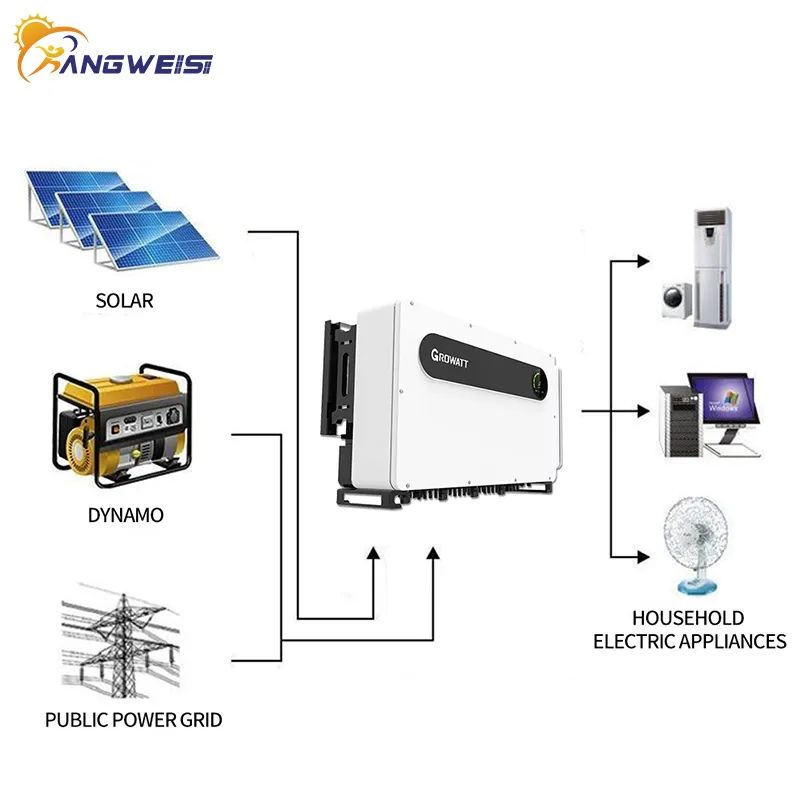

Appliration Scenarios
Simple - efficient - safe - reliable
Company Advantage
• Our company enjoys the advantaged location. The transportation here is much convenient because the roads, railways, and airports are all available.
• Based on network operation, Kangweisi has opened up a wider domestic and international market, greatly increased the market share and broadened the sales scope.
• After years of exploration and development, Kangweisi accumulates rich industry experience and enjoys a high popularity in the industry.
• Guided by consumers, we seek innovative services from the details, meet consumers' pursuit of quality service, and do our best to provide quality and caring services for the public.
For more service terms and maintenance cost, please feel free to contact Kangweisi.
