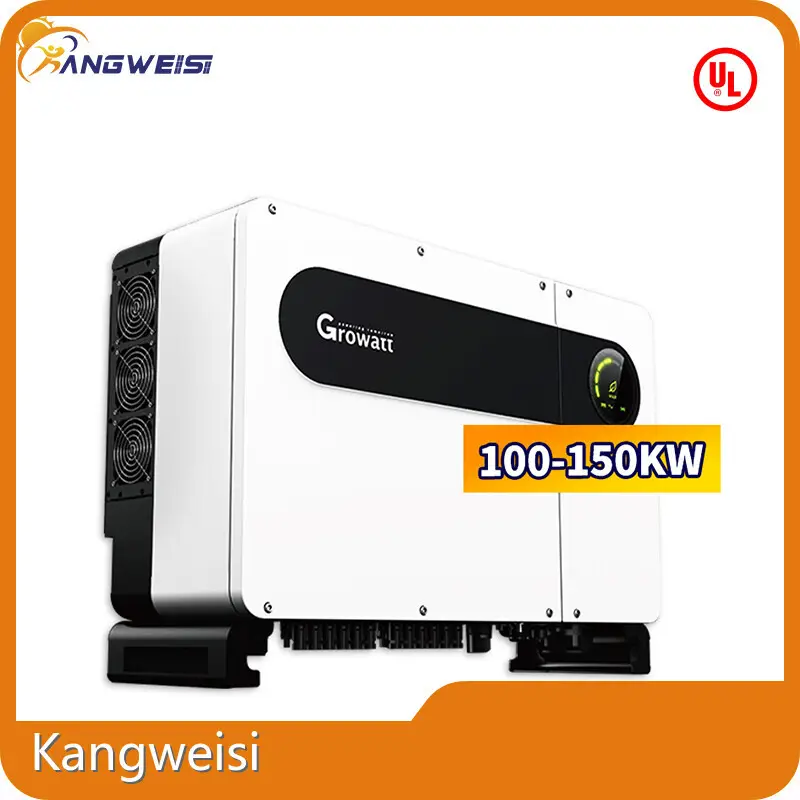

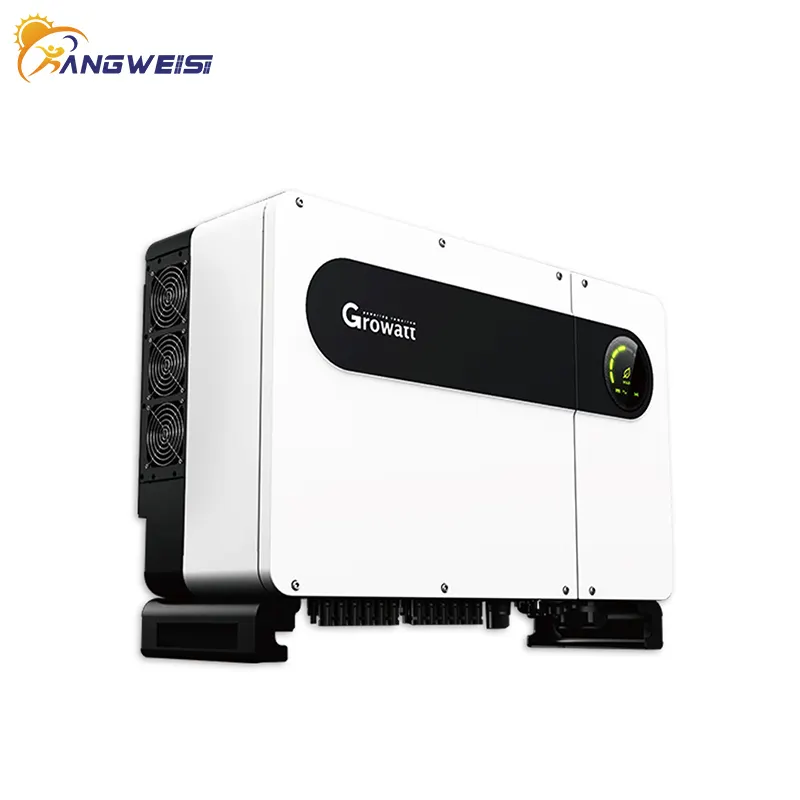

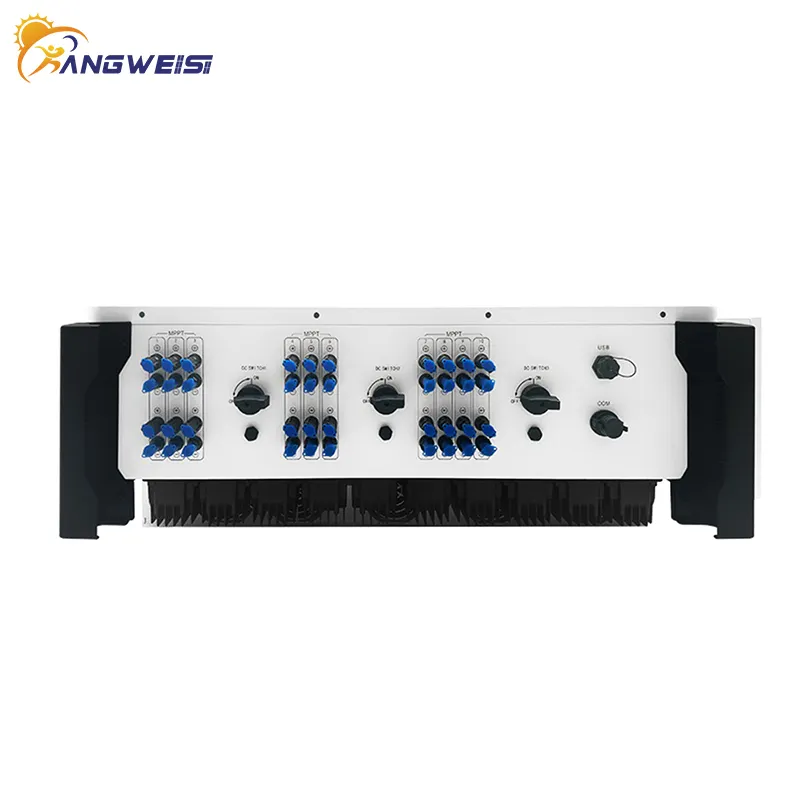

On Grid Inverters on-Grid Growatt MAX 100~125KTL3-X2 LV on Grid Inverters ISO Company
Company Advantages
· With the help of our skilled engineers, Kangweisi on grid inverters has been given an innovative, aesthetically-appealing and useful design.
· Ultraviolet light will make the dyed items fade after a long time exposing, however, this product produces nearly zero UV radiation owing to its diffuser.
· The product is in high demand at home and abroad thanks to its considerable economic benefits.
6KW Off-Grid Solar Power System
|
Datasheet |
MAX 100KTL3-X2 LV |
MAX 110KTL3-X2 LV |
MAX120KTL3-X2LV |
MAX 125KTL3-X2 LV |
|
Input Data (DC) |
||||
|
Max. DC voltage |
1100V |
|||
|
Start voltage |
195V |
|||
|
Nominal voltage |
600V |
|||
|
MPP voltage range |
180V-1000V |
|||
|
No. of MPP trackers |
8 |
|||
|
No. of PV strings per MPP tracker |
2 |
|||
|
Max. input current per MPP tracker |
45A |
|||
|
Max. short-circuit currentper MPP tracker |
56.5A |
|||
|
Output Data (AC) |
||||
|
AC nominal power |
100000W |
110000W |
120000W |
125000W |
|
Max. AC apparent power |
110000VA |
121000VA |
132000VA |
137500VA |
|
Nominal AC voltage (range*) |
220V/380V, 230V/400V (340-440V) |
|||
|
AC grid frequency (range*) |
50/60 Hz(45~55Hz/55-65 Hz) |
|||
|
Max. output current
|
158.8A @400V |
174.6A @400V |
190.5A @400V |
198.5A@400V |
|
167.1A@380V |
183.8A@380V |
200.5A@380V |
208.9A@380V |
|
|
Adjustable power factor |
0.8leading ...0.8lagging |
|||
|
THDi |
<3% |
|||
|
AC grid connection type |
3W/N/PE |
|||
|
Efficiency |
||||
|
Max.efficiency |
98.8% |
|||
|
European efficiency |
98.4% |
|||
|
MPPT efficiency |
99.9% |
|||
|
Protection Devices |
||||
|
DC reverse polarity protection |
Yes |
|||
|
DC switch |
Yes |
|||
|
AC/DC surge protection |
Type II / Type II |
|||
|
Insulation resistance monitoring |
Yes |
|||
|
AC short-circuit protection |
Yes |
|||
|
Ground fault monitoring |
Yes |
|||
|
String detection |
Yes |
|||
|
Anti-PID function |
Optional |
|||
|
Arc fault detection (AFCI) |
Optional |
|||
|
General Data |
||||
|
Dimensions (W / H / D) |
970/640/345mm |
|||
|
Weight |
84kg |
|||
|
Operating temperature range |
–30°C ... +60°C |
|||
|
Nighttime power consumption |
< 1W |
|||
|
Topology |
Transformerless |
|||
|
Cooling |
Smart air cooling |
|||
|
Protection degree |
IP66 |
|||
|
Relative humidity |
0~100% |
|||
|
Altitude |
4000m |
|||
|
DC connection |
H4/MC4 (Max.6mm²) |
|||
|
AC connection |
OT Terminal (Max. 240mm²) |
|||
|
Display |
LED/WIFI+APP |
|||
|
Interfaces: RS485/USB/PLC/GPRS/4G/WiFi |
Yes/Yes/Optional/Optional/Optional/Optional |
|||
|
Warranty: 5 years / 10 years |
Yes /Optional |
|||
Features
High efficiency power generation
- 8-channel MPPT design, adapting to complex application scenarios
- MPPT current 45A, support high power module access
- 1.5 times DC over allocation
Safe and Reliable
- Optional PID function
- Optional AFCI function
- String detection and IV curve scanning to accurately locate abnormal strings.
Reduce power cost
- Supports two-convergence and one-convergence string access, saving DC cable cost.
- Support large diameter aluminium cable access, saving AC cable cost.
- Supports PLC communication, saving communication cable and construction cost.

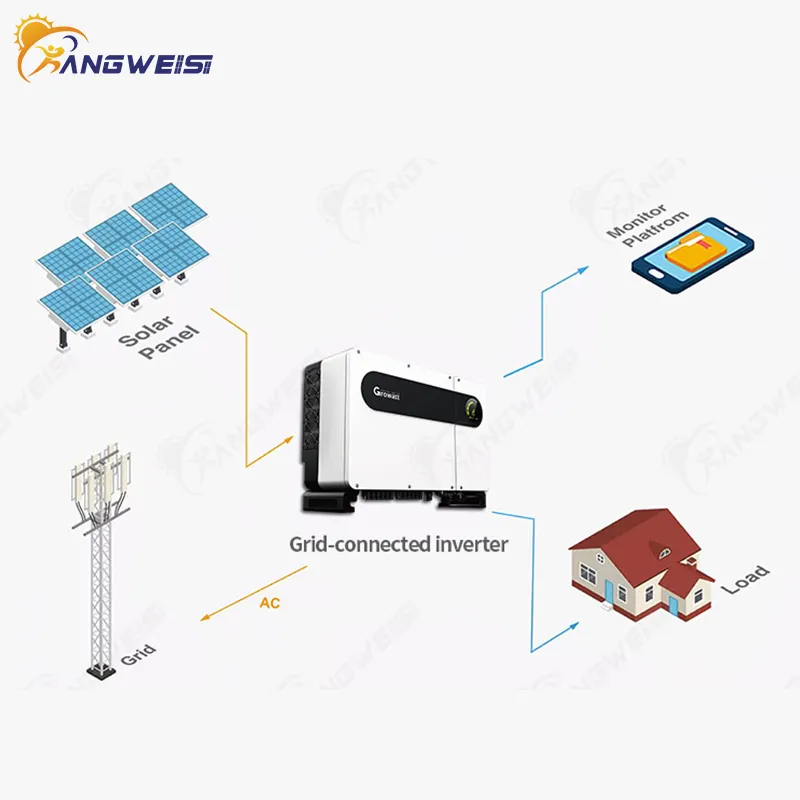

Appliration Scenarios
Simple - efficient - safe - reliable
Company Features
· Shenzhen Kangweisi Technology Co., Ltd. has a large manufacture base for the production of on grid inverters.
· We have a plant with a full line of advanced imported facilities. This can guarantee that we can finish the order ahead of schedule and giving more flexibility in delivery schedules. We have attracted many new customers worldwide in recent years. They are satisfied with the product have been maintaining stable business cooperations with our company. We have grown steadily in size and profit in the overseas on grid inverters markets, and often win the endorsements of many well-known brands at home and abroad. We will continue to expand the overseas markets.
· In the production stages, we make efforts in making full use of resources. We introduce cutting-edge machinery and facilities to reduce resources consumption, such as water, electricity, and product materials.

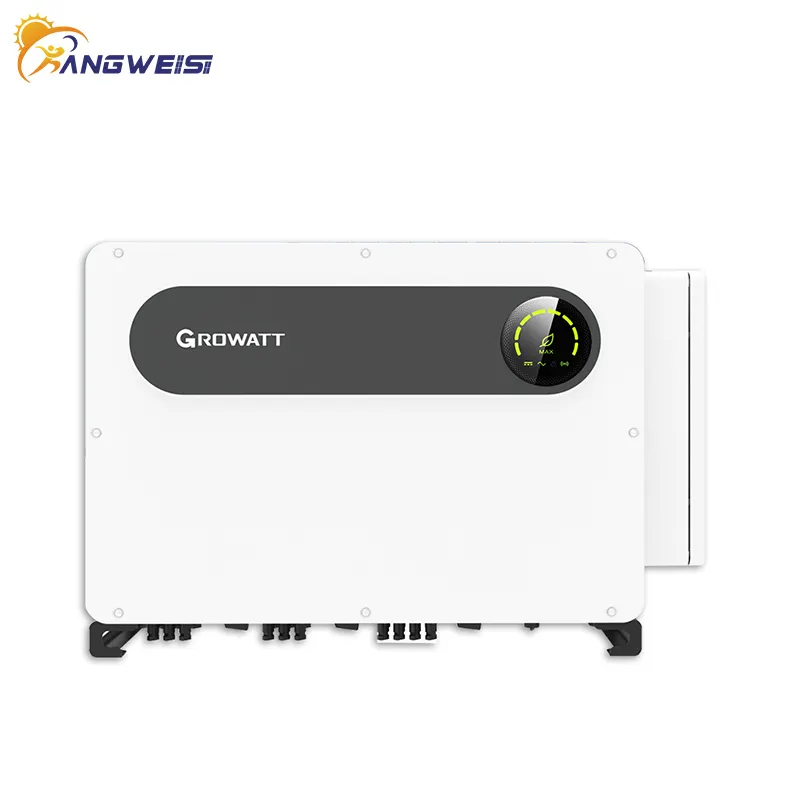

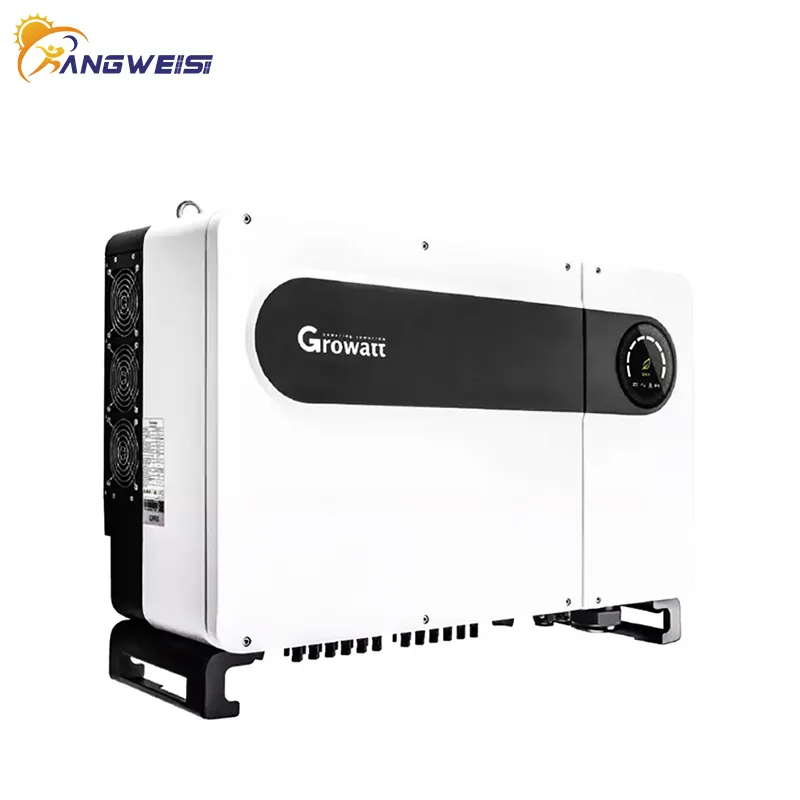

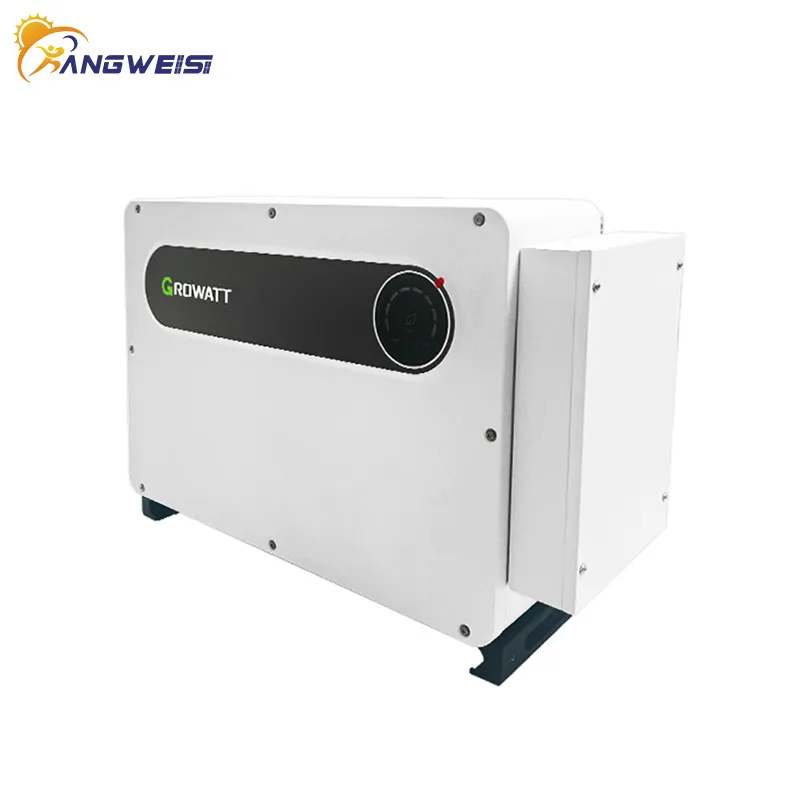

Product Details
The details of on grid inverters are shown for you at below.

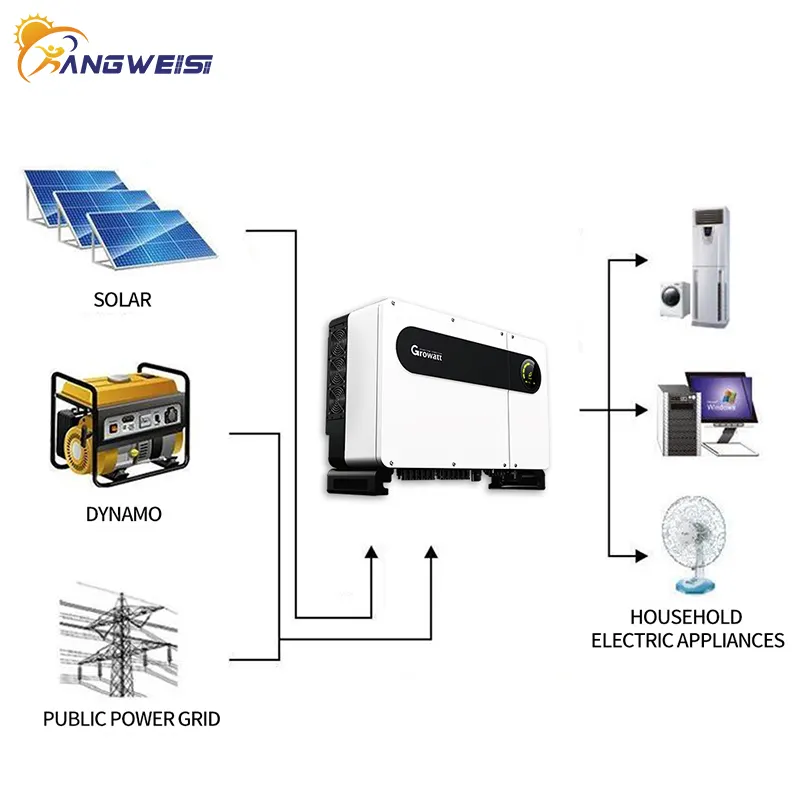

Application of the Product
Kangweisi's on grid inverters is widely used in the industry.
We will communicate with our customers to understand their situations and provide them with effective solutions.
Product Comparison
Supported by advanced technology, our on grid inverters has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.
Enterprise Advantages
Based on the reinforcement of team building, our company created an excellent team with cohesion, creativity and execution.
Our company provides excellent service for all customers in the principle of 'customer first'.
Our company will always adhere to the 'patriotic and law-abiding, honest and trustworthy, credibility first' as our business philosophy, and carry forward the enterprise spirit of 'strong, persistent, tenacious'. Firmly sticking to the path of industrial development, we will build a first-class brand, and continuously provide customers with quality products and caring services.
After years of stable development, Kangweisi has gained a good recognition and support in the industry.
Kangweisi's products are mainly exported to Europe and the United States. They are highly praised by local businesses and users.
