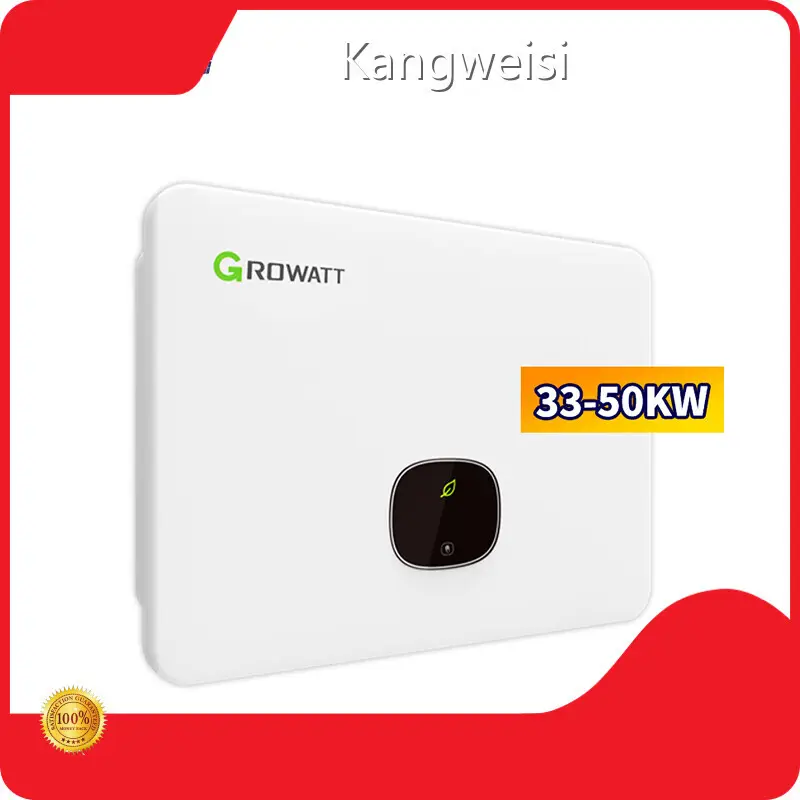

On Grid Power Inverter CE Western Union MID 25-40KTL3-X Kangweisi Brand Company
Product details of the on grid power inverter
Quick Detail
on grid power inverter is excellent in outlook as you can see by pictures. The product is featured by excellent performance and reliable quality. Our on grid power inverter collection is distributed in many countries.
Product Description
Compared with the on grid power inverter of our peers, the on grid power inverter we produce is provided with the following advantages.
6KW Off-Grid Solar Power System
|
Datasheet |
MID 25KTL3-X1 |
MID 30KTL3-X |
MID 33KTL3-X |
MID 36KTL3-X |
MID40KTL3-X |
|
Input Data (DC) |
|||||
|
Max. recommended PV power (for module STC) |
37500W |
45000W |
49500W |
54000W |
60000W |
|
Max. DC voltage |
1100V |
||||
|
Start Voltage |
250V |
||||
|
Normal Voltage |
600V |
||||
|
MPPT voltage range |
200-1000V |
||||
|
No. of MPP trackers/strings per MPP tracker |
3 |
3 |
3 |
4 |
4 |
|
Max.input current per MPP tracker |
26A |
||||
|
Max. short-circuit current per MPP tracker |
32A |
||||
|
Output Data (AC) |
|||||
|
Rated AC output power |
25000W |
30000W |
33000W |
36000W |
40000W |
|
Max. AC apparent power |
27700VA |
33300VA |
36600VA |
39600VA |
44000VA |
|
Nominal AC voltage(range*) |
220V/380V, 230V/400V (340-440V) |
||||
|
AC grid frequency;(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
||||
|
Max. output current |
40A |
50.5A |
55.5A |
60.0A |
66.6A |
|
Adjustable power factor |
0.8 leading - 0.8 lagging |
||||
|
THDi |
<3% |
||||
|
AC grid connection type |
3W+N+PE |
||||
|
Efficiency |
|||||
|
Max.efficiency |
98.8% |
||||
|
European efficiency |
98.5% |
||||
|
MPPT efficiency |
99.9% |
||||
|
General Data |
|||||
|
Dimensions (W / H / D) |
580/435/230mm |
||||
|
Weight |
29.5kg |
29.5kg |
29.5kg |
30.5kg |
30.5kg |
|
Self-Consumption (night) |
<1W |
||||
|
Operating temperature range |
–25 °C ... +60 °C |
||||
|
Topology |
Transformerless |
||||
|
Cooling |
Smart air cooling |
||||
|
Protection degree |
IP65 |
||||
|
Relative Humidity |
0~100% |
||||
|
Altitude |
4000m |
||||
|
DC connection |
H4/MC4(Optional) |
||||
|
AC connection |
Cable gland+OT terminal |
||||
|
Display |
OLED+LED/WIFI+APP |
||||
|
Interfaces: RS485 / USB /WiFi/ GPRS / RF/ LAN |
Yes/Yes /Optional/Optional/Optional/Optional |
||||
|
Warranty: 5 years / 10 years |
Yes/Optional |
||||
Product Features
Efficient Power Generation
- 3/4 way MPPT
- DC overmatching 1.5 times
- 32A high current MPPT, suitable for 182/210 modules.
- Maximum conversion efficiency of 98.8%
Safe and Reliable
- Built-in AC/DC secondary lightning protection
- IP66 protection grade
- Intelligent air-cooling
Intelligent monitoring and maintenance
- High precision string monitoring
- Intelligent IV curve scanning
- Multiple monitoring methods, intelligent one-key diagnosis
Appliration Scenarios
Simple - efficient - safe - reliable
