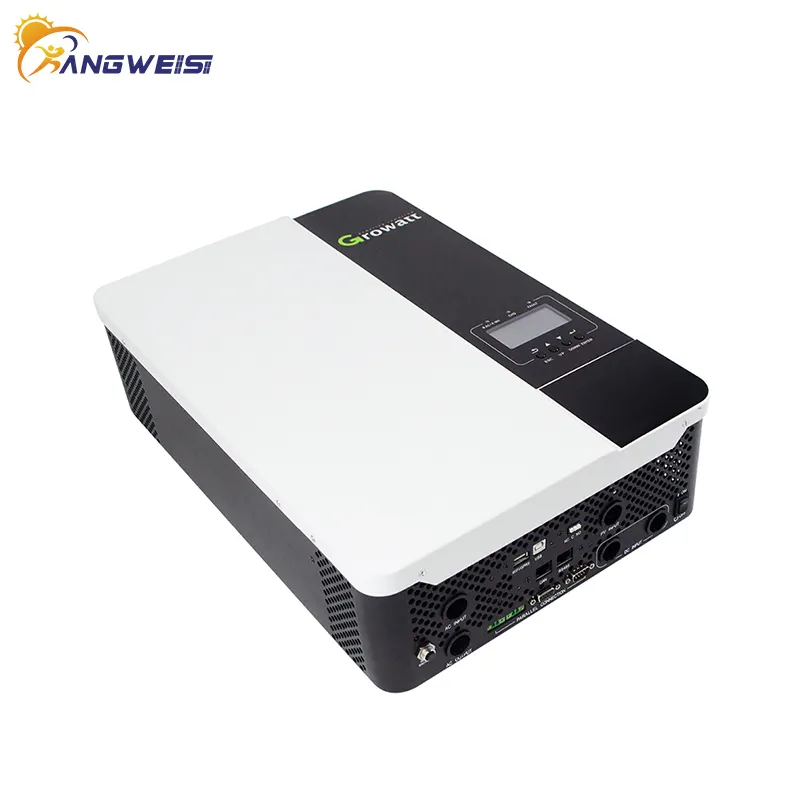

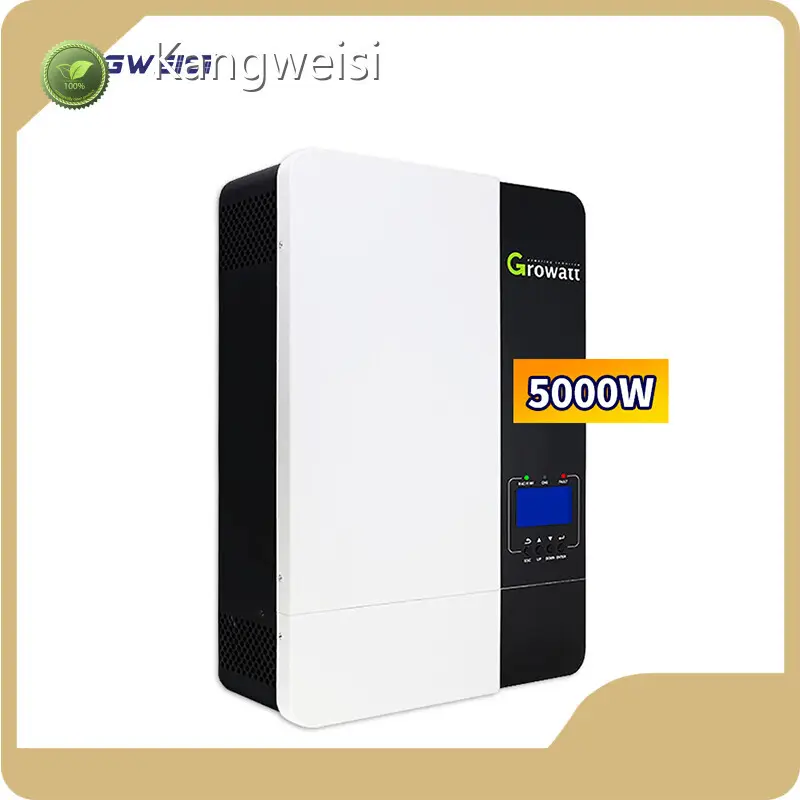

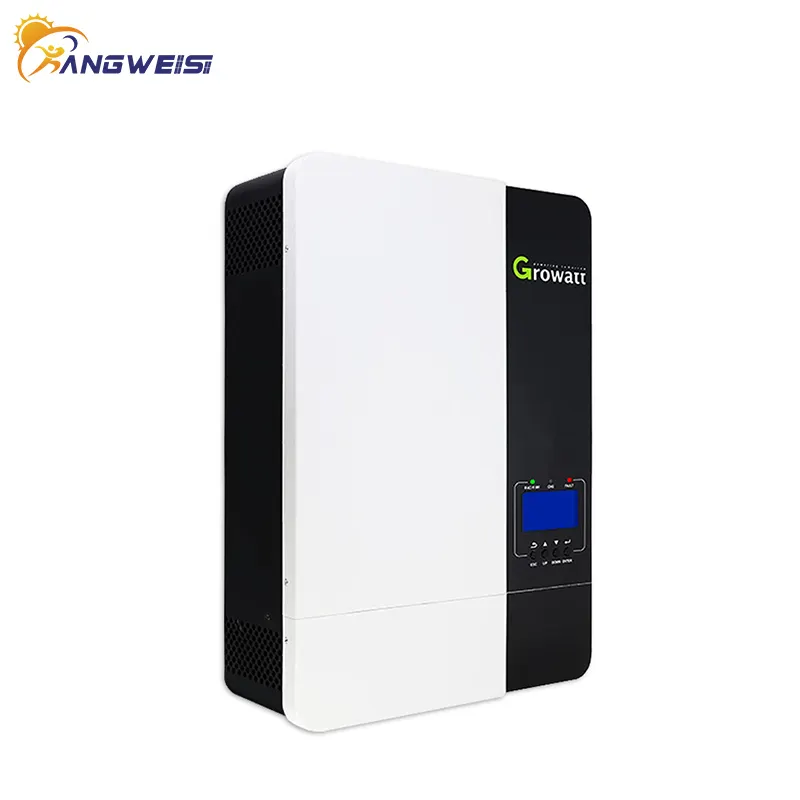

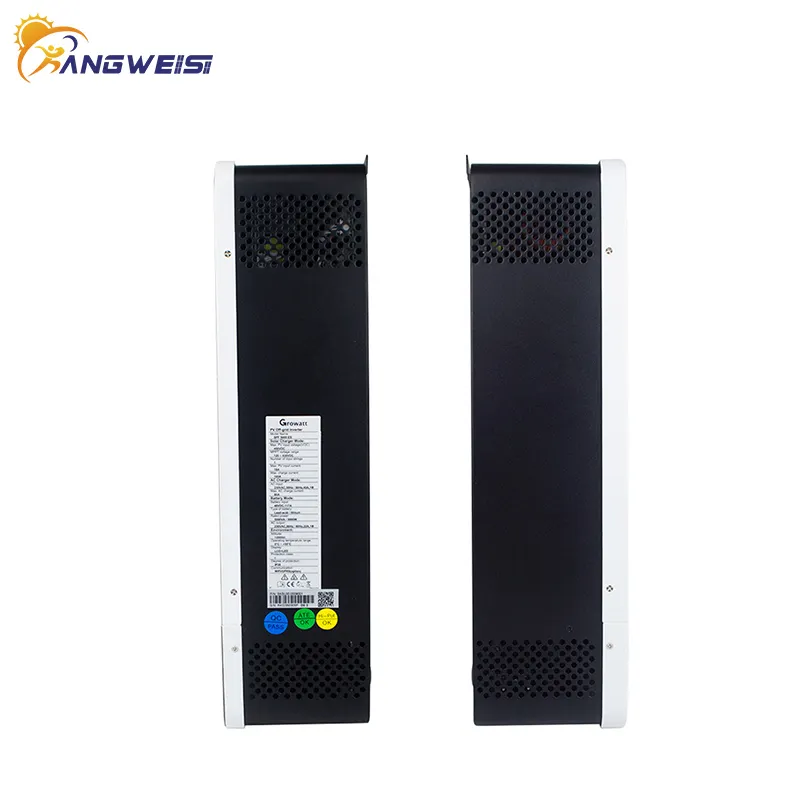

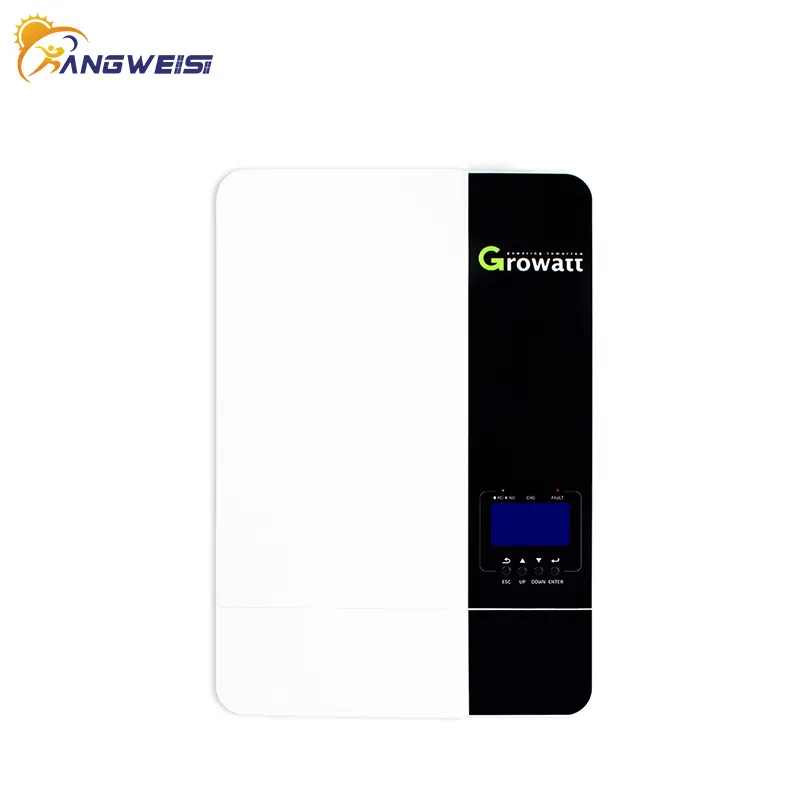

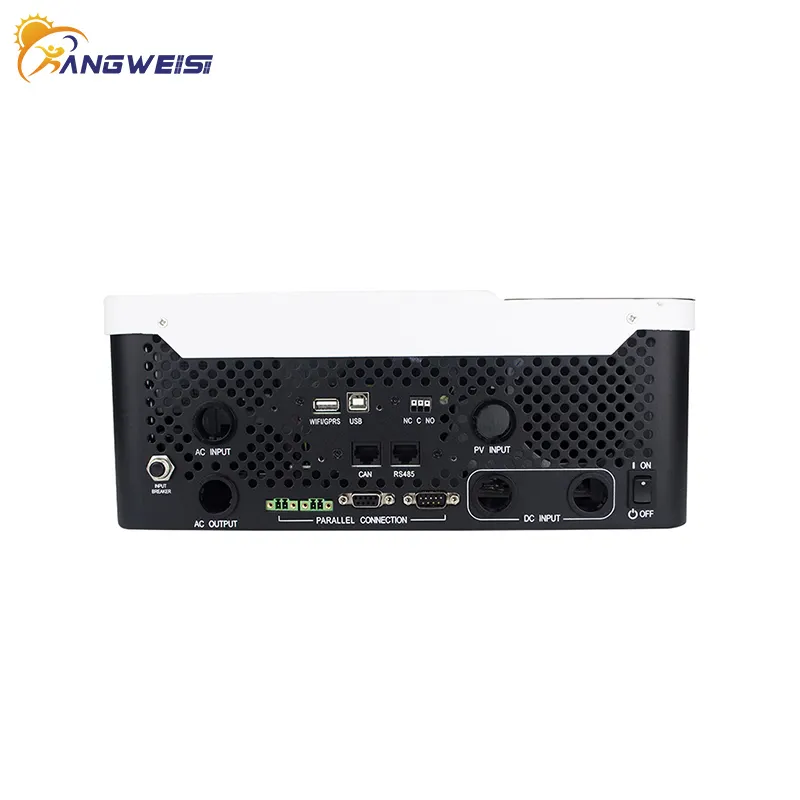

Quality Kangweisi Brand Solar Off Grid Inverter EU Tandard
Product details of the solar off grid inverter
Product Description
Kangweisi solar off grid inverter is manufactured by our experts utilizing optimum quality raw materials with the help of advanced technology. Strict quality control process runs through the whole production process and eliminates the possible defects. The betterment and confirmation of this product help meet the requirements of consumers.
Product Parameters
|
Datasheet |
SPF 3500 ES |
SPF 5000ES |
|
Battery Voltage |
48VDC |
|
|
Battery Type |
Lithium/Lead-acid |
|
|
INVERTER OUTPUT |
||
|
Rated Power |
3500VA/3500W5000VA/5000W |
|
|
Parallel Capability |
Yes,6 units maximum |
|
|
AC Voltage Regulation (Battery Mode) |
230VAC±5%@50/60Hz |
|
|
Surge Power |
7000VA10000VA |
|
|
Efficiency (Peak) |
93% |
|
|
Waveform |
Pure sine wave |
|
|
Transfer Time |
10ms typical.20ms Max |
|
|
SOLAR CHARGER |
||
|
Maximum PV Array Power |
4500W |
6000W |
|
MPPT Range @ Operating Voltage |
120VDC~430VDC |
|
|
Number of Independent MPP Trackers/Strings Per 3MpP Tracker |
1/1 |
|
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
|
Maximum Solar Charge Current |
80A |
100A |
|
AC CHARGER |
||
|
Charge Current |
60A80A |
|
|
AC Input Voltage |
230 VAC |
|
|
Selectable Voltage Range |
170-280 VAC(For Personal Computers); 90-280 VAC(For Home Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
PHYSICAL |
||
|
Protection Degree |
IP20 |
|
|
Dimension (W/H/D) |
330/485/135mm |
330/485/135mm |
|
Net Weight |
11.5kgs |
12kgs |
|
OPERATING ENVIRONWENT |
||
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
|
A1titude |
<2000m |
|
|
Operating Temperature |
0°C-55°C |
|
|
Storage Temperature |
-15°C-60°C |
|
Features
Efficient Power Generation.
- DC overmatching 1.2 times
- 2x surge power
- Power factor up to 1.0
Flexible Expansion
- Up to 6 units in parallel
- Multiple customisation modes for different scenarios
- Compatible with lithium batteries, lead-acid batteries and gel batteries
Intelligent and reliable
- Remote monitoring via WiFi and GPRS
- Local commissioning with PVkeeper platform
- Flexible charging and discharging times

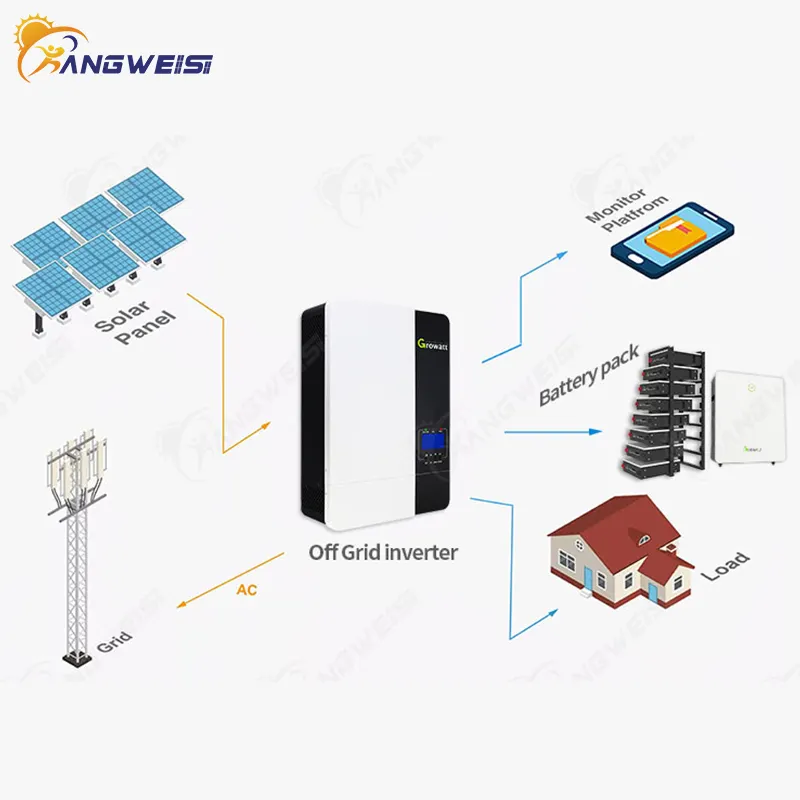

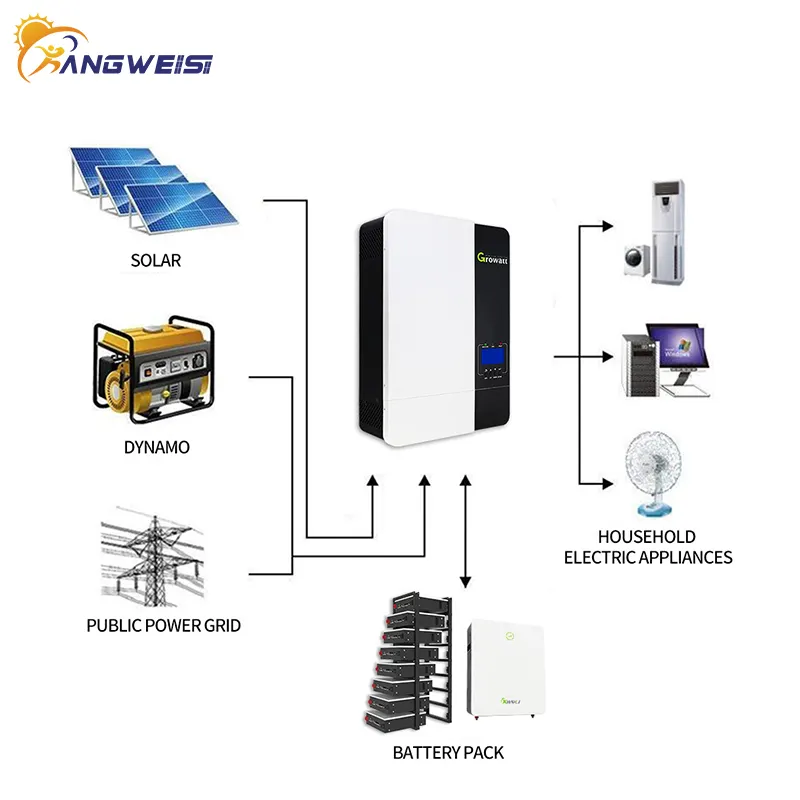

Appliration Scenarios
Simple - efficient - safe - reliable
