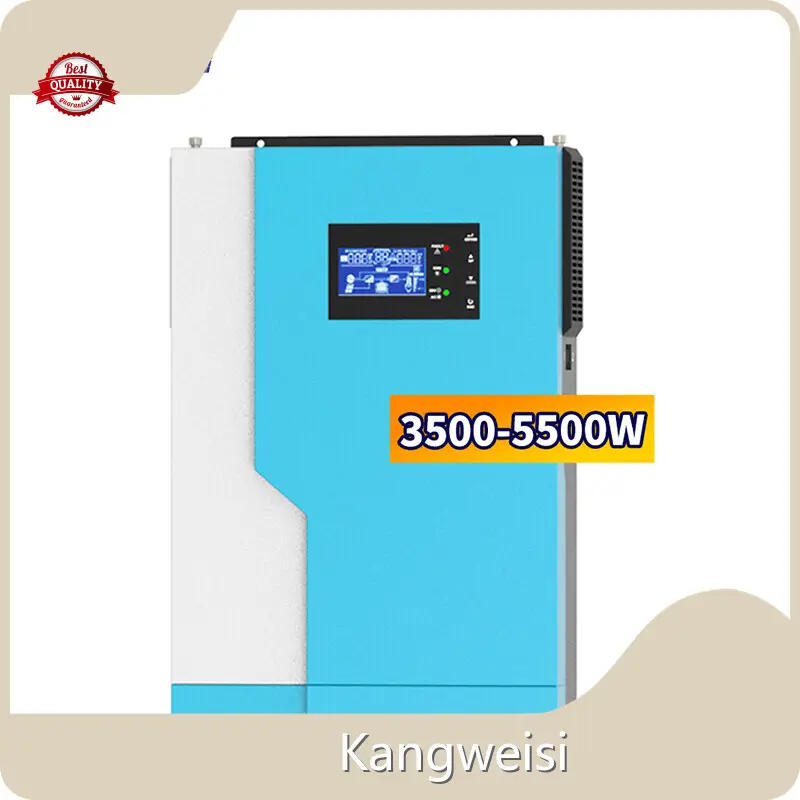

Solar Off Grid Inverter 3.6-5.5KW ISO Solar Off Grid Inverter Off-Grid Kangweisi Brand
Product details of the solar off grid inverter
Product Overview
Conforming to the design standard, Kangweisi solar off grid inverter has an appealing appearance. The performance of the product is optimized through the process improvement. The product brings huge economic benefits to customers.
Product Description
Compared with ordinary products, Kangweisi's solar off grid inverter has the following advantages in details
KWSKJ Grid-tied Solar System Configuration
|
Model |
KWSKJ KZL2435S100-H |
KWSKJ KZL4855S100-H |
||||
|
RATED |
POWER |
3500VA/3500W |
5500VA/5500W |
|||
|
Input |
||||||
|
Voltage |
230VAC |
|||||
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
|||||
|
90~280VAC(For Home Appliances) |
||||||
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
|||||
|
OUTPUT |
||||||
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|||||
|
Surge Power |
7000VA |
11000VA |
||||
|
Efficiency(Peak)PV to INV |
97% |
|||||
|
Efficiency(Peak)Battery to INV |
94% |
|||||
|
Transfer Time |
10 ms(For Personal Computers);20 ms (For Home Appliances) |
|||||
|
BATTERY & AC CHARGER |
||||||
|
Battery Voltage |
24VDC |
48VDC |
||||
|
Floating Charge Voltage |
27VDC |
54VDC |
||||
|
Overcharge Protection |
33VDC |
63VDC |
||||
|
Maximum Charge Current |
80A |
80A |
||||
|
SOLAR CHARGER |
||||||
|
Maximum PV Array Power |
5000W 6000W |
|||||
|
MPPT Range @ Operating Voltage |
120~450VDC |
|||||
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|||||
|
Maximum Charging Current |
100A 100A |
|||||
|
Maximum Efficiency |
98% |
|||||
|
PHYSICAL |
||||||
|
Dimension,D*W*H(mm) |
440*310*110 |
|||||
|
Carton Dimension,DXWXH(mm) |
590*390*210 |
|||||
|
Net Weight(kgs) |
8.5 |
9.5 |
||||
|
Gross Weight(kgs ) |
9.5 10.5 |
|||||
|
Communication interface |
RS232/GPRS/WIFI |
|||||
|
ENVIRONMENT |
||||||
|
Humidity |
5% to 95% Relative Humidity(Non~condensing) |
|||||
|
Operating Temperature |
-10℃~50℃ |
|||||
|
STANDARD |
||||||
|
Compliance Safety |
CE |
|||||
Product Features
Pure sine wave solar inverterOutput power factor 1.0
Wifi&GPRS available for IOS and android
lnverter can run without battery
Built-in 100A MPPT solar charger
High PV input voltage range(120~450VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Appliration Scenarios
Simple - efficient - safe - reliable
Company Advantages
Shenzhen Kangweisi Technology Co., Ltd., located in is a modern company specializing in R&D, production and sales of Kangweisi adheres to the service purpose to be attentive, accurate, efficient and decisive. We are responsible for every customer and are committed to providing timely, efficient, professional and one-stop services. Our products are of reliable quality, with great cost performance and you can purchase them with confidence. If you are in need, please contact us for business discussion.
