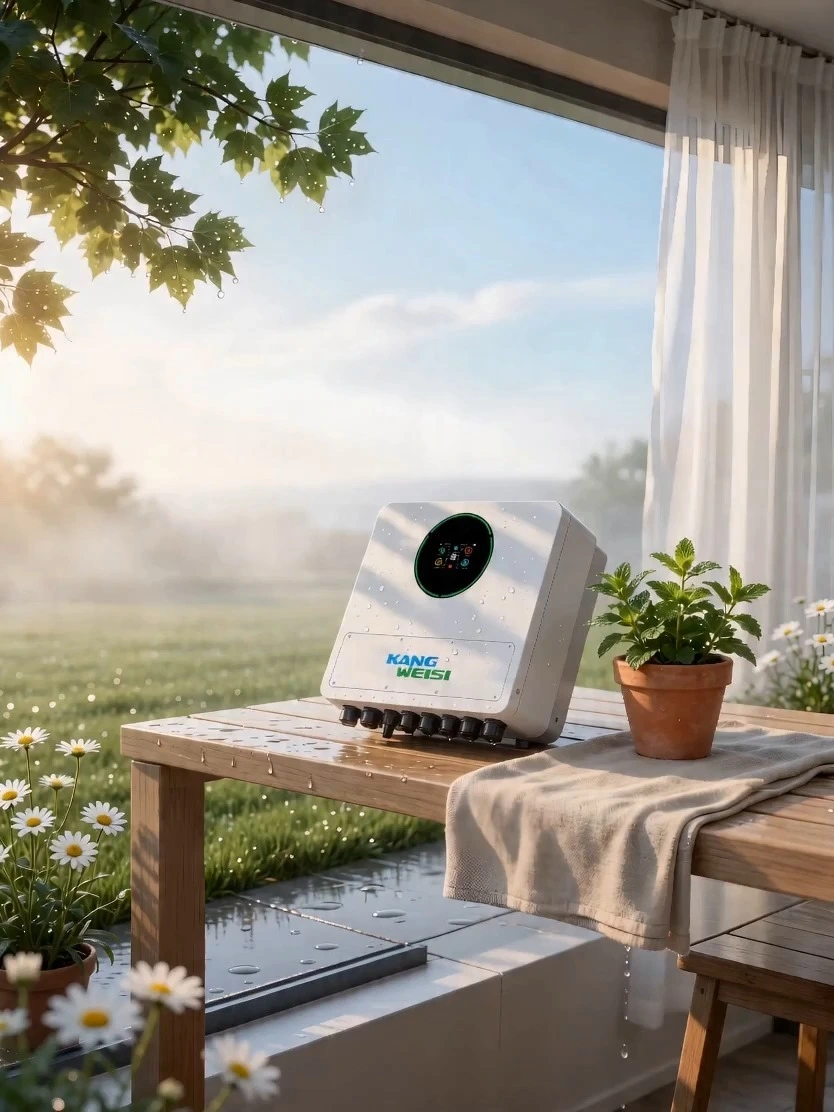

PV inverter home use 6000W solar power inverter 220v single phase IP65 Waterproof and dustproof hybrid inverter
Product Parameters
| Model | KHY 6000TL-48SE |
| Phase | 1-phase in/1-phase out |
| Maximum PV Input Power | 9000w |
| Rated Output Power | 6000W |
| Maximum Charging Power | 6000W |
| GRID-TIED OPERATION PV INPUT(DC) |
|
| PV INPUT(DC) | |
| Maximum DC Voltage | 500Vdc |
| Start-up Voltage/lnitial Feeding Voltage | 90Vdc/120Vdc |
| MPPT Voltage Range | 60-450Vdc |
| Number of MPPT Trackers/Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) |
| Nominal Output Current | 26.1A |
| Power Factor | >0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DCIAC) | 97% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage /Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| Maximum AC Input Current | 40A |
| PV INPUT(DC) | |
| Maximum DC Voltage | 520Vdc |
| MPPT Voltage Range | 50Vdc-500Vdc |
| Number Of MPPT Trackers/Maximum Input Current | 2/18A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Pure sine wave |
| Efficiency(DC to AC) | 93% |
| HYBRID OPERATION | |
| PV INPUT(DC) | |
| Maximum DC Voltage | 520Vdc |
| Start-Up Voltage/lnitial Feeding Voltage | 90Vdc/120Vdc |
| MPPT Voltage Range | 50Vdc-450Vdc |
| Number Of MPPT Trackers/Maximum Input Current | 2/18A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Voltage Range | 184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) |
| Nominal Output Current | 26.1A |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 40A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Efficiency(DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48Vdc |
| Maximum Solar Charging Current | 135A |
| Maximum AC Charging Current | 135A |
| Maximum Charging Current | 135A |
| GENERAL | |
| PHYSICAL | |
| Dimension,DxWxH(mm) | 471×444×200 |
| Net Weight(kg) | 18.5 |
| INTERFACE | |
| Parallel Function | Yes,6 units |
| Communication Port | RS232/RS485/CAN/WiFi/Dry contact |
| ENVIRONMENT | |
| Humidity | 5%to 95%Relative Humidity(Non-condensing) |
| IP degree | IP65 |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -15℃~60℃ |
