Product Parameters
Model | KOF 2000TL-12X2 | KOF 3200TL-24X2 |
RATED POWER | 2000VA/1600W | 3200VA13000W |
AC INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation | 230VAC士5% | |
Surge Power | 4000VA | 6400VA |
Efficiency(Peak)PV to INV | 98.00% | |
Efficiency(Peak)Battery to INV | 94.00% | |
Transfer Time | 10 ms (For Personal Computers);20 ms (For Home Appliances) | |
BATTERY | ||
Battery Voltage | 12VDC | 24VDC |
Floating Charge Voltage | 13.5VDC | 27VDC |
Overcharge Protection | 16VDC | 32VDC |
SOLAR CHARGER & AC CHARGER | ||
Solar Charger Type | MPPT | |
Maximum PV Array Power | 2000W | 3000W |
MPPT Range @ Operating Voltage | 30-400VDC | |
Maximum PV Array Open Circuit Voltage solar |
400VDC | |
Maximum Solar Charge Current | 80A | |
Maximum AC Charge Current | 60A | |
Maximum Charging Current (Solar+AC) |
80A | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 357*273*95 | |
Carton Dimension,D X W XH(mm) | 440*340*170 | |
Net Weight(kgs) | 5 | 5.6 |
Gross Weight(kgs) | 6 | 6.3 |
Communicationinterface | RS232/GPRS/WIFI | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non ~ condensing) | |
Operating Temperature | -10℃~50℃ | |
STANDARD | ||
Compliance Safety | CE |
Product About

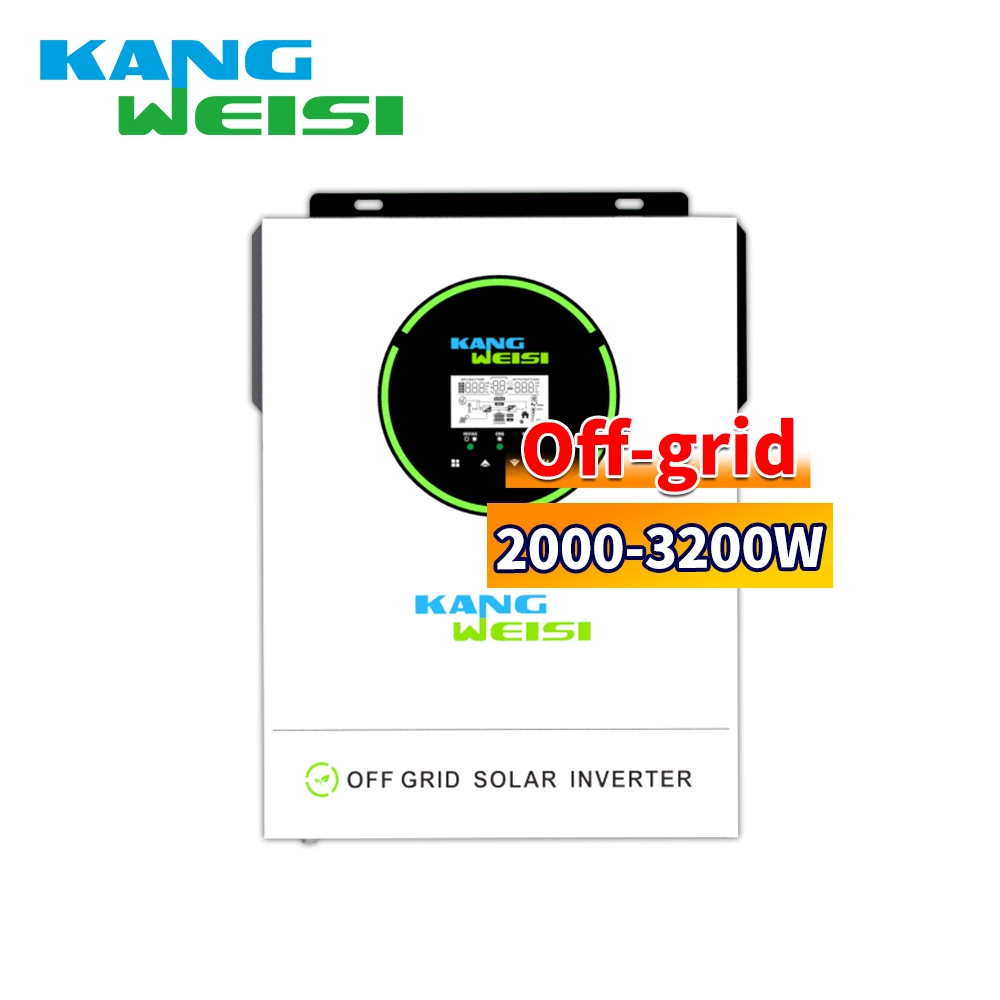

Pure sine wave solar inverter
Built-in 80A MPPT solar charger
High PV input voltage range(30~400VDC)
Product Features
Wifi&GPRS available for IOS and android
Compatible with lithium battery
Smart battery charge design to optimize battery lifemeet rich customized demands
Built-in anti-dust kit for harsh environment
Solar energy is provided directly to the load first
230V AC (normal output voltage) 80A (maximum solar charging current 400VDC (maximum DC voltage) Wireless network optional
Appliration Scenarios
Simple - efficient - safe - reliable
