Household PV energy storage battery, 15 kWh, Grade A cell, 48V solar lithium iron phosphate battery, 51.2V 300Ah.

Model:

51.2V300AH

Battery Type:

Wall-Mounted Lithium Battery

Cycle Life:

6000 cycles@80% DOD

Type:

LiFePO4 Battery

Power Per Group:

51.2V300Ah

Storage Power:

15.36KWH

Output Voltage:

51.2V

Certificate:

CE,IEC,UN38.3,MSDS

Payment:

T/T, Western Union

Warranty:

Official website query

Inquiry

Write a Review

Product Parameters

Model	51.2V 100AH	51.2V 205AH	51.2V 300AH	51.2V314AH	51.2V410AH	51.2V 600AH
Energy Storage	5120wh	10496Wh	15360wh	16077wh	20992Wh	30720wh
Rated Voltage	51.2V
Voltage Range	43.2V-58.4V
Max Charge Current	100A	200A	200A	200A	200A	300A
Max Discharge Current	100A	200A	200A	200A	200A	300A
Discharging Cut-off Voltage	43.2V
Floating Voltage	57.6V
Cycle Life	6000 cycles@80% DOD
Work Temperature	-20°C~55°C

The residential energy storage series is a battery module developed by for low-voltage lithiumbattery systems, primarily applied in the field of residential energystorage. It can achievehigh-precision multi-cell voltage and temperature acquisition.

Product Features

The module adopts a passive balancing method, with a maximum balancing currentof up to70~80mA,improving the overall life span of the battery pack.

The module features external communication interfaces using CAN, RS485, and drycontactcommunication methods, allowing communication in parallel for up to 15batteries.

Embedded BMS system effectively monitors phenomena such as over-temperature.over-voltage,and over-current, reducing the risk of battery damage or even fire,ensuring the safety of life andproperty.

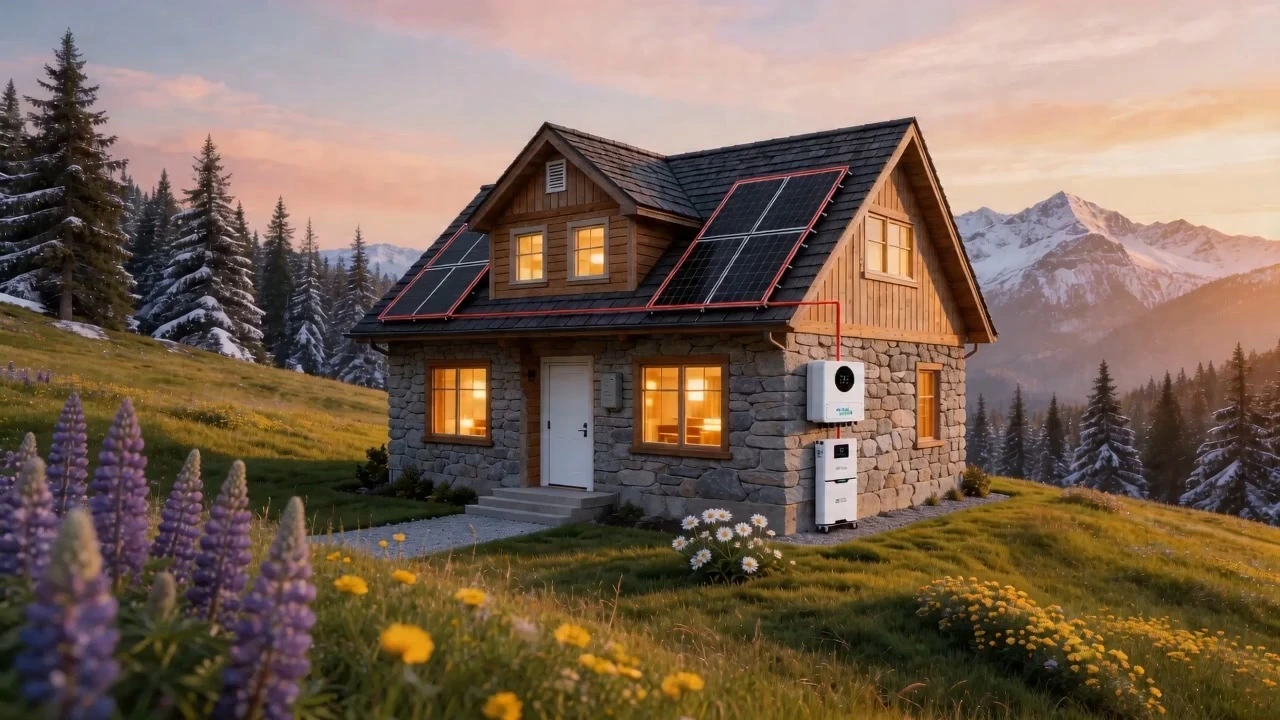

Appliration Scenarios

Simple - efficient - safe - reliable

9_04 (14)

9_05 (14)
