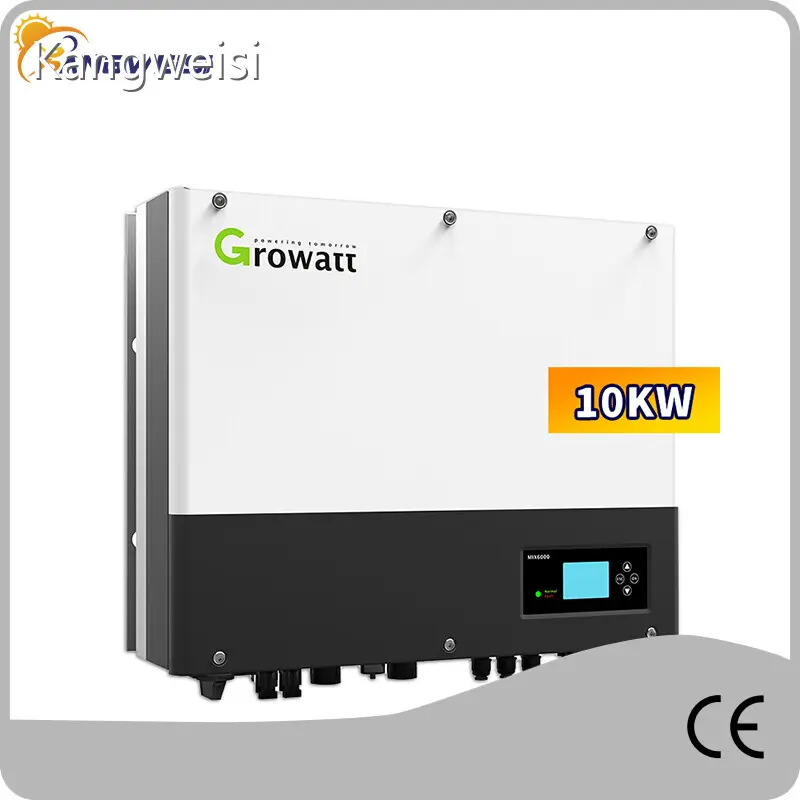

Product details of the hybrid solar inverter
Product Description
Kangweisi hybrid solar inverter is made of fully checked raw materials. Advanced testing equipment and perfect quality assurance system ensure the hybrid solar inverter's high performance. Kangweisi provides excellent after sales support on hybrid solar inverter.
Product Parameters
|
Datasheet |
SPH4000TL3 BH-UP |
SPH5000TL3 BH-UP |
SPH6000TL3 BH-UP |
SPH7000TL3 BH-UP |
SPH8000TL3 BH-UP |
SPH10000TL3 BH-UP |
|
Input Data(PV) |
||||||
|
Max. recommended PV power(for module STC) |
6000W |
7500W |
9000W |
10500W |
12000W |
15000W |
|
Max. DC voltage |
1000 |
|||||
|
Start voltage |
120V |
|||||
|
MPP voltage range |
120V-1000V/600V |
|||||
|
No. of MPP trackers |
2 |
|||||
|
No. of PV strings per MPP tracker |
1 |
|||||
|
Max. input current per MPP tracker |
13.5A |
|||||
|
Max. short-circuit current per MPP tracker |
16.9A |
|||||
|
Output Data(AC) |
||||||
|
AC nominal power |
4000W |
5000W |
6000W |
7000W |
8000W |
10000W |
|
Max. AC apparent power |
4000VA |
5000VA |
6000VA |
7000VA |
8000VA |
10000VA |
|
Nominal AC voltage (range) |
230V/400V (310~476V) |
|||||
|
AC grid frequency (range) |
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) |
|||||
|
Max. output current |
6.1A |
7.6A |
9.1A |
10.6A |
12.1A |
15.2A |
|
Adjustable power factor |
0.8leading…0.8lagging |
|||||
|
THDi |
<3% |
|||||
|
AC grid connection type |
3W+N+PE |
|||||
|
Battery Data (DC) |
||||||
|
Battery voltage range |
100~550V |
|||||
|
Max charging and discharging current |
25A |
|||||
|
Continuous charging and discharging power |
4000W |
5000W |
6000W |
7000W |
8000W |
10000W |
|
Type of battery |
Lithium /Lead-acid |
|||||
|
Backup Power(AC) |
||||||
|
Max. AC output power |
4000W |
5000W |
6000W |
7000W |
8000W |
10000W |
|
Max. output current |
6.1A |
7.6A |
9.1A |
10.6A |
12.1A |
15.2A |
|
Nominal AC output voltage |
230V/400V |
|||||
|
Nominal AC output frequency |
50/60HZ |
|||||
|
THDv |
<3% |
|||||
|
Switch time |
<10ms |
|||||
|
Efficiency |
||||||
|
MAX. efficiency |
97.6% |
97.80% |
98.0% |
98.2% |
98.2% |
98.2% |
|
European efficiency |
97% |
97.2% |
97.30% |
97.40% |
97.40% |
97.50% |
|
Protection Devices |
||||||
|
DC switch |
Yes |
|||||
|
DC reverse polarity protection |
Yes |
|||||
|
AC/DC surge protection |
Yes |
|||||
|
Battery reverse protection |
Yes |
|||||
|
AC short-circuit protection |
Yes |
|||||
|
Ground fault monitoring |
Yes |
|||||
|
Grid monitoring |
Yes |
|||||
|
Anti-islanding protection |
Yes |
|||||
|
Residual-current monitoring unit |
Yes |
|||||
|
Insulation resistance monitoring |
Yes |
|||||
Product Features
Functional Leadership
- Uninterruptible power supply, switching within 10ms
- 100% three-phase unbalanced output
- Intelligent phase power control
- Built-in AC and DC secondary lightning protection
High efficiency power generation
- DC over allocation 1.5 times
- Dual MPPT
- Maximum conversion efficiency of 98.2%
System Flexibility
- Compatible with lead-acid and lithium batteries
- Fast access to VPP platform
- Intelligent load control through dry contact
Appliration Scenarios
Simple - efficient - safe - reliable
