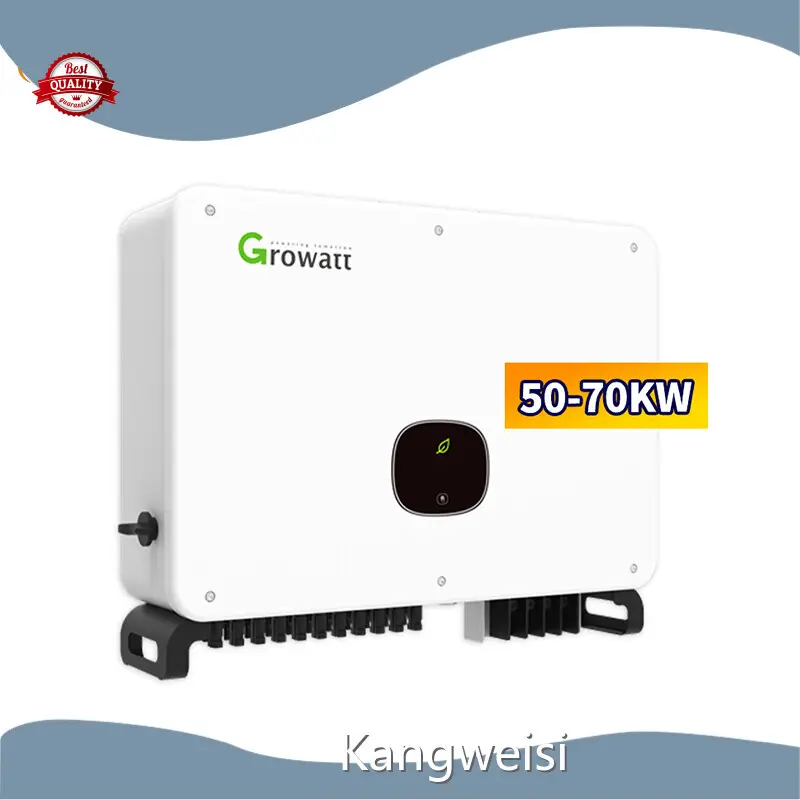

Kangweisi on Grid Solar Inverter 50-70kw on Grid Solar Inverter
Product Parameters
|
Datasheet |
50KTL3-X MV/LV |
60KTL3-X MV/LV |
66KTL3-X MV/LV |
70KTL3-X MV/LV |
|
Input Data (DC) |
||||
|
Max. recommended PV power(for module STC) |
75000W |
90000W |
99000W |
10500W |
|
Max. DC voltage |
1100V |
|||
|
Start voltage |
250V |
|||
|
Nominal voltage |
700V |
|||
|
MPPT voltage range |
200V-1000V |
|||
|
No. of MPP trackers |
3 |
|||
|
No. of PV strings per MPP tracker |
4/3/3 |
4/4/4 |
4/4/4 |
4/4/4 |
|
Max. input current per MPP tracker |
50A/37.5A/37.5A |
50A/50A/50A |
50A/50A/50A |
50A/50A/50A |
|
Max. short-circuit currentper MPP tracker |
55A |
|||
|
Output Data(AC) |
||||
|
AC nominal power |
50000W |
60000W |
66000W |
70000W |
|
Max. AC apparent power |
55500VA |
66600VA |
73300VA |
77700VA |
|
Nominal AC voltage(range*) |
277V/480V (425-540V) |
|||
|
AC grid frequency(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
|||
|
Max. output current |
66.9A |
80.2A |
88.2A |
93.6A |
Features
Efficient power generation
- Maximum efficiency 98.8 per cent
- MPPT current 64A/48A/48A, suitable for 182/210 modules.
- Supports 1.5 times over-allocation on the DC side.
Safe and Reliable
- AC and DC secondary lightning protection
- Protection grade IP66
- Optional AFCI function and anti-PID function.
- String monitoring and IV curve scanning to accurately locate abnormal strings.
Cost Saving
- Support 70mm² aluminium cable access, saving AC cable cost.
- Intelligent online operation and maintenance saves costs
Appliration Scenarios
Simple - efficient - safe - reliable
Company Advantages
· The design considerations of Kangweisi on grid solar inverter cover the following aspects: static and dynamic stiffness, operational speeds, gearboxes, manual, and automatic control.
· The product has the advantage of high precision. The high technology CNC machines have guaranteed the highest accuracy of mechanical parts.
· The product has been steady demands in the market for its considerable application prospects.
Company Features
· When it comes to on grid solar inverter, Shenzhen Kangweisi Technology Co., Ltd. ranks top as a powerful manufacturer.
· More and more customers choose Kangweisi for its high-class quality.
· We are determined to achieve energy-saving and the environmentally-friendly manufacturing way in the future. We will upgrade the old waste treating equipment with more effective ones, and make full use of every kind of energy resources to reduce energy waste.
Application of the Product
Kangweisi's on grid solar inverter can be applied to different fields and scenes, which enables us to meet different requirements.
We are always aware of new trends and developments in the market, so we can provide our customers with the industry-leading one-stop solutions.
