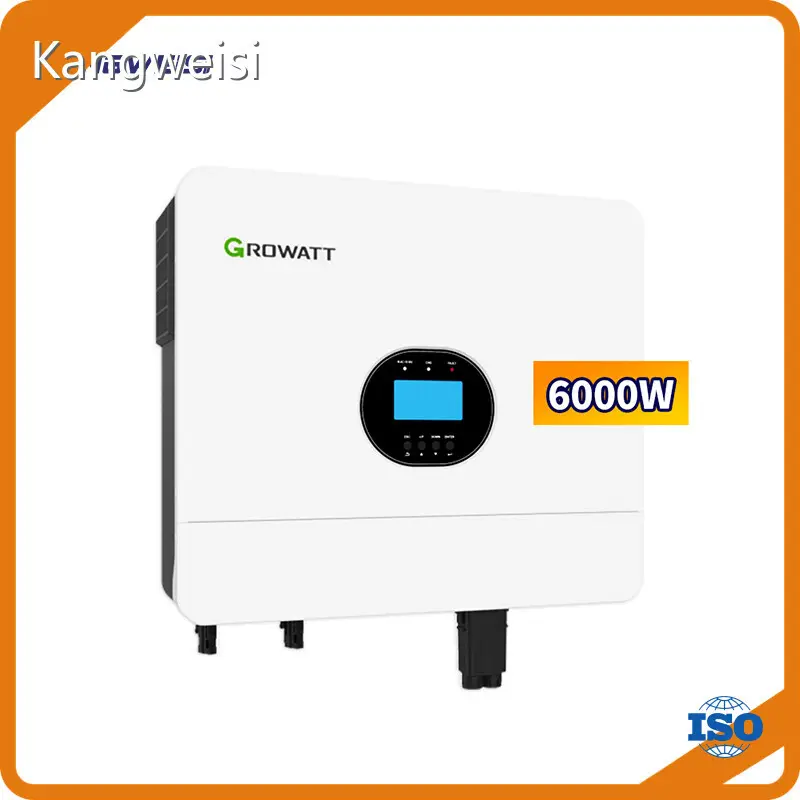

Kangweisi Brand Off Grid Inverter ISO
Product details of the off grid inverter
Product Overview
off grid inverter has strong resistance to hard conditions. Continuous and systematic quality management processes are carried out for providing quality guarantee. The product has got a high level of customer satisfaction, showing great potential for wider market application.
Product Description
Compared with other products in the same category, off grid inverter has the following major features.
Product Parameters
|
Datasheet |
SPF 6000 ES Plus |
|
Battery Voltage |
48VDC |
|
Battery Type |
Lithium/Lead-acid |
|
Inverter Output |
|
|
Rated Power |
6000VA/6000W |
|
Parallel Capability |
Yes, 6 units maximum |
|
AC Voltage Regulation(Battery Mode) |
230VAC ± 5% @ 50/60Hz |
|
Surge Power |
12000VA |
|
Efficiency (Peak) |
93% |
|
Waveform |
Pure sine wave |
|
Transfer Time |
10ms typical，20ms Max |
|
Solar Charger |
|
|
Maximum PV Array Power |
8000W |
|
MPPT Range @ Operating Voltage |
120VDC ~ 450VDC |
|
Number of Independent MPP Trackers/Strings Per MPP Tracker |
2/1 |
|
Max. input current per MPP tracker |
16A |
|
Maximum PV Array OpenCircuit Voltage |
500VDC |
|
Maximum Solar Charge Current |
100A |
|
AC Charger |
|
|
Charge Current |
80A |
|
AC Input Voltage |
230VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
Physical |
|
|
Protection Degree |
IP20 |
|
Dimension (W/H/D) |
460/395/132mm |
|
Net Weight (kgs) |
13.5 |
|
Operating Environment |
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Altitude |
<2000m |
|
Operating Temperature |
0°C - 55°C |
|
Storage Temperature |
-15°C - 60°C |
Features
Efficient Power Generation.
- Supports up to 8000W PV input
- Dual MPPT
- 2x surge power
Flexible Expansion.
- Plug and play PV interface
- Dual grid and generator interfaces with integrated switch
- Support 6 single-phase/three-phase parallel generators to form a 36kW system.
- Compatible with lithium and lead-acid batteries
Intelligent and reliable.
- Remote monitoring via WiFi and GPRS
- Timed charging and discharging
- Dust-proof air inlet mesh cover to optimise the experience of using the system in harsh environment.
Appliration Scenarios
Simple - efficient - safe - reliable
Company Introduction
Shenzhen Kangweisi Technology Co., Ltd. is one of the most dependable manufacturers of off grid inverter and has been highly appraised for its extensive expertise in designing and manufacturing. We continually invest in our production facilities and testing machinery. They operate smoothly under systematic management, enabling us to efficiently and effectively create more products. We do our best to win the international off grid inverter marketplace.
We have high production efficiency, and we look forward to the cooperation with you.
