Product Parameters
Model | KOF 3600U-24TX | KOF 6200U-48TX |
Phase | 1-phase | |
Maximum PV input Power | 4200W | 6000W |
Rated Output Power | 3600W/3600VA(3000/3150/13300) | 6200W/6200VA(5300/5500/5700) |
Maximum Solar Charging Current | 120A | |
GRID-TIE OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
Start-up Voltage/lnitial Feeding Voltage | 60VDC/90VDC | |
MPPT Voltage Range | 60~450VDC | |
Maximum Input Current | 1/18A | 1/22A |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/115Vsettable) | |
Output Voltage Range | 90-150VAC | |
Nominal Output Current | 30A | 51.7A |
Power Factor | >0.99 | |
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) | 98% | |
TWO LOAD OUTPUT POWER | ||
Full Load | 3600W | 6200W |
Maximum Main Load | 3600W | 6200W |
Maximum Second Load(battery mode) | 1200W | 2067W |
Maximum Load Cut Off Voltage | 26VDC | 52VDC |
Maximum Load Return Voltage | 27VDC | 54VDC |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 110VAC/120VAC | |
Acceptable Input Voltage Range | 90-150VAC+2% | |
Frequency Range | 49~51+1Hz | |
Maximum AC input Current | 40A | 80A |
PVINPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
MPPT Voltage Range | 60~450VDC | |
Maximum input Current | 1/18A | 1/22A |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/115Vsettable) | |
Output Wave Form | Pure sine wave | |
Efficiency (DC to AC) | 94% | |
BATTERY&CHARGER | ||
Nominal DC Voltage | 24VDC | 48VDC |
Maximum Solar Charging Current | 120A | 120A |
Maximum AC Charging Current | 100A | 100A |
Maximum Sotar+AC Charging Current | 120A | 120A |
HYBRID OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
Start-up Voltage/initial Feeding Voltage | 90VDC/120VDC | |
MPPT Voltage Range | 60~450VDC | |
Maximum input Current | 1/18A | 1/22A |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/115Vsettable) | |
Output Voltage Range | 90-150VAC | |
Nominal Output Current | 30A | 51.6A |
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/100VAC | |
Acceptable input Voltage Range | 90-150VAC | |
Maximum AC input Current | 40A | 80A |
Maximum Charging Current | 120A | |
GENERAL | ||
PHYSICAL | ||
Dimension ,H*W*D(mm) | 420*350*110 | |
Cartoon Dimension ,H*W*D(mm) | 500*415*180 | |
Net Weight (kgs) | 8.8 | 9.5 |
Gross Weight(kgs) | 10 | 11.5 |
INTERACE | ||
Communication Port | RS232/RS485/IFVGPRS/LITHIUM BATTERY | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -10℃-50℃ | |
STANDARD | ||
Compliance Safety | TUV, ETL, ISO, CE,UL |
Product About

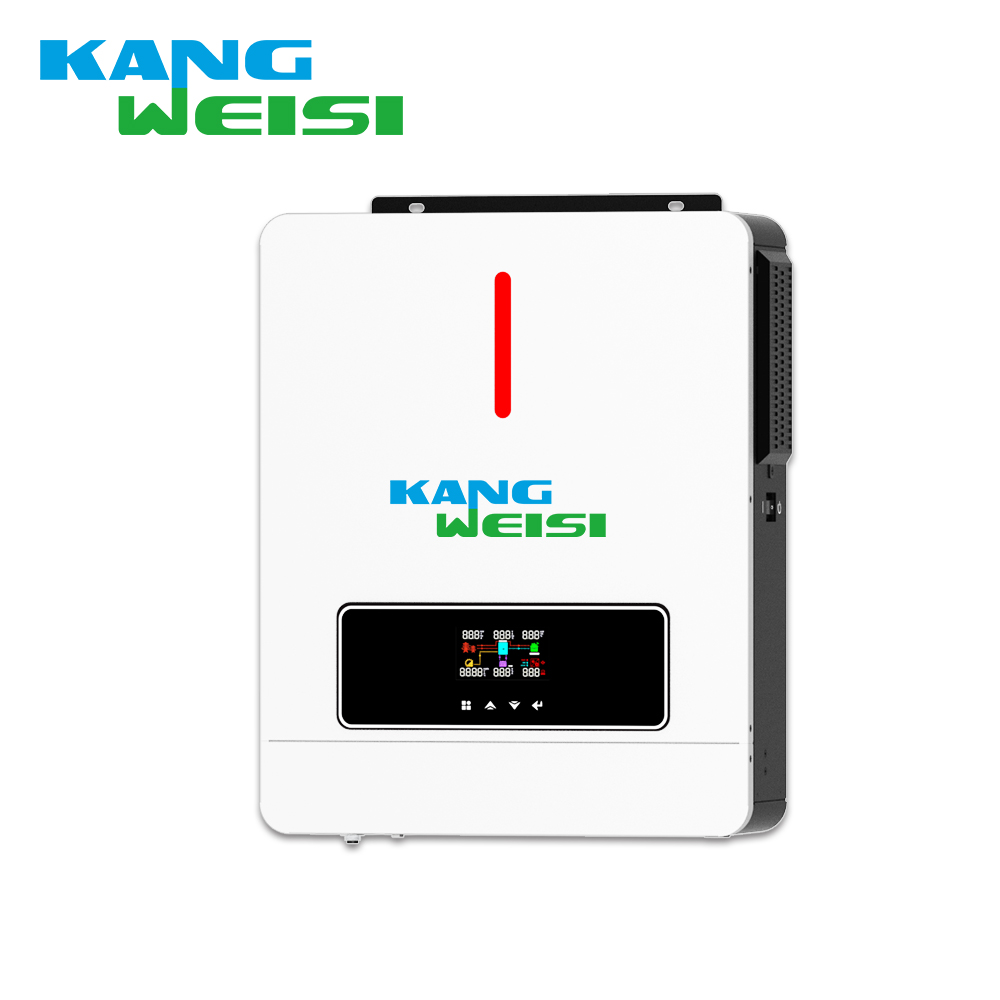

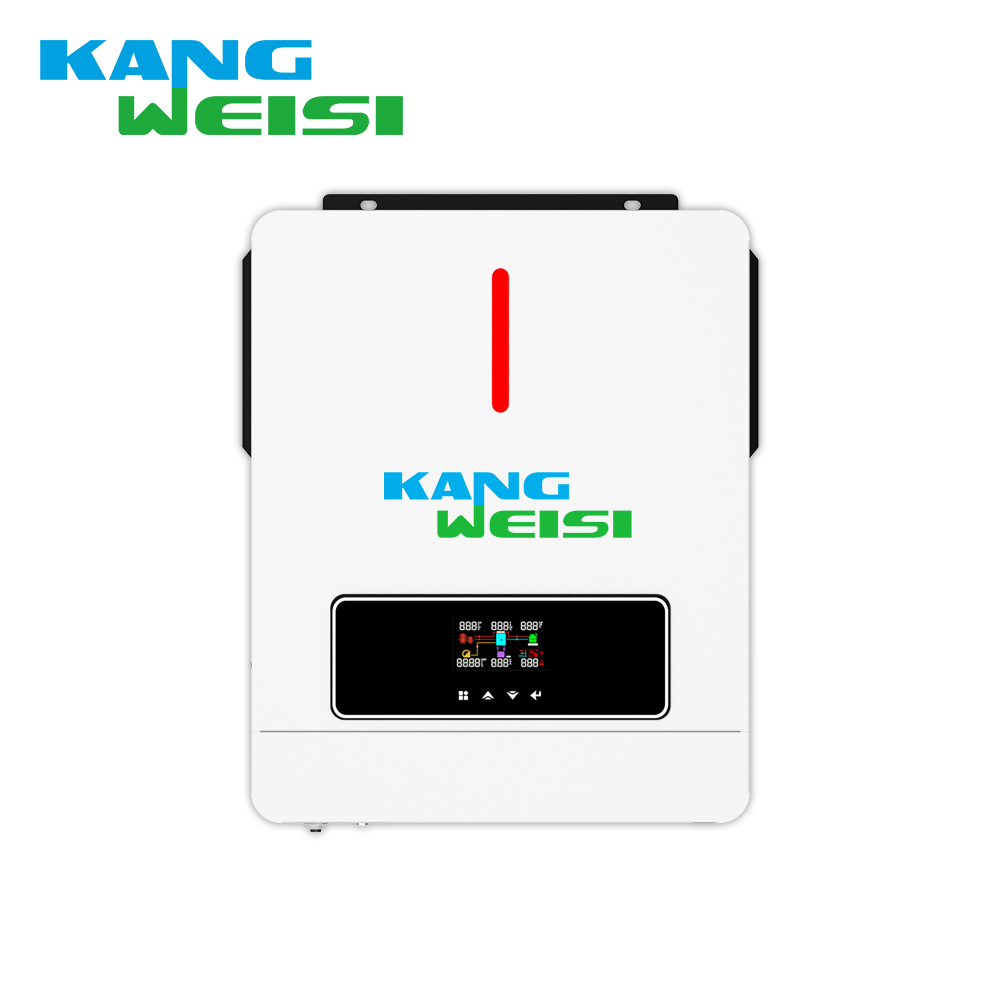

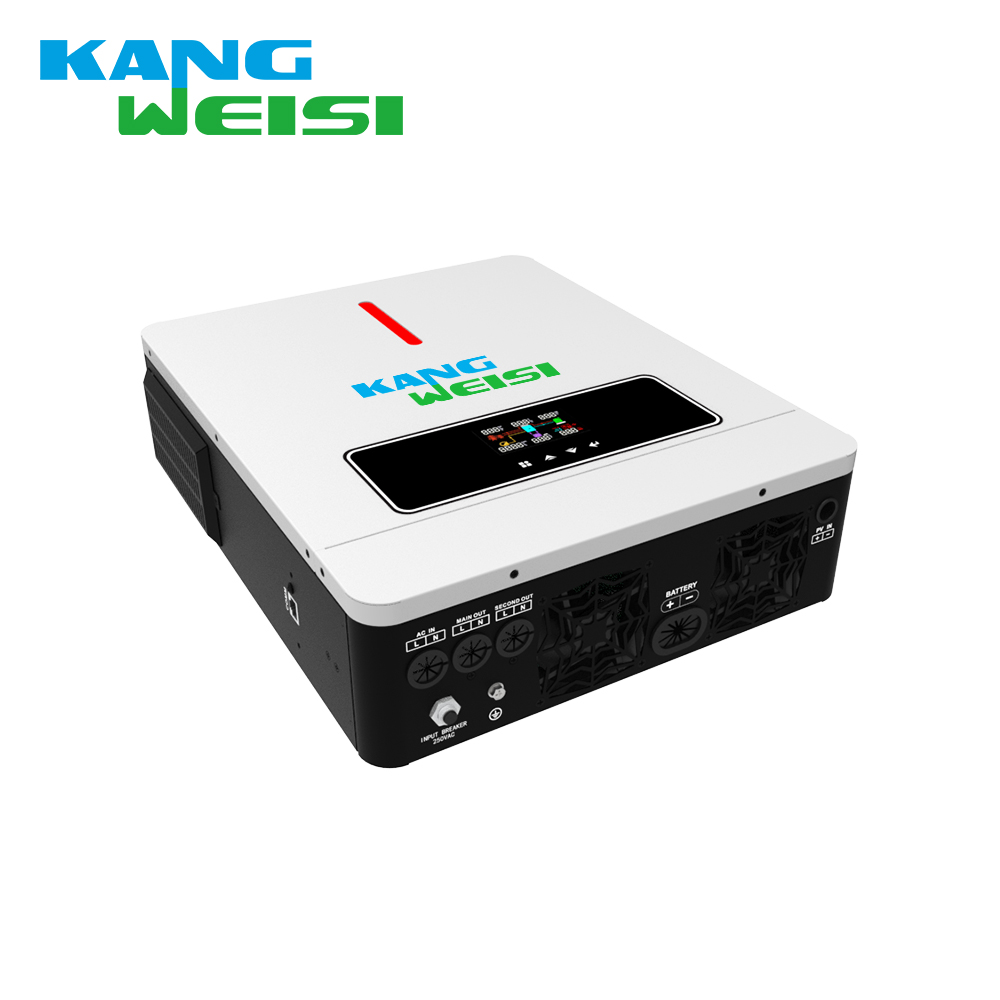

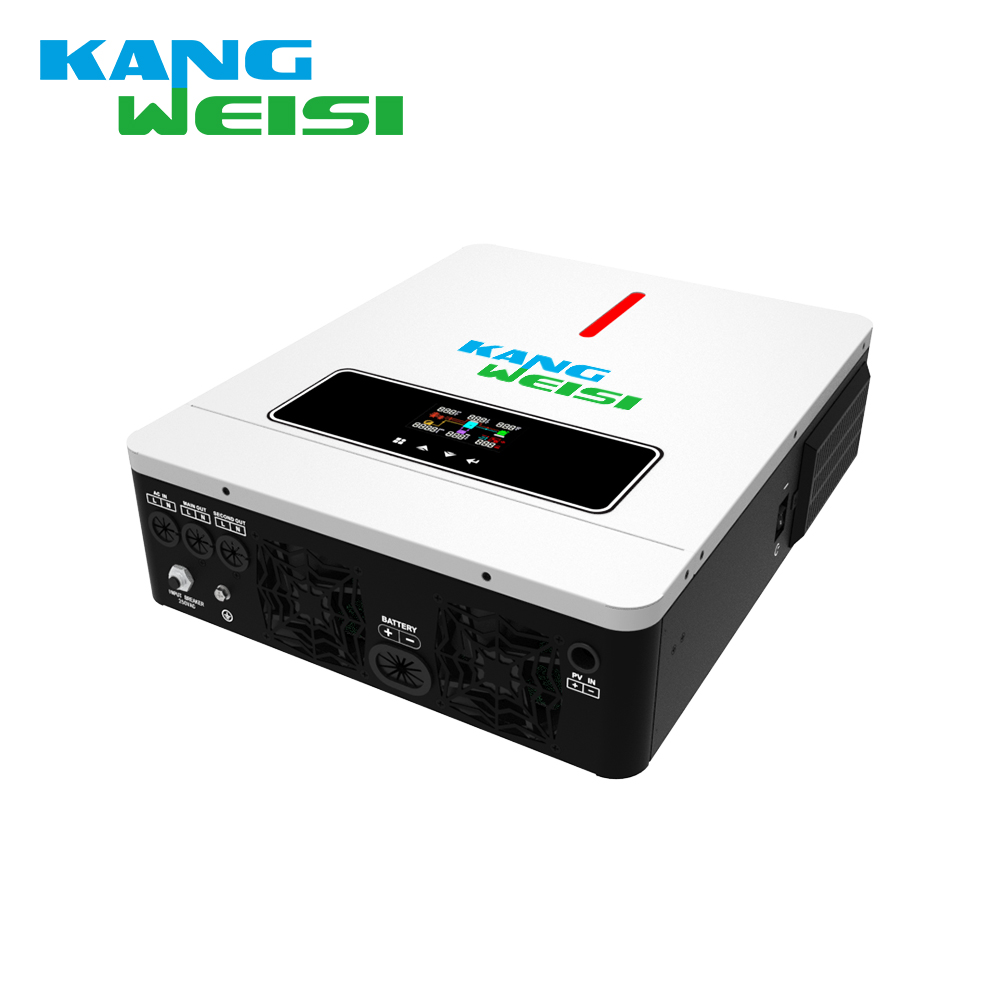

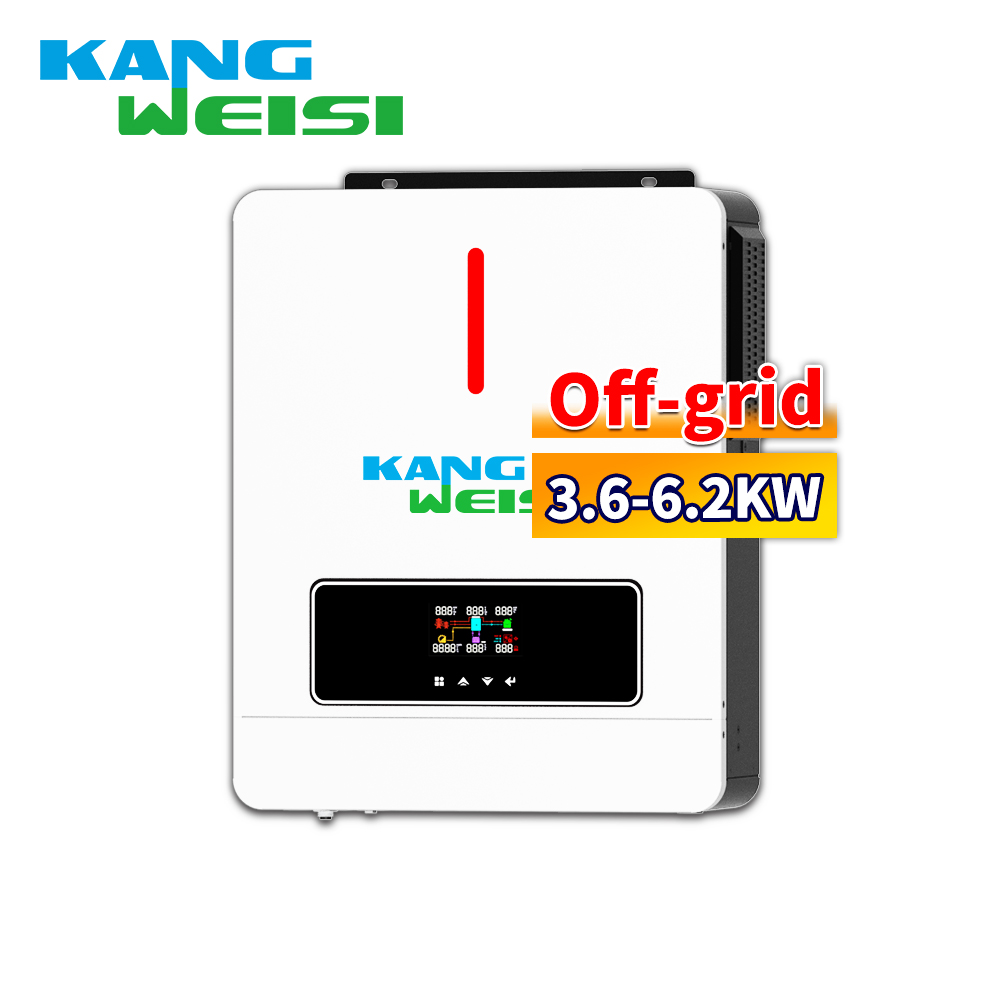

Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WlFl&GPRS available for loS and Android
Product Features
Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
AC output voltage 120VAC
Built-in 120A MPPT Solar charge:max 4200W(for 3.6kW); max 6000w (for 6.2KW)
High PVinput voltage range(60~500VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life

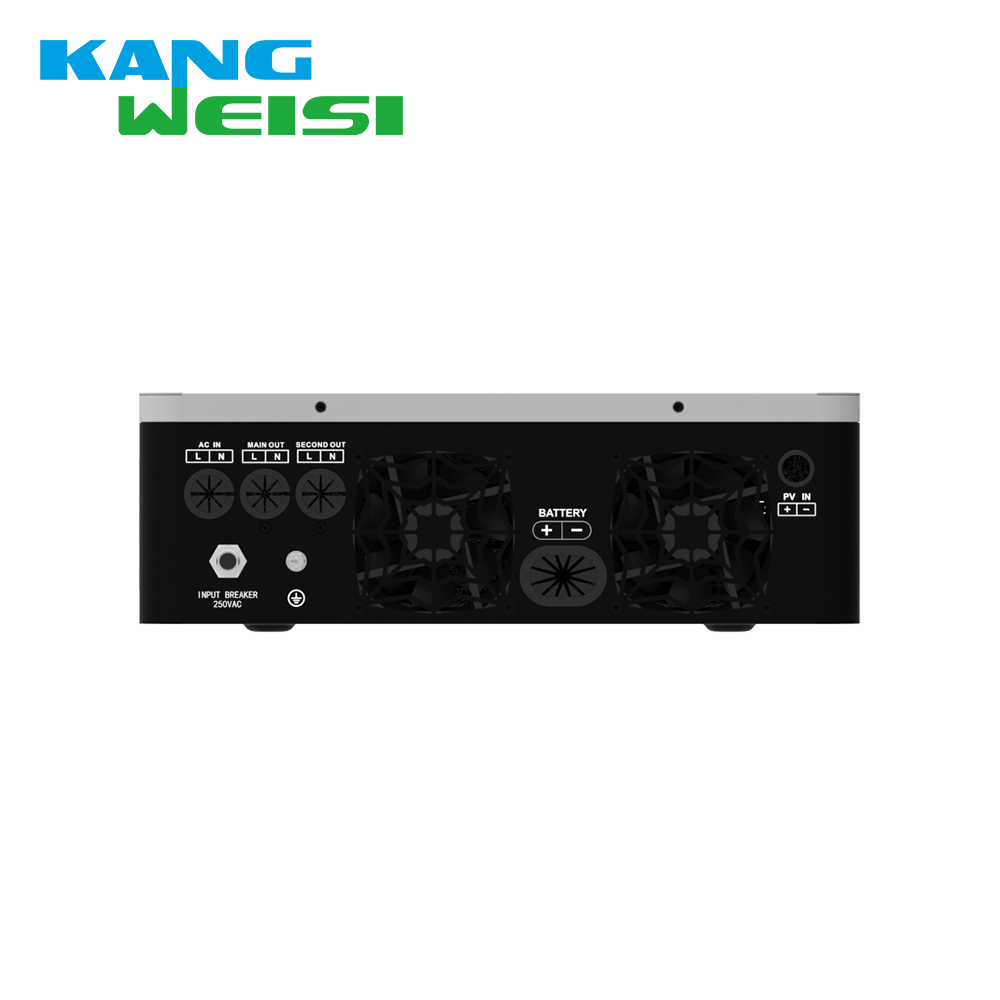

Dual output

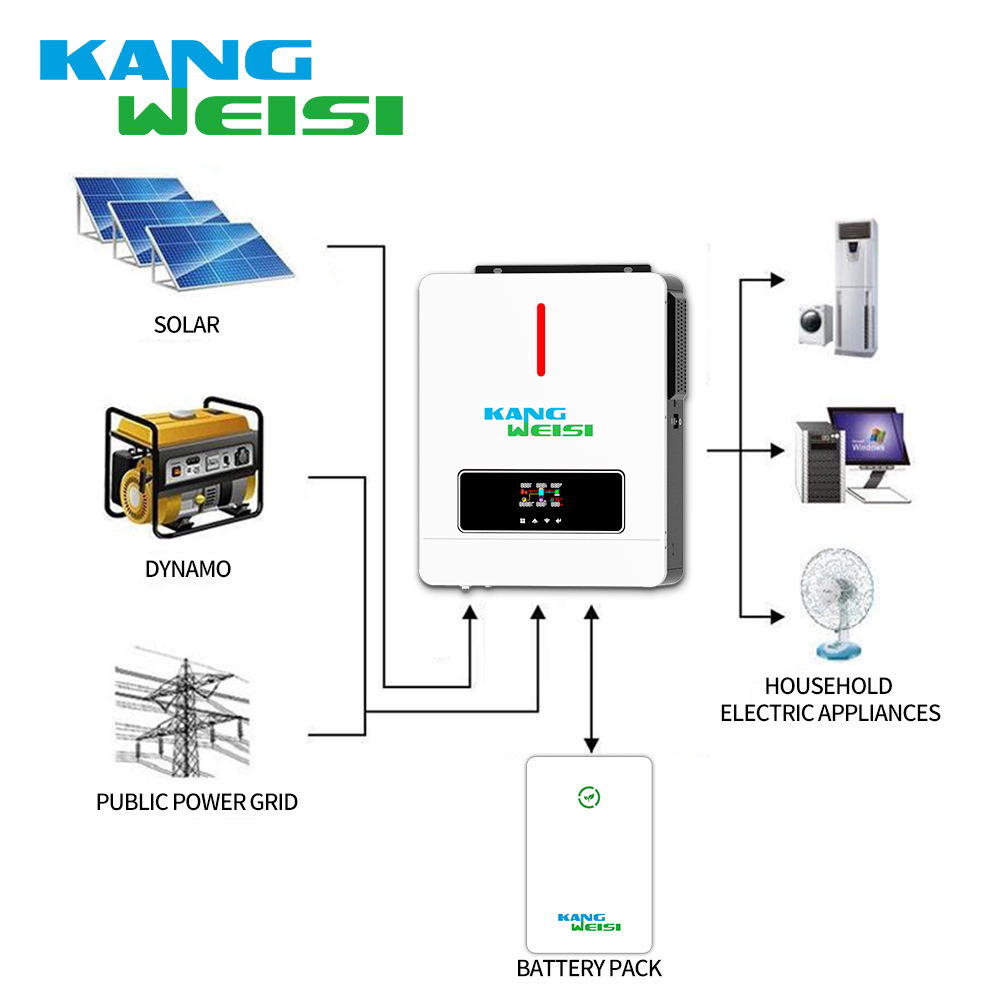

Appliration Scenarios
Simple - efficient - safe - reliable
