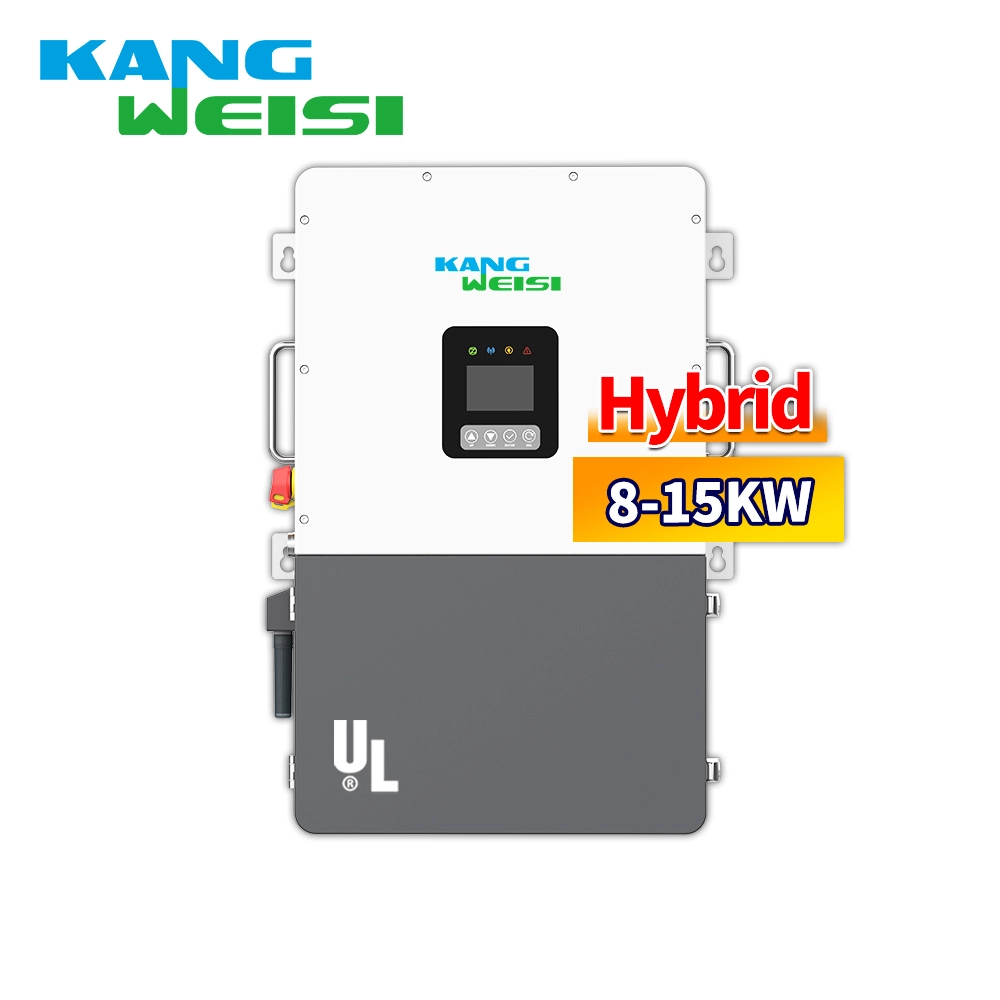

Solar inverter three-phase hybrid inverter 8-15kw American standard split-phase PV inverter
Model:
KHY 8000-15000UP-48SS
Battery Type:
48V
Type:
Hybrid Inverter
Inverter Power:
8000-15000W
Output Voltage:
120/240V
Certificate:
UL
Payment:
T/T, Western Union
Warranty:
Official website query
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| TECHNICALSPECIFICATION | ||||
| Model | KHY8000UP-48SS | KHY10000UP-48SS | KHY12000UP-48SS | KHY15000UP-48SS |
| INVERTERINPUT/OUTPUT(GRID) | ||||
| Rated Power(kW) | 8 | 10 | 12 | 15 |
| Rated Voltage | 120Va.c./240Va.c. (Split Phase),208Va.c. (2/3Phase) | |||
| Rated Frequency(Hz) | 60 | |||
| Power Factor Range | 0.8leading~0.8lagging | |||
| Switch Time(ms) | <10 | |||
| Max.Input Current(A a.c.) | 200 | |||
| Max.Output Current(A a.c.) | 33.4 | 41.7 | 50 | 62.5 |
| MaxOutput Overcurrent Protection | 250Va.c/250Aa.c | |||
| GEN Max.Input Current(A a.c.) | 80 | |||
| BATTERY | ||||
| Battery Type | Lithium/Lead-acid | |||
| Battery Voltage Range(V d.c.) | 40~60 | |||
| Rated Battery Voltage(V d.c.) | 51.2 | |||
| MaxCharge Current(Ad.c.) | 167 | 210 | 250 | 275 |
| Max Discharge Current(A d.c.) | 167 | 210 | 250 | 275 |
| Reverse Connect Protection | Yes | |||
| PV INPUT | ||||
| No.of MPPT Tracker/Strings | 3/2+2+2 | 3/2+2+2 | 3/2+2+2 | 3/2+2+2 |
| Max.PV Array Power(kW) | 12 | 15 | 18 | 22.5 |
| Max DC Voltage(Vd.c.) | 550 | |||
| MPPT Voltage Range(V d.c.) | 100~500 | |||
| Start-up Voltage(V d.c.) | 120 | |||
| Max.Input Current(Ad.c.) | 26+26+26 | |||
| Isc PV(Absolute Maximum)(Ad.c.) | 39 | |||
| AC OUTPUT(EPS) | ||||
| EPS Rated Output Voltage | 120Va.c./240Va.c. (Split Phase),208Va.c. (2/3Phase) | |||
| EPS Rated Output Frequency(Hz) | 60 | |||
| EPS Rated Output Active Power(kW) | 8 | 10 | 12 | 15 |
| EPS Rated Output Apparent Power(kVA) | 8 | 10 | 12 | 15 |
| EPS Rated Output Current(A a.c.) | 33.4 | 41.7 | 50 | 62.5 |
| Overload Capacity (Off Grid) | 200%10s | |||
| Smart Load Rated Output Power(kW) | 8 | 10 | 12 | 15 |
| EFFICIENCY | ||||
| MPPT Efficiency | 99.50% | |||
| California-eficiency | 96.50% | |||
| Max.Eficiency | 97.50% | |||
| PROTECTION & FEATURE | ||||
| Insulation Monitoring | Yes | |||
| Residual Current Monitoring | Yes | |||
| Parallel Function | Yes | |||
| Protection Degree | NEMA 4X | |||
| Certifications | IEEE1547,CA RULE21,HECO SRD V2.0,U11741,UL1741 SA/SB,CSAC22.2,UL1699B. | |||
| Other Protection | Overload,Overtemperature,Short circuit,Anti-islanding | |||
| GENERALPARAMETER | ||||
| Storage Temperature | -25℃~+60℃(-13°F~+140°F) | |||
| Operating Temperature | -25℃~+60℃(-13°F~+140°F),>+45℃(+113°F)Derating to 60% | |||
| Humidity | 0~95%(Non-condensing) | |||
| Operating Altitude(m) | 4000(>2000 Derating) | |||
| Noise(dB) | <45 | |||
| Machine Dimensions(W*H*D)(mm) | 522*826*265.5 | |||
| Machine Weight/N.W. (kg) | 50 | |||
| DISPLAY & COMMUNICATION | ||||
| Display | App+LED/LCD(-Sversion) | |||
| Interface | RS485/WiFi/CAN(Optional:Bluetooth/LAN/4G/Meter) | |||
Product Features
Appliration Scenarios
Simple - efficient - safe - reliable
