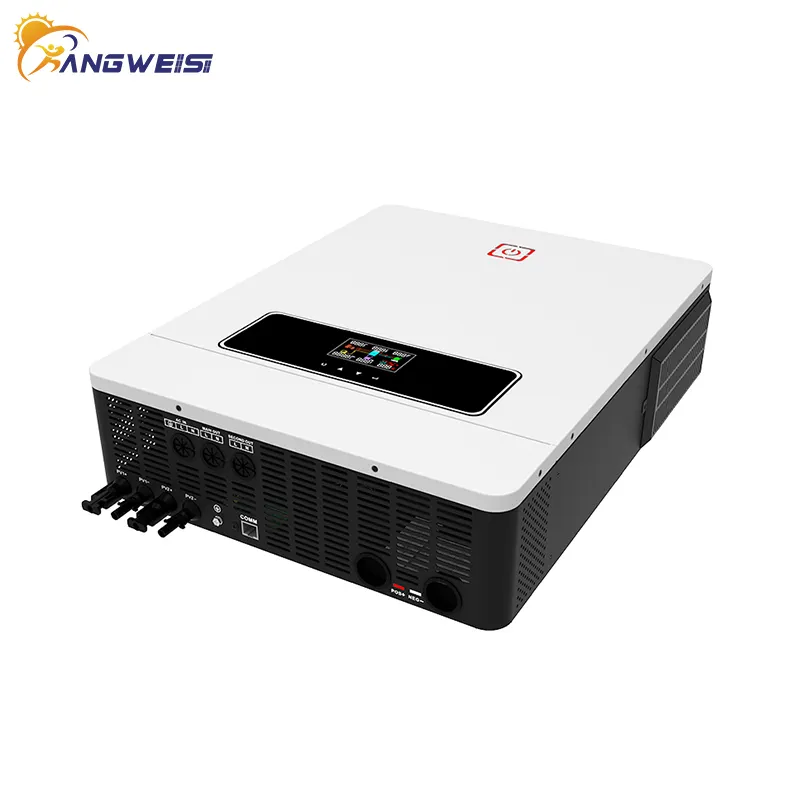

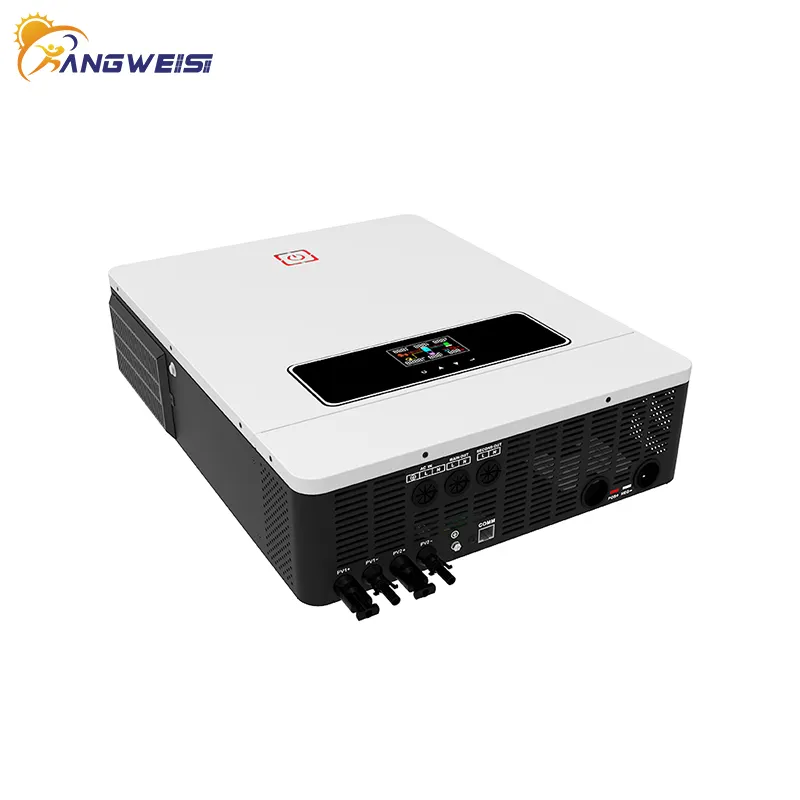

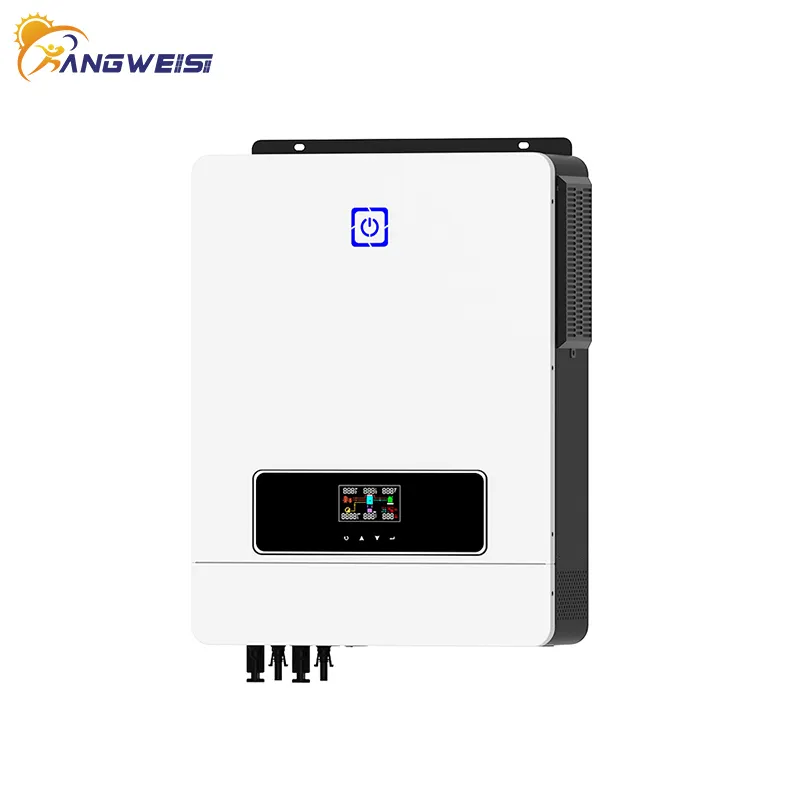

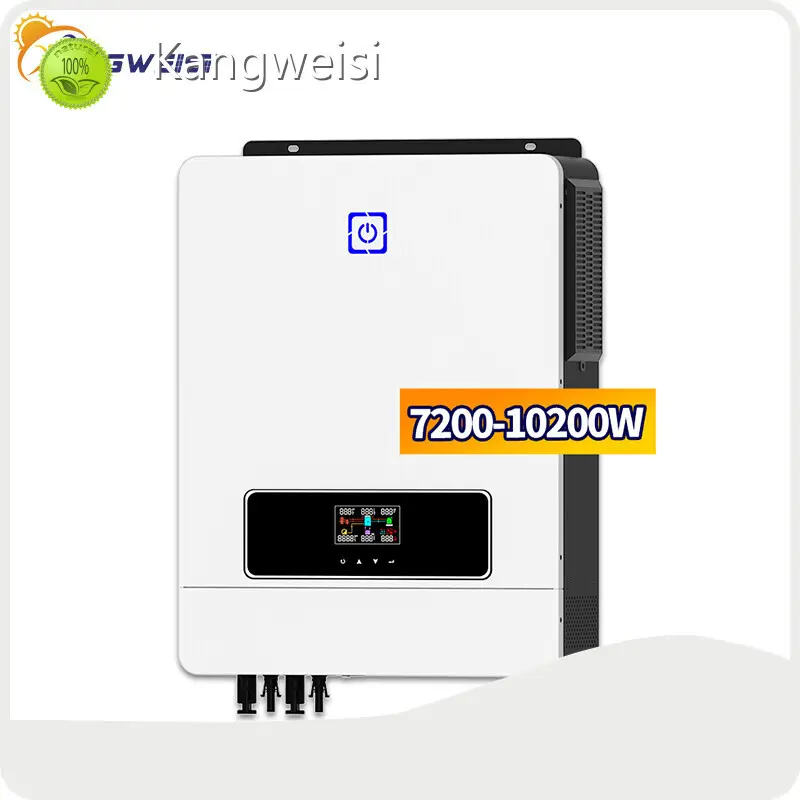

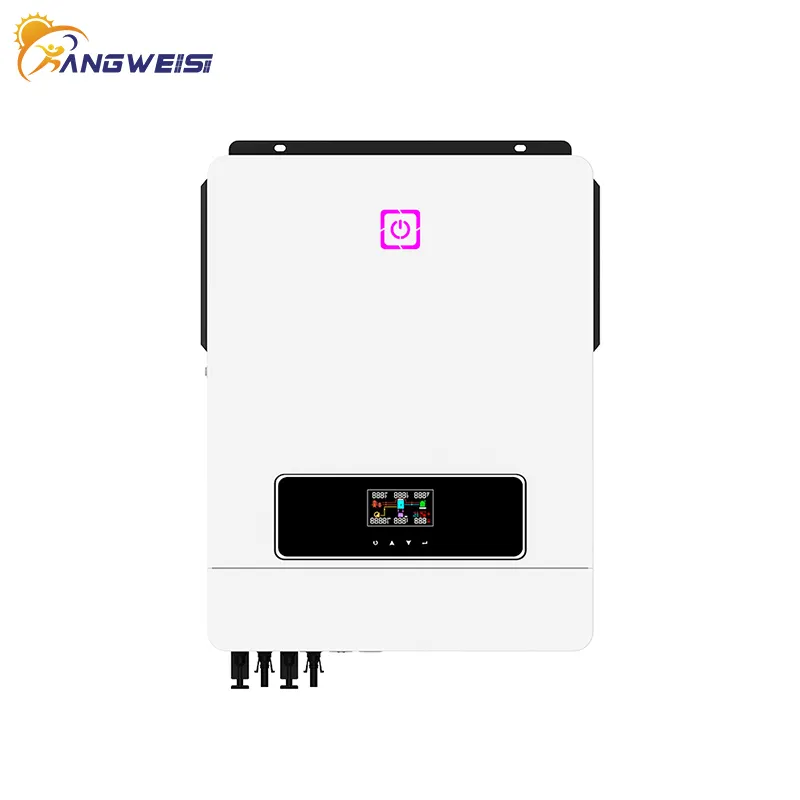

Product details of the hybrid inverter
Product Introduction
Kangweisi hybrid inverter is designed and created independently by our professional team. The product is user-friendly and has long-lasting performance. Shenzhen Kangweisi Technology Co., Ltd. has taken advantage of various means to promote the competitiveness of its hybrid inverter.
Product Parameters
Model |
KWS4870S160-H |
KWS4882S160-H |
KWS48102S160-H |
Rated Output Power |
7200W/7200VA |
8200W/8000VA |
10200W/10200VA |
Max. PV Input Power |
8200W |
8200W |
10200W |
Max. Solar Charging Current |
160A |
160A |
180A |
Grid Tie Operation |
|||
PV Input(DC) |
|||
Normal DC Voltage / Max. DC Voltage |
360VDC/500VDC |
||
Start-up Voltage / Initial Feeding Voltage |
90VDC/120VDC |
||
MPPT Voltage Range |
90VDC~450VDC |
||
Number of MPPT Tracker / Max. Input Current |
1/27A |
||
Grid Output(AC) |
|||
Nominal Output Voltage |
220/230/240VAC |
||
Output Voltage Range |
195~253VAC |
||
Nominal Output Current |
31.3A |
35.6A |
44.3A |
Power Factor |
>0.99 |
||
Feed-in Grid Frequency Range |
49~51±1HZ |
||
Efficiency |
|||
Max. Conversion Effeciency(DC/AC) |
98% |
||
Two Load Output Power |
|||
Full Load |
7200W |
8200W |
10200W |
Max. Main Load |
7500W |
8200W |
10200W |
Max. Second Load(Battery Mode) |
2400W |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
44VDC |
44VDC |
Main Load Return Voltage |
48VDC |
48VDC |
48VDC |
Off Grid Operation |
|||
AC Input |
|||
AC Start-up Voltage / Auto Restart Voltage |
120-140VAC/180VAC |
||
Acceptable Input Voltage Range |
90-280VAC/170-280VAC |
||
Max. AC Input Current |
40A |
40A |
50A |
Nominal Operatiing Frequency |
50/60HZ |
||
Super Power |
14400W |
16400W |
20400W |
PV Input(DC) |
|||
Max. DC Voltage |
500VDC |
||
MPPT Voltage Range |
90VDC~450VDC |
||
Number Of MPPT Tracker/Max. Input Current |
1/27A |
||
Battery Mode Output(AC) |
|||
Normal Output Voltage |
48VDC |
||
Output Waveform |
Pure Sine Wave |
||
Efficiency(DC to AC) |
94% |
||
Battery & Charger |
|||
Nominal DC Voltage |
48VDC |
||
Max. Solar Charging Current |
160A |
160A |
180A |
Max. AC Charging Current |
140A |
140A |
160A |
General |
|||
Physical |
|||
Product Dimension |
420*310*110mm |
||
Carton Dimension |
588*463*205mm |
||
Net Weight |
14.2KGS |
14.2KGS |
14.5KGS |
Gross Weight |
15.7KGS |
15.7KGS |
16KGS |
Interface |
|||
Communication Port |
RS23/EIFI/Remove LCD /GPRS |
||
Enviroment |
|||
Operating Temperature |
-10~50°C |
Product Features
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and AndroidInverter can run without batteryOne-key restoration to factory SettingsBuilt-in Lithium battery automatic activationBuilt-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
High PV input voltage range(90~ 500VDC)Built-in anti-dust kit for harsh environmentSmart battery charge design to optimize battery life

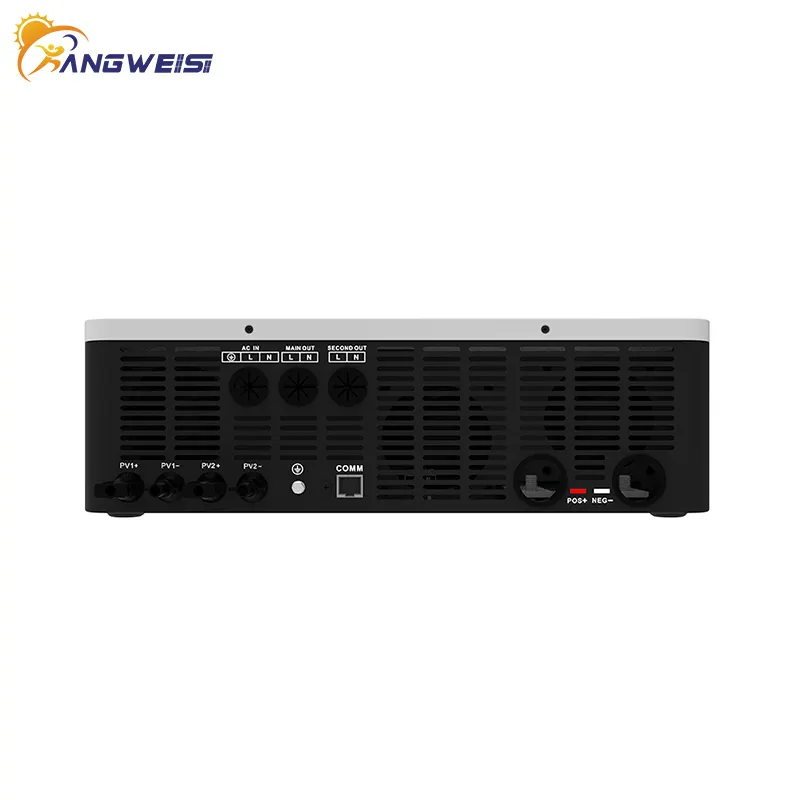

Dual output
Dual PV input
Touch button
On Off Grid Work Mode

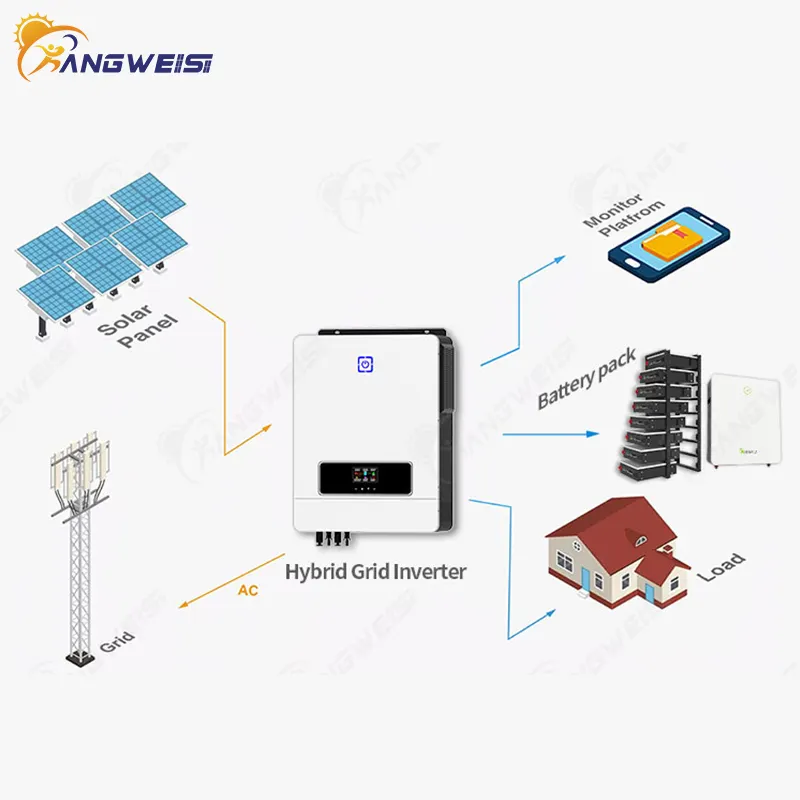

Appliration Scenarios
Simple - efficient - safe - reliable
Company Feature
• Kangweisi's location enjoys advantageous geographic condition with open and unimpeded traffic access. This creates convenience for us to deliver various in time.
• Since the inception in Kangweisi has gone through years of hard work. In the difficult exploration of 'theory-practice-reorganization-repractice', we have found out the right road of sustainable development in advantages of national policy. It lays a solid foundation for our future development.
• Our company actively develops domestic and international market and builds relevant sales channels according to the market position of the products.
• Our company owns the advanced production equipment and a group of scientific research experts who produce and process squat products. All this offers favorable conditions for us to produce high quality products.
Dear customer, if you have any questions about Kangweisi's products, please call us. Your contact, visit and cooperation are welcome.
