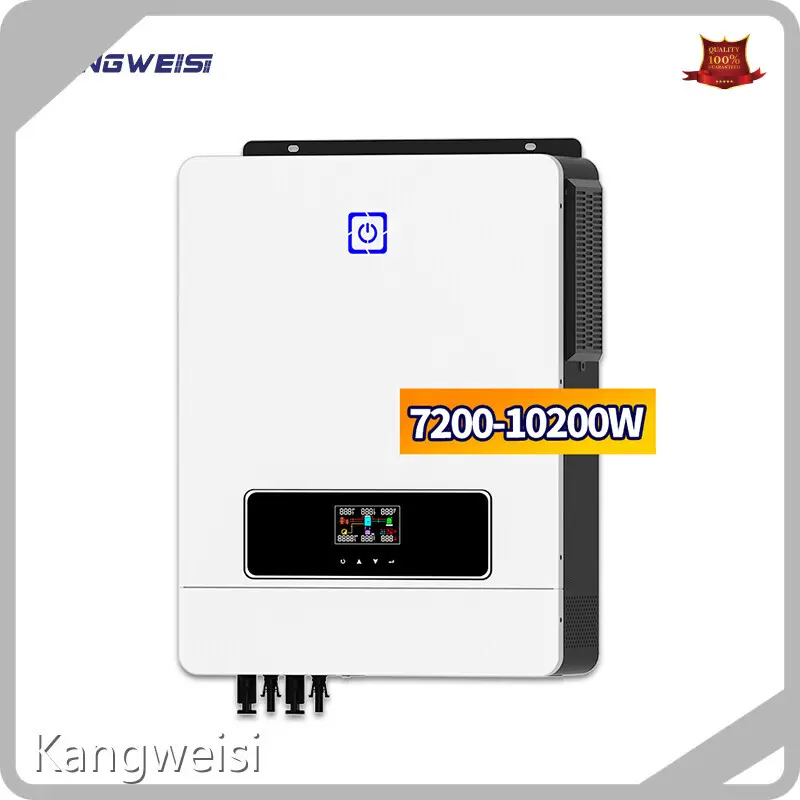

Solar Hybrid Inverter Hybrid-Grid Kangweisi TUV Custom L/C
Product details of the solar hybrid inverter
Product Overview
Many customers choose our solar hybrid inverter because of quality assurance. The product is in tune with set quality standards in many regions. solar hybrid inverter is one of the main products of Kangweisi. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers. The production of solar hybrid inverter is adjusted to the needs of customers to offer the quality assurance.
Product Information
Our company pursues superior quality. In the production process, we are dedicated to creating perfection in every detail.
Product Parameters
|
Model |
KWS4870S160-H |
KWS4882S160-H |
KWS48102S160-H |
|
Rated Output Power |
7200W/7200VA |
8200W/8000VA |
10200W/10200VA |
|
Max. PV Input Power |
8200W |
8200W |
10200W |
|
Max. Solar Charging Current |
160A |
160A |
180A |
|
Grid Tie Operation |
|||
|
PV Input(DC) |
|||
|
Normal DC Voltage / Max. DC Voltage |
360VDC/500VDC |
||
|
Start-up Voltage / Initial Feeding Voltage |
90VDC/120VDC |
||
|
MPPT Voltage Range |
90VDC~450VDC |
||
|
Number of MPPT Tracker / Max. Input Current |
1/27A |
||
|
Grid Output(AC) |
|||
|
Nominal Output Voltage |
220/230/240VAC |
||
|
Output Voltage Range |
195~253VAC |
||
|
Nominal Output Current |
31.3A |
35.6A |
44.3A |
|
Power Factor |
＞0.99 |
||
|
Feed-in Grid Frequency Range |
49~51±1HZ |
||
|
Efficiency |
|||
|
Max. Conversion Effeciency(DC/AC) |
98% |
||
|
Two Load Output Power |
|||
|
Full Load |
7200W |
8200W |
10200W |
|
Max. Main Load |
7500W |
8200W |
10200W |
|
Max. Second Load(Battery Mode) |
2400W |
2733W |
3400W |
|
Main Load Cut Off Voltage |
44VDC |
44VDC |
44VDC |
|
Main Load Return Voltage |
48VDC |
48VDC |
48VDC |
|
Off Grid Operation |
|||
|
AC Input |
|||
|
AC Start-up Voltage / Auto Restart Voltage |
120-140VAC/180VAC |
||
|
Acceptable Input Voltage Range |
90-280VAC/170-280VAC |
||
|
Max. AC Input Current |
40A |
40A |
50A |
|
Nominal Operatiing Frequency |
50/60HZ |
||
|
Super Power |
14400W |
16400W |
20400W |
|
PV Input(DC) |
|||
|
Max. DC Voltage |
500VDC |
||
|
MPPT Voltage Range |
90VDC~450VDC |
||
|
Number Of MPPT Tracker/Max. Input Current |
1/27A |
||
|
Battery Mode Output(AC) |
|||
|
Normal Output Voltage |
48VDC |
||
|
Output Waveform |
Pure Sine Wave |
||
|
Efficiency(DC to AC) |
94% |
||
|
Battery & Charger |
|||
|
Nominal DC Voltage |
48VDC |
||
|
Max. Solar Charging Current |
160A |
160A |
180A |
|
Max. AC Charging Current |
140A |
140A |
160A |
|
General |
|||
|
Physical |
|||
|
Product Dimension |
420*310*110mm |
||
|
Carton Dimension |
588*463*205mm |
||
|
Net Weight |
14.2KGS |
14.2KGS |
14.5KGS |
|
Gross Weight |
15.7KGS |
15.7KGS |
16KGS |
|
Interface |
|||
|
Communication Port |
RS23/EIFI/Remove LCD /GPRS |
||
|
Enviroment |
|||
|
Operating Temperature |
-10~50°C |
||
Product Features
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and AndroidInverter can run without batteryOne-key restoration to factory SettingsBuilt-in Lithium battery automatic activationBuilt-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
High PV input voltage range(90~ 500VDC)Built-in anti-dust kit for harsh environmentSmart battery charge design to optimize battery life
Dual output
Dual PV input
Touch button
On Off Grid Work Mode
Appliration Scenarios
Simple - efficient - safe - reliable
Company Advantages
Kangweisi is now a global brand featuring the production of solar hybrid inverter. Shenzhen Kangweisi Technology Co., Ltd. has established research center for engineering of solar hybrid inverter. We continue to improve the quality of solar hybrid inverter and seek better development. Call!
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
