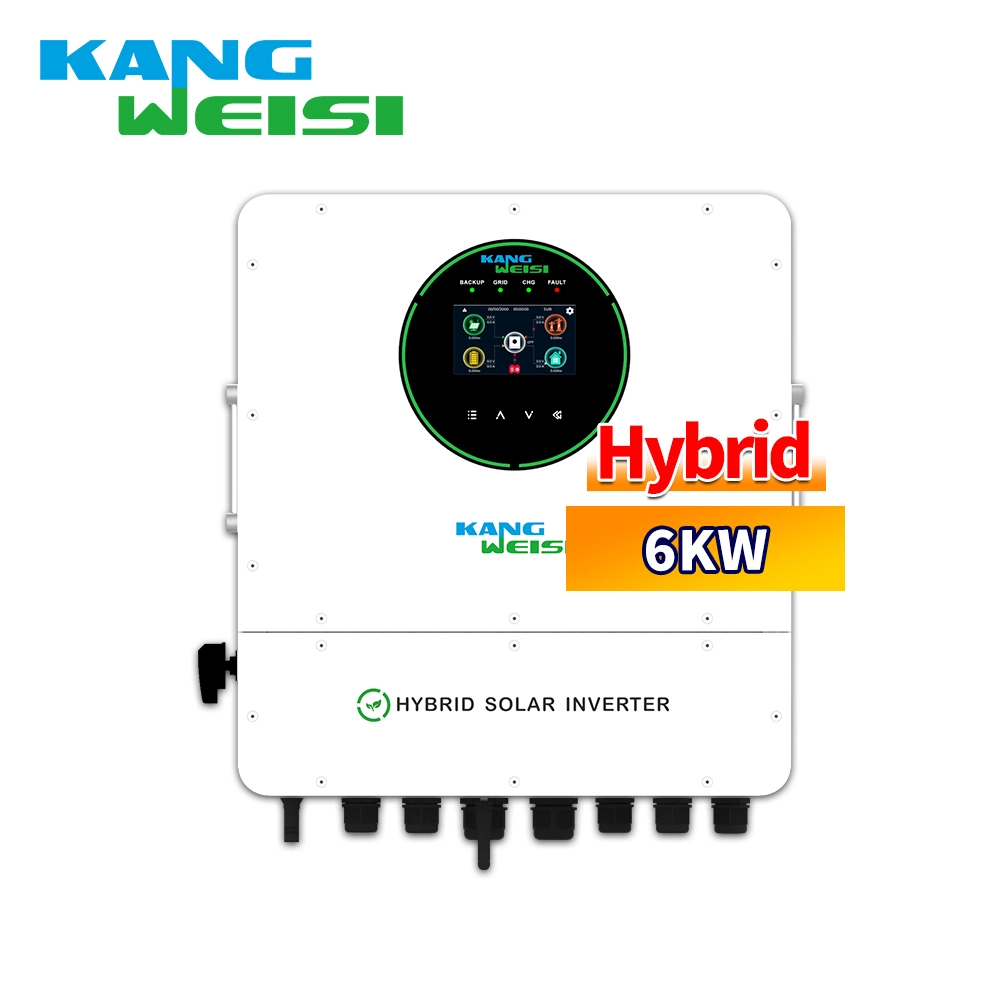

PV inverter home use 6000W solar power inverter 220v single phase hybrid inverter 6-12kw solar inverter
Model:
KHY 6000TL-48SG
Battery Type:
48V
Type:
Hybrid inverter
Inverter Power:
6000W
Output Voltage:
220/230V
Certificate:
TUV, ETL, ISO, CE
Payment:
T/T, Western Union
Warranty:
Official website query
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Parameters
| Model | KHY 6000TL-48SG | KHY 8000TL-48SG | KHY 10000TL-48SG | KHY 12000TL-48SG |
| Phase | 1-phase in/1-phase out | |||
| Maximum PV Input Power | 9000w | 13500V | 16200W | 16200W |
| Rated Output Power | 6000W | 8000W | 10000W | 12000IV |
| Maximum Charging Power | 6000W | 8000w | 10000w | 12000w |
| GRID-TIED OPERATION PV INPUT(DC) |
||||
| PV INPUT(DC) | ||||
| Maximum DC Voltage | 520Vdc | |||
| Start-up Voltage/lnitial Feeding Voltage | 90Vdc/120Vdc | |||
| MPPT Voltage Range | 50-450Vdc | |||
| Number of MPPT Trackers/Maximum Input Current | 2/18A 2/18A+36A | 2/18A+36A | 2/18A+36A | |
| GRID OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Voltage Range | 184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) | |||
| Nominal Output Current | 26.1A 34.8A | 43.5A | 52.2A | |
| Power Factor | >0.99 | |||
| EFFICIENCY | ||||
| Maximum Conversion Efficiency(DCIAC) | 97% | |||
| OFF-GRID OPERATION | ||||
| AC INPUT | ||||
| AC Start-up Voltage /Auto Restart Voltage | 120-140VAC/180VAC | |||
| Acceptable Input Voltage Range | 90-280VAC | |||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |||
| Maximum AC Input Current | 40A | 50A | 60A | 70A |
| PV INPUT(DC) | ||||
| Maximum DC Voltage | 520Vdc | |||
| MPPT Voltage Range | 50Vdc-450Vdc | |||
| Number Of MPPT Trackers/Maximum Input Current | 2/18A 2/18A+36A | 2/18A+36A | 2/18A+36A | |
| BATTERY MODE OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Waveform | Pure sine wave | |||
| Efficiency(DC to AC) | 93% | |||
| HYBRID OPERATION | ||||
| PV INPUT(DC) | ||||
| Maximum DC Voltage | 520Vdc | |||
| Start-Up Voltage/lnitial Feeding Voltage | 90Vdc/120Vdc | |||
| MPPT Voltage Range | 50Vdc-450Vdc | |||
| Number Of MPPT Trackers/Maximum Input Current | 2/18A | 2/18A+36A | 2/18A+36A | 2/18A+36A |
| GRID OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Voltage Range | 184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) | |||
| Nominal Output Current | 26.1A | 34.8A | 43.5A | 52.2A |
| AC INPUT | ||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
| Maximum AC Input Current | 40A | 50A | 60A | 70A |
| BATTERY MODE OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Efficiency(DC to AC) | 93% | |||
| BATTERY & CHARGER | ||||
| Nominal DC Voltage | 48Vdc | |||
| Maximum Solar Charging Current | 135A | 190A | 220A | 250A |
| Maximum AC Charging Current | 135A | 190A | 220A | 250A |
| Maximum Charging Current | 135A | 190A | 220A | 250A |
| GENERAL | ||||
| PHYSICAL | ||||
| Dimension,DxWxH(mm) | 521×470×236 | 600x483×260 | ||
| Net Weight(kg) | 27.5 | 38 | 42 | 45 |
| INTERFACE | ||||
| Parallel Function | Yes,9 units | |||
| Communication Port | RS232/RS485/CAN/WiFi/Drycontact | |||
| ENVIRONMENT | ||||
| Humidity | 5%to 95%Relative Humidity(Non-condensing) | |||
| IP degree | IP65 | |||
| Operating Temperature | -10℃~50℃ | |||
| Storage Temperature | -15℃~60℃ | |||
Product About
Product Features
Appliration Scenarios
Simple - efficient - safe - reliable
