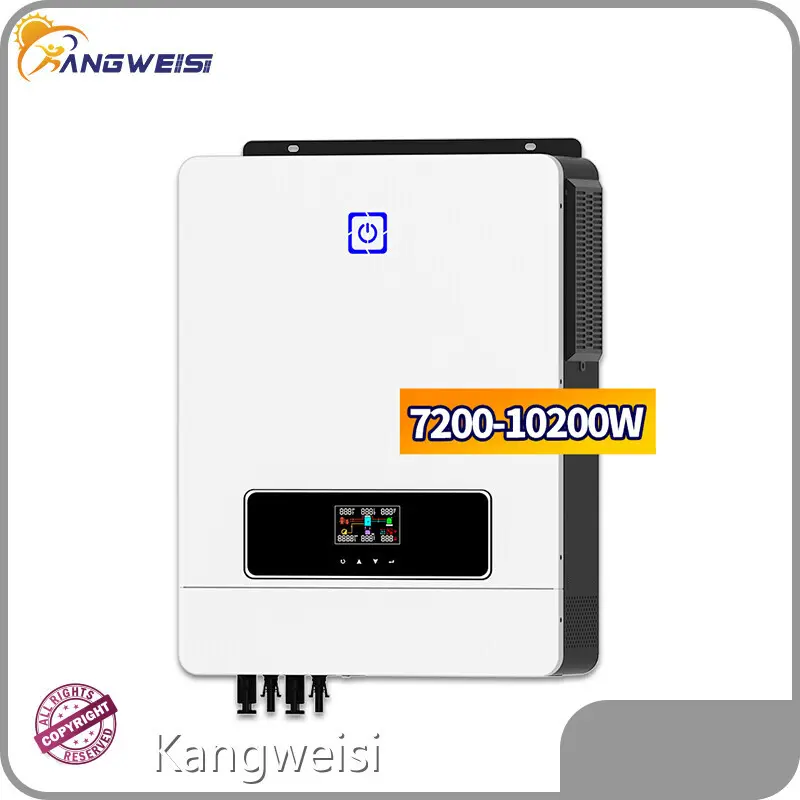

Hybrid Inverter Solar L/C EU and US Standard Kangweisi Company
Product details of the hybrid inverter solar
Product Introduction
With the durable quality, hybrid inverter solar is greatly popular among customers. The product has high reliability, good performance and low cost. After many years of development, Shenzhen Kangweisi Technology Co., Ltd. has been recognized by customers for its good reputation and excellent quality.
Product Parameters
|
Model |
KWS4870S160-H |
KWS4882S160-H |
KWS48102S160-H |
|
Rated Output Power |
7200W/7200VA |
8200W/8000VA |
10200W/10200VA |
|
Max. PV Input Power |
8200W |
8200W |
10200W |
|
Max. Solar Charging Current |
160A |
160A |
180A |
|
Grid Tie Operation |
|||
|
PV Input(DC) |
|||
|
Normal DC Voltage / Max. DC Voltage |
360VDC/500VDC |
||
|
Start-up Voltage / Initial Feeding Voltage |
90VDC/120VDC |
||
|
MPPT Voltage Range |
90VDC~450VDC |
||
|
Number of MPPT Tracker / Max. Input Current |
1/27A |
||
|
Grid Output(AC) |
|||
|
Nominal Output Voltage |
220/230/240VAC |
||
|
Output Voltage Range |
195~253VAC |
||
|
Nominal Output Current |
31.3A |
35.6A |
44.3A |
|
Power Factor |
＞0.99 |
||
|
Feed-in Grid Frequency Range |
49~51±1HZ |
||
|
Efficiency |
|||
|
Max. Conversion Effeciency(DC/AC) |
98% |
||
|
Two Load Output Power |
|||
|
Full Load |
7200W |
8200W |
10200W |
|
Max. Main Load |
7500W |
8200W |
10200W |
|
Max. Second Load(Battery Mode) |
2400W |
2733W |
3400W |
|
Main Load Cut Off Voltage |
44VDC |
44VDC |
44VDC |
|
Main Load Return Voltage |
48VDC |
48VDC |
48VDC |
|
Off Grid Operation |
|||
|
AC Input |
|||
|
AC Start-up Voltage / Auto Restart Voltage |
120-140VAC/180VAC |
||
|
Acceptable Input Voltage Range |
90-280VAC/170-280VAC |
||
|
Max. AC Input Current |
40A |
40A |
50A |
|
Nominal Operatiing Frequency |
50/60HZ |
||
|
Super Power |
14400W |
16400W |
20400W |
|
PV Input(DC) |
|||
|
Max. DC Voltage |
500VDC |
||
|
MPPT Voltage Range |
90VDC~450VDC |
||
|
Number Of MPPT Tracker/Max. Input Current |
1/27A |
||
|
Battery Mode Output(AC) |
|||
|
Normal Output Voltage |
48VDC |
||
|
Output Waveform |
Pure Sine Wave |
||
|
Efficiency(DC to AC) |
94% |
||
|
Battery & Charger |
|||
|
Nominal DC Voltage |
48VDC |
||
|
Max. Solar Charging Current |
160A |
160A |
180A |
|
Max. AC Charging Current |
140A |
140A |
160A |
|
General |
|||
|
Physical |
|||
|
Product Dimension |
420*310*110mm |
||
|
Carton Dimension |
588*463*205mm |
||
|
Net Weight |
14.2KGS |
14.2KGS |
14.5KGS |
|
Gross Weight |
15.7KGS |
15.7KGS |
16KGS |
|
Interface |
|||
|
Communication Port |
RS23/EIFI/Remove LCD /GPRS |
||
|
Enviroment |
|||
|
Operating Temperature |
-10~50°C |
||
Product Features
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and AndroidInverter can run without batteryOne-key restoration to factory SettingsBuilt-in Lithium battery automatic activationBuilt-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
High PV input voltage range(90~ 500VDC)Built-in anti-dust kit for harsh environmentSmart battery charge design to optimize battery life
Dual output
Dual PV input
Touch button
On Off Grid Work Mode
Appliration Scenarios
Simple - efficient - safe - reliable
