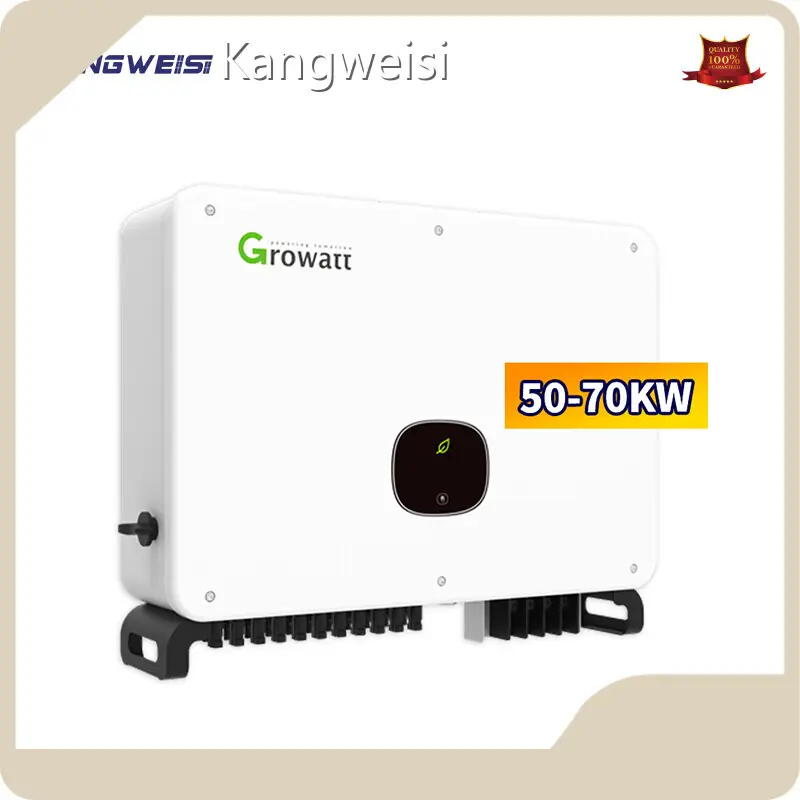

Kangweisi on Off Grid Inverter TUV On-Grid
Product details of the on off grid inverter
Quick Overview
The new type of on off grid inverter designed by our engineers is very ingenious and practical. The product performs well with great efficiency. The high quality of on off grid inverter will secure their leading status in the market place.
Product Information
Supported by advanced technology, our on off grid inverter has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.
Product Parameters
|
Datasheet |
50KTL3-X MV/LV |
60KTL3-X MV/LV |
66KTL3-X MV/LV |
70KTL3-X MV/LV |
|
Input Data (DC) |
||||
|
Max. recommended PV power(for module STC) |
75000W |
90000W |
99000W |
10500W |
|
Max. DC voltage |
1100V |
|||
|
Start voltage |
250V |
|||
|
Nominal voltage |
700V |
|||
|
MPPT voltage range |
200V-1000V |
|||
|
No. of MPP trackers |
3 |
|||
|
No. of PV strings per MPP tracker |
4/3/3 |
4/4/4 |
4/4/4 |
4/4/4 |
|
Max. input current per MPP tracker |
50A/37.5A/37.5A |
50A/50A/50A |
50A/50A/50A |
50A/50A/50A |
|
Max. short-circuit currentper MPP tracker |
55A |
|||
|
Output Data(AC) |
||||
|
AC nominal power |
50000W |
60000W |
66000W |
70000W |
|
Max. AC apparent power |
55500VA |
66600VA |
73300VA |
77700VA |
|
Nominal AC voltage(range*) |
277V/480V (425-540V) |
|||
|
AC grid frequency(range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
|||
|
Max. output current |
66.9A |
80.2A |
88.2A |
93.6A |
Features
Efficient power generation
- Maximum efficiency 98.8 per cent
- MPPT current 64A/48A/48A, suitable for 182/210 modules.
- Supports 1.5 times over-allocation on the DC side.
Safe and Reliable
- AC and DC secondary lightning protection
- Protection grade IP66
- Optional AFCI function and anti-PID function.
- String monitoring and IV curve scanning to accurately locate abnormal strings.
Cost Saving
- Support 70mm² aluminium cable access, saving AC cable cost.
- Intelligent online operation and maintenance saves costs
Appliration Scenarios
Simple - efficient - safe - reliable
